Front Indicators
Table A-2 Fan Module Status LED States
LED State
Green
Red
Table A-3 Power Supply Status LED States
LED State
Off
Green
Red
A.1.2

Port Indicators

Port LEDs, located in the vicinity of their corresponding ports, provide link and operational status.
Figure A-2
locations of all switches covered by this guide.

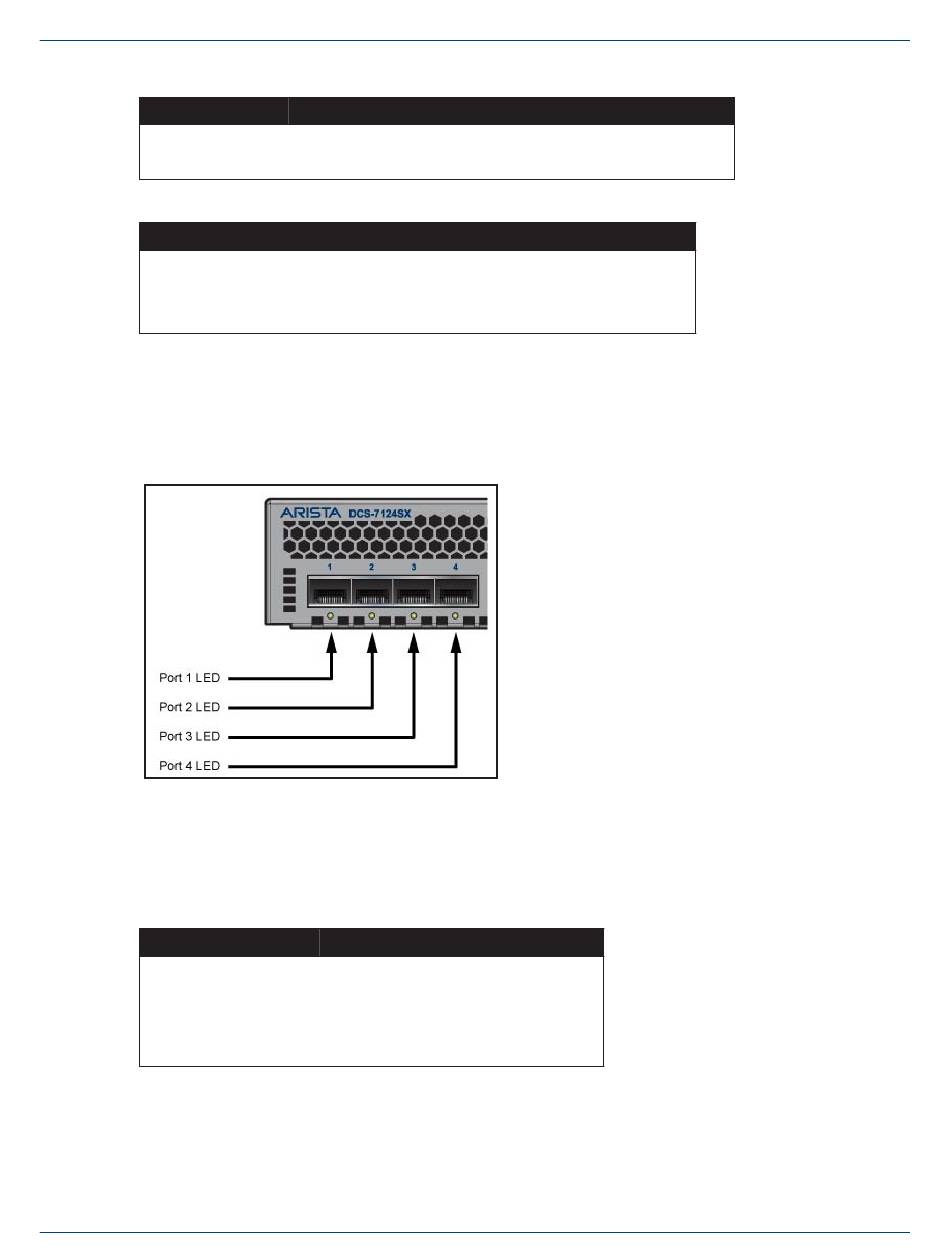

Figure A-2: Port LEDs
Table A-4 provides status conditions that correspond to port LED states. Port LED behavior for QSFP+
and SFP+ ports is consistent.
Table A-4 Port LED States
LED State
Off
Green
Yellow
Flashing Yellow
22
Status
All fans are operating normally.
One or more fans are not inserted or have failed.
Status
Power supply is not inserted or is not powered.
Power supply operating normally.
Power supply has failed.
displays the Port LED location on the 7124SX switch.
Status
Port link is down.
Port link is up.
Port is software disabled.
Port failed diagnostics.
