Cabling the Switch
4.1
Connecting Power Cables
Important! Installation of this equipment must comply with local and national electrical codes. If necessary, consult
with the appropriate regulatory agencies and inspection authorities to ensure compliance.
The switch operates with two installed power supplies. At least one power supply must connect to a
power source. Two circuits provide redundancy protection.
power supplies on the rear panel of the switch.
Important! Read all installation instructions before connecting the system to the power source.
•
Non-Redundant Configuration: Connect power to either of the two power supplies.
•
Redundant Power Supply Configuration: Connect power to both power supplies.
•
Power down the Switch: Remove all power cords and wires from the power supplies.
Important! This equipment must be grounded. Never defeat the ground conductor.
Important! This unit requires overcurrent protection.
4.1.1
AC Power Supply
The AC power supply connects to a circuit that provides 100-240 VAC, 50 or 60 Hz, and 5.29-2.2 A.
Figure 4-1
The power supplies require power cables that comply with IEC-320 and have a C13 plug. The
accessory kit provides two IEC-320 C13 to C14 power cables, each two meters long.

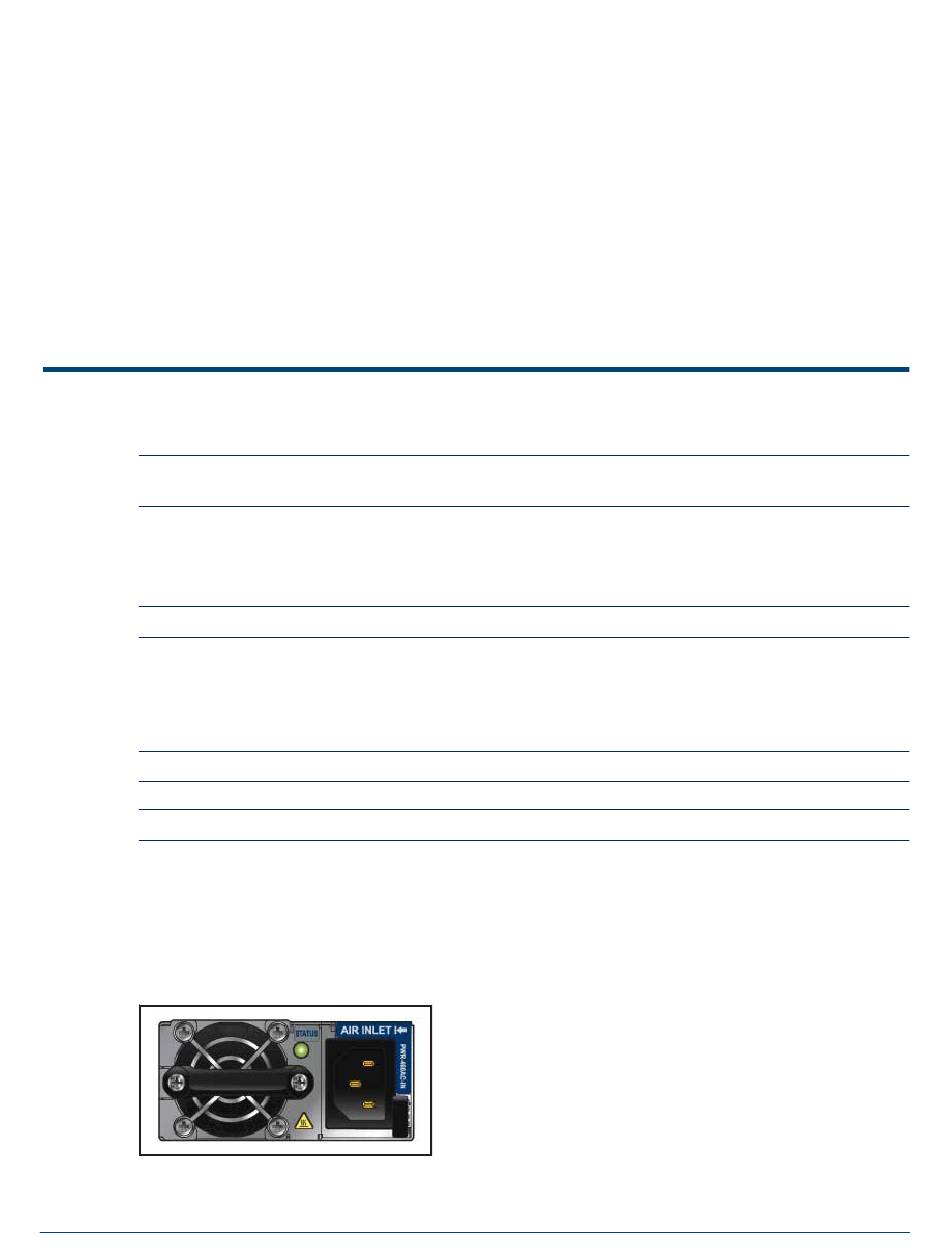

Figure 4-1: AC Power Supply
Quick Start Guide: 7000 Series 1 RU-Gen 2 Data Center Switches
displays an AC power supply, including the power socket on the right side of the module.
Chapter 4
Appendix D
displays the location of the
15
