- Page 1 Quick Start Guide 7060 Series 1 RU (Gen 3) Data Center Switches Arista Networks www.arista.com PDOC-00142-03...
- Page 2 © Copyright 2022 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.
-
Page 3: Table Of Contents
Contents Contents Chapter 1: Overview................1 1.1 Scope............................1 1.2 Receiving and Inspecting the Equipment................1 1.3 Installation Process.........................1 1.4 Safety Information........................2 1.5 Obtaining Technical Assistance..................... 2 1.6 Specifications.......................... 3 Chapter 2: Preparation................5 2.1 Site Selection..........................5 2.2 Tools and Parts Required for Installation................6 2.3 Electrostatic Discharge (ESD) Precautions................ - Page 4 Appendix C: Front Panel..............33 Appendix D: Rear Panel............... 35 Appendix E: Maintenance and Field Replacement......37 E.1 Considerations........................37 E.2 Power Supplies........................37 E.2.1 Removing a Power Supply..................37 E.2.2 Installing a Power Supply..................38 E.3 Fan Modules.........................38 E.3.1 Removing a Fan Module..................38 E.3.2 Installing a Fan Module..................39 Appendix F: Regulatory Model Numbers..........41 Appendix G: Taiwan RoHS Information..........
-
Page 5: Chapter 1: Overview

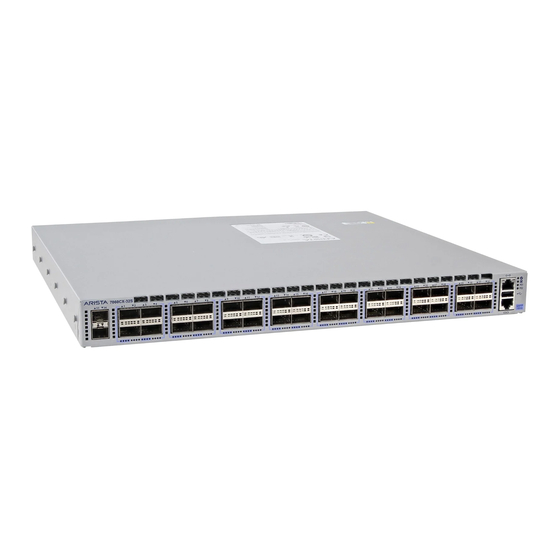

• Specifications The Arista 7060X and 7260X Series are a range of 1RU and 2RU high performance 25G, 40G, 100G and 400G high density, fixed configuration, data center switches with wire speed layer 2 and layer 3 features, and advanced features for software driven cloud networking. The Arista 7060X and 7260X deliver a rich choice of interface speed and density allowing networks to seamlessly evolve from 10G/40G to 25G/100G and 200G/400G. -
Page 6: Safety Information
Refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. Obtaining Technical Assistance Any customer, partner, reseller or distributor holding a valid Arista Service Contract can obtain technical support in any of the following ways: •... -
Page 7: Specifications
Overview A support case may be created through the support portal on our website. You may also download the most current software and documentation, as well as view FAQs, Knowledge Base articles, Security Advisories, and Field Notices. • Phone: +1 866-476-0000 or +1 408-547-5502. Important: No user serviceable parts inside. - Page 8 Table 4: Switch Specifications (Power Draw) Switch Power Draw (Typical / Supported Power Supply Maximum) DCS-7060CX-32S 220 W / 410 W PWR-500AC PWR-500-DC DCS-7060CX2-32S 220 W / 410 W PWR-500AC PWR-500-DC DCS-7060SX2-48YC6 240 W / 385 W PWR-500AC PWR-500-DC DCS-7060PX4-32 640 W / 915 W PWR-1611-AC-RED DCS-7060DX4-32...
-
Page 9: Chapter 2: Preparation
Chapter 2 Preparation The following topics are covered in this section: • Site Selection • Tools and Parts Required for Installation • Electrostatic Discharge (ESD) Precautions Site Selection The following criteria should be considered when selecting a site to install the switch: •... -
Page 10: Tools And Parts Required For Installation
Two circuits provide redundancy protection. Grounding the Switch describes power cable requirements. Figure 1: Airflow Direction Labels 1 PSU 1 label 3 Fan module 2 handle 5 Fan module 4 handle 2 Fan module 1 handle 4 Fan module 3 handle 6 PSU 2 label Note: Handle or label color indicates airflow direction. -
Page 11: Electrostatic Discharge (Esd) Precautions
Preparation Accessory kit does not include screws for attaching the switch to the equipment rack. When installing the switch into an equipment rack with unthreaded post holes, nuts are also required to secure the switch to the rack posts. Electrostatic Discharge (ESD) Precautions Observe these guidelines to avoid ESD damage when installing or servicing the switch. -
Page 13: Chapter 3: Rack Mounting The Switch
Chapter 3 Rack Mounting the Switch The following topics are covered in this section: • Two-Post Rack Mount • Four-Post Rack Mount Important: The rack mounting procedure is identical for all switches covered by this guide. Illustrations in this chapter depict the mounting of a DCS-7050QX-32S switch. Les procédure de montage du bâti est identique pour tous les commutateurs visés par ce guide. -
Page 14: Inserting The Switch Into The Rack
Figure 3: Improper Bracket Mount Eamples for Two-Post Rack Mount 3. Slide the Bracket Toward the front Flange until the bracket clip locks with an audiable click. Figure 4: Attaching the Mounting Brackets to the Switch Chassis 1 Step 1 4 Bracket clip (attached) 2 Step 2 5 Bracket clip (aligned) -
Page 15: Four-Post Rack Mount
Rack Mounting the Switch 3. Attach the bracket flanges to the rack posts. Figure 5: Inserting the Switch into the Rack After completing the two-post rack mount, proceed to Cabling the Switch. Four-Post Rack Mount The switch is mounted onto a four-post rack by assembling two rails onto the rear posts, sliding the switch onto the rails, then securing the switch to the front posts. -
Page 16: Attaching Mounting Brackets To The Chassis
Figure 6: Bracket Mount Examples for Four-Post Rack Mount displays proper bracket mount configuration examples. Figure 7: Improper Bracket Mount Example for Four-Post Rack Mount displays an improper bracket mount configuration example. Figure 6: Bracket Mount Examples for Four-Post Rack Mount Figure 7: Improper Bracket Mount Example for Four-Post Rack Mount 1 Bracket not attached by at least 5 pins... -
Page 17: Assembling The Rails Onto The Equipment Rack
Rack Mounting the Switch To remove the mounting bracket from the chassis, lift the front edge of the mounting bracket clip with a flathead screwdriver and slide the bracket away from the front flange (opposite from the installation direction). Assembling the Rails onto the Equipment Rack 3.2.2 Rail-rods and rail-slides assemble into two identical rails. -
Page 18: Attaching The Switch To The Rack
2. Attach rail to the right rear rack post by inserting rod-end rack plugs into post slots (Attaching the Rails - Inset A). The slide assembly must be inside the right posts, relative to the left rack posts. If the rack plugs were previously removed, use bolts to attach the rail to the rack. 3. - Page 19 Rack Mounting the Switch 1. Lift the switch into the rack and insert the mounting brackets into the slide rails (Figure 12: Inserting the Switch onto the Rails). Figure 12: Inserting the Switch onto the Rails 2. Slide the switch on the rails, toward the rear posts, until the mounting bracket flanges are flush with the rail flanges attached to the rack posts.
-
Page 21: Chapter 4: Cabling The Switch
Chapter 4 Cabling the Switch The following topics are covered in this section: • Grounding the Switch • Connecting Power Cables • Connecting Serial and Management Cables Grounding the Switch After mounting the switch into the rack, connect the switch to the data center ground. Figure 14: Earth Grounding Pad Sockets for Models without Management Ports on the Rear Panel displays the... -
Page 22: Connecting Power Cables
Figure 16: DCS-7060PX4-32 and DCS-7060DX4-32 Rear Panel 1 Power supply module 1 6 Fan module 5 11 Fan module 3 status LED 2 Fan module 1 7 PSU 2 12 Fan module 2 status LED 3 Fan module 2 8 PSU 2 status LED 13 Fan module 1 status LED 4 Fan module 3 9 Fan module 5 status LED... -
Page 23: Ac Power Supplies
Cabling the Switch AC Power Supplies 4.2.1 The following AC power supplies are supported. • PWR-500AC • PWR-1611-AC-RED Figure 17: AC Power Supply displays the two AC power supplies, including the power socket on the left side of the module. The AC power supply connects to a circuit that provides the required power, as specified by Table 4: Switch Specifications (Power Draw). -
Page 24: Connecting The Pwr-500-Dc Power Supply
Important: A disconnect device must be provided as part of the installation. Un dispositif de sectionnement doit être fourni dans le cadre de l'installation. Important: Ensure power is removed from DC circuits before performing any installation actions. Locate the disconnect device, circuit breakers or fuses on DC power lines servicing the circuits. -
Page 25: Connecting Serial And Management Cables
Cabling the Switch d. Torque the screws to 1.0 N·m / 9 in·lb. Important: Apply the ground connection first during installation and remove last when removing power. Appliquer le motif connexion tout d’abord pendant l’installation et supprimer dernière lors du retrait de puissance. e. - Page 26 Figure 19: Console, Management, and USB Ports displays the console, management, and USB ports in a representative configuration. Some earlier devices have ports where the USB port is located slightly differently. Figure 19: Console, Management, and USB Ports 1 System status LED 3 Activity status LED 5 USB port 2 Ethernet management port...
-
Page 27: Chapter 5: Configuring The Switch
Chapter 5 Configuring the Switch Arista switches ship from the factory in Zero Touch Provisioning (ZTP) mode. ZTP configures the switch without user intervention by downloading a startup configuration file or a boot script from a location specified by a DHCP server. To manually configure a switch, ZTP is bypassed. The initial configuration provides one username (admin) accessible only through the console port because it has no password. - Page 28 11. When the management port IP address is configured, use this command to access the switch from a host, using the address configured in Step 9: ssh admin@192.0.2.8 Refer to the Arista Networks User Manual for complete switch configuration information.
-
Page 29: Appendix A: Status Indicators
Appendix A Status Indicators The following topics are covered in this section: • Front Indicators • Rear Status Indicators Front Indicators A.1.1 Switch Indicators Front panel LEDs are located on the right side of the chassis and display system, fan, and power supply status. - Page 30 Table 6: Switch Indicators LED States (Front) LED Name LED State Device Status System Status LED Blinking Green System is powering up. Green Normal operations. Due to power supply and fan redundancy, this LED will remain green if a single fan or power supply is missing or in a failed state.
-
Page 31: Port Indicators
Status Indicators A.1.2 Port Indicators Port LEDs, located in the vicinity of their corresponding ports, provide link and operational status. Figure 22: Port LEDs displays the Port LED location on the DCS-7050QX-32S switch. Figure 22: Port LEDs 1 Port 1 LEDs 3 Port 3 LEDs 2 Port 2 LEDs 4 Port 4 LEDs... - Page 32 Fan module status LEDs are on the fan modules, as displayed in Figure 23: Fan Status LED. Figure 23: Fan Status LED 1 Fan module status LED Table 8: Fan Status LED States (Rear) provides status conditions that correspond to fan module status LED states.
- Page 33 Status Indicators Table 9: AC Power Supply Status LED States (Rear) provides status conditions that correspond to the AC power supply status LED states. Table 9: AC Power Supply Status LED States (Rear) Power Supply State PWR-500AC-F PWR-500AC-R Input power present Normal operation Green Input power present Power Supply Yellow...
- Page 34 Note: You can narrow down the error condition by logging in to the switch to view the specific device state. Refer to the Arista User Manual’s Switch Environment Control chapter, under the topic Viewing Environment Status, for further information on the show...
-
Page 35: Appendix B: Parts List
Appendix B Parts List The following topics are covered in this section: • Rack Mount Parts • Cables Each switch provides an accessory kit that contains parts that are required to install the switch. This appendix lists the installation parts contained in the switch accessory kit. Rack Mount Parts B.1.1 Four-Post Rack Mount Parts... -
Page 36: Cables
Cables Quantity Description Power cables: IEC-320/C13- C14, 13 A, 250 V RJ-45 Patch Panel Cable RJ-45 to DB9 Adapter Cable Warning: All provided power cables are for use only with Arista products. -
Page 37: Appendix C: Front Panel
Appendix C Front Panel This appendix displays the front panel of all switches covered by this guide. Note: All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on the PSU and the fan modules used. Figure 28: DCS-7060CX-32S 1 Ethernet management port 4 Power supply 1 status LED... - Page 38 Figure 30: DCS-7060SX2-48YC6 1 System status LED 3 Power supply 1 status LED 2 Fan status LED 4 Power supply 2 status LED Figure 31: DCS-7060PX4-32 1 System status LED 3 Power supply 1 status LED 2 Fan status LED 4 Power supply 2 status LED Figure 32: DCS-7060DX4-32, DCS-7060DX4-32S 1 System status LED...
-
Page 39: Appendix D: Rear Panel
Appendix D Rear Panel All switches covered by this guide use one of the rear panels shown below. Depending on the installed power supply module, the appearance could be different from those shown. Note: All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on the PSU and the fan modules used. - Page 40 Figure 35: DCS-7060PX4-32 and DCS-7060DX4-32 Rear Panel 1 Power supply module 1 6 Fan module 5 11 Fan module 3 status LED 2 Fan module 1 7 PSU 2 12 Fan module 2 status LED 3 Fan module 2 8 PSU 2 status LED 13 Fan module 1 status LED 4 Fan module 3 9 Fan module 5 status LED...
-
Page 41: Appendix E: Maintenance And Field Replacement
All slots must be filled or covered with a blank for operation (even though power supply or fans may not be functional). • Before you begin, refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. Note: Descriptions for the removal and replacement of power supplies and fans are for a representative power supply or fan. -
Page 42: Installing A Power Supply
E.2.2 Installing a Power Supply You must make space for installing the power supply by removing an existing one (Removing a Power Supply). 1. Remove the replacement power supply from its packaging. 2. Slide the new power supply into the empty slot. 3. -
Page 43: Installing A Fan Module
Maintenance and Field Replacement 2. Push the fan module release lever and slide the fan module out of the switch (Figure 37: Removing Module). Figure 37: Removing Fan Module 1 Release lever Installing a Fan Module E.3.2 You must make space for installing the fan module by removing an existing one (Removing a Module). -
Page 45: Appendix F: Regulatory Model Numbers
Appendix F Regulatory Model Numbers This appendix lists the Regulatory Model Numbers (RMNs), where applicable, for the product models for the switches described in this document. Table 11: Regulatory Model Numbers and Product Numbers Regulatory Model Number Product Number(s) (RMN) DCS-7060CX-32S DCS-7060CX-32S DCS-7060CX2-32S... -
Page 47: Appendix G: Taiwan Rohs Information
Appendix G Taiwan RoHS Information This appendix provides Taiwan RoHS information for switches covered by this guide. For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
