Assembly - Hanging the Fan (continued)
3

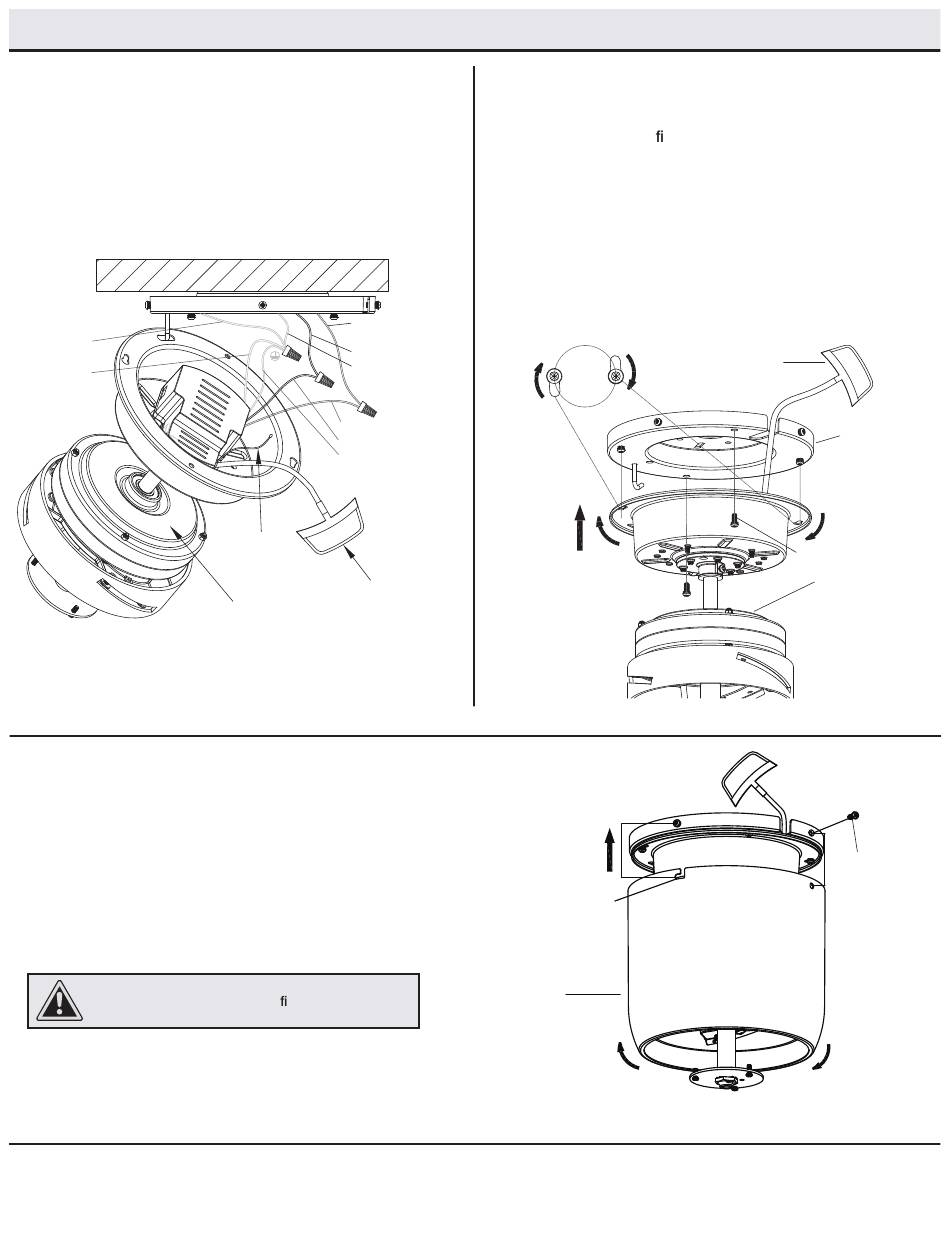

Connect the wires
□
Identify the wiring located inside of fan-motor assembly (B):
black – line voltage, white – neutral, green – ground .
Connect the Black (L), White (N) and Green (G) wires from the
fan-motor assembly (B) to their corresponding wires from the
outlet box using Wire Nuts (AA).
Mounting Plate
Group - Green
Receiver
Group - Green
5
Install the ceiling housing
□
Locate the two key holes on the top of ceiling housing (C).
□
Place two key holes on the mounting side screws (N) pre-installed
on the side of mounting plate (A) .
□
Rotate the ceiling housing (C) clockwise until the screw holes in
place between ceiling housing (C) and mounting plate (A).
□
Reattach 2pcs of the side screws (N) which removed in Step 1 in
place.
□
Tighten 4pcs side screws (N) of mounting plate (A).
CAUTION: Please take care of Wi antenna in this step.
120V Line
voltage-Black
120V Neutral-White
120V Group-Green
Fan Line voltage - Black
Fan Neutral - White
Fan Group- Green
Remote antenna
(Yellow)
L
B
4
Install the fan-motor assembly
□
Carefully lift the wi antenna(L) through the gap of mounting
plate (A) away from fan-motor assembly(B).
□
Locate the two key holes on the edge trim of fan-motor
assembly (B).
□
Place two key holes on the mounting bottom screws(M)
pre-installed on the bottom of mounting plate (A) . Figure 5.
□
Rotate the fan-motor assembly(B) clockwise until it is secure.
□
Reattach 2pcs of the bottom screws (M) which removed in
Step 1 in place.
□ Tighten 4pcs bottom screws (M) of mounting plate (A).
M
Key hole
C
8
L
Figure 5
A
M
M
B
M
L Wifi Antenna
N
Screw hole
N
