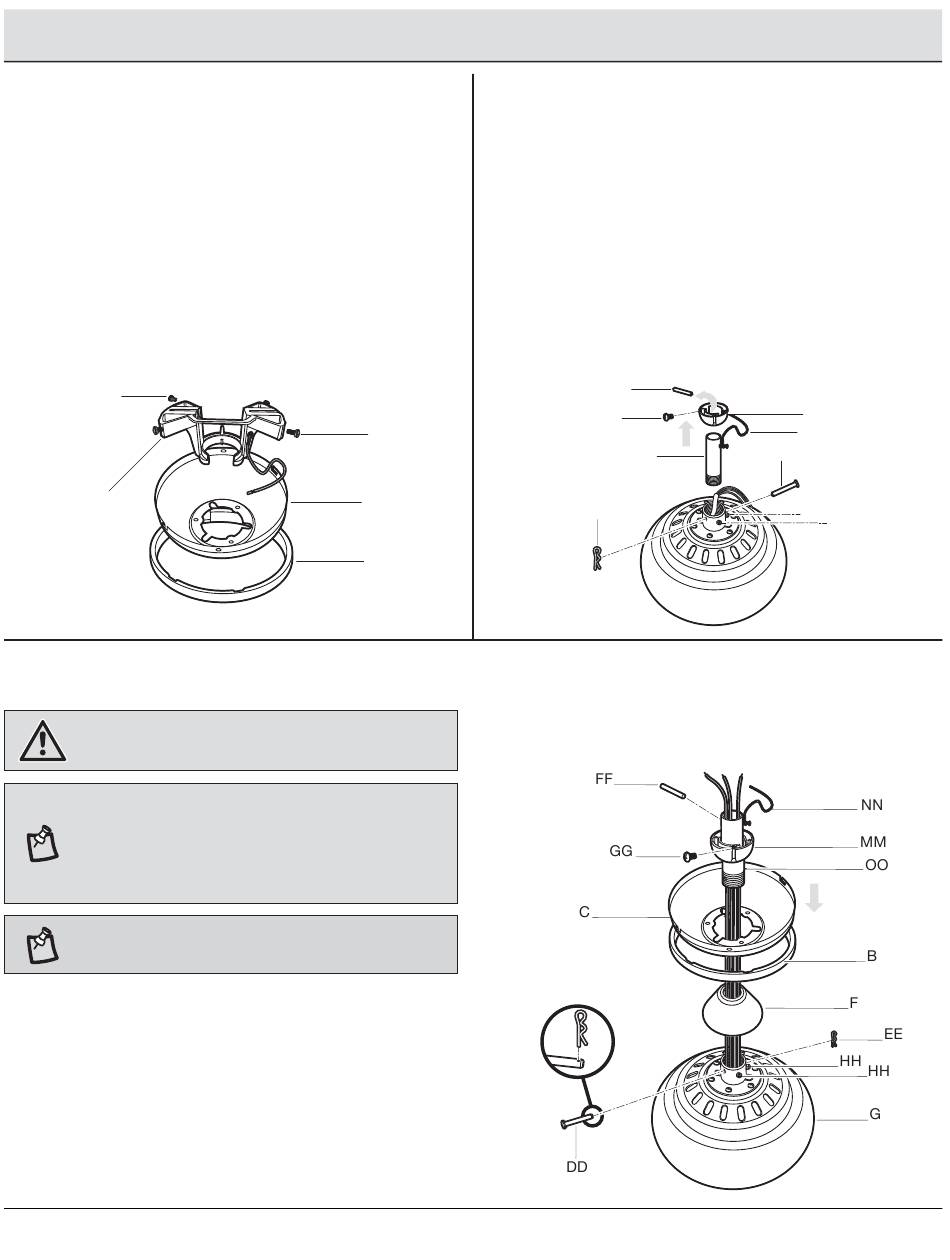

Assembly — Standard Ceiling Mounting
1
Preparing the canopy
□
Remove the canopy ring (B) from the canopy (C).
□
Remove the two non-slotted canopy mounting screw
with lock washer (BB) from the canopy (C), and loosen
the slotted canopy mounting screw with lock washer
(BB) on the canopy (C).
□
Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
BB
A
3
Assembling the fan
WARNING:
Failure to properly install the cotter pin (EE)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball (MM), lower the
hanger ball (MM) and remove the pin (FF). Remove all three
pieces from the downrod and assemble them onto the new
longer downrod before proceeding to the downrod installa-
tion.
NOTE:
The fan must be mounted with a minimum of 10 ft.
clearance from the trailing edge of the blades to the floor.
□
Carefully feed the motor wires up through the downrod
(OO). Thread the downrod (OO) into the collar.
□
Align the holes and replace the clevis pin (DD) and cotter
pin (EE). Tighten the two collar setscrews (HH).
□
Slip the coupling cover (F), canopy ring (B), and canopy
(C) onto the downrod (OO).
2
Preparing the motor
□
Remove the cotter pin (EE) and clevis pin (DD), and
loosen the two collar setscrews (HH) from the motor
collar.
□
Take out the setscrew (GG) located in the hanger ball
(MM), lower the hanger ball (MM) and remove the
cross pin (FF). Remove the hanger ball (MM) from the
hanger ball/downrod assembly (E).
□
Remove the ground lead (NN) from the downrod
assembly (E).
BB
C
B
□
Carefully reinstall the hanger ball (MM) onto the downrod
(OO) and reinstall the ground lead (NN) onto the downrod
(OO), being sure that the cross pin (FF) is in the correct
position, the setscrew (GG) is tightened and wires are not
twisted.
9
FF
GG
E
EE
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
MM
NN
DD
HH
HH
