LifeGear 97015 Owner's Manual

Pacer motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

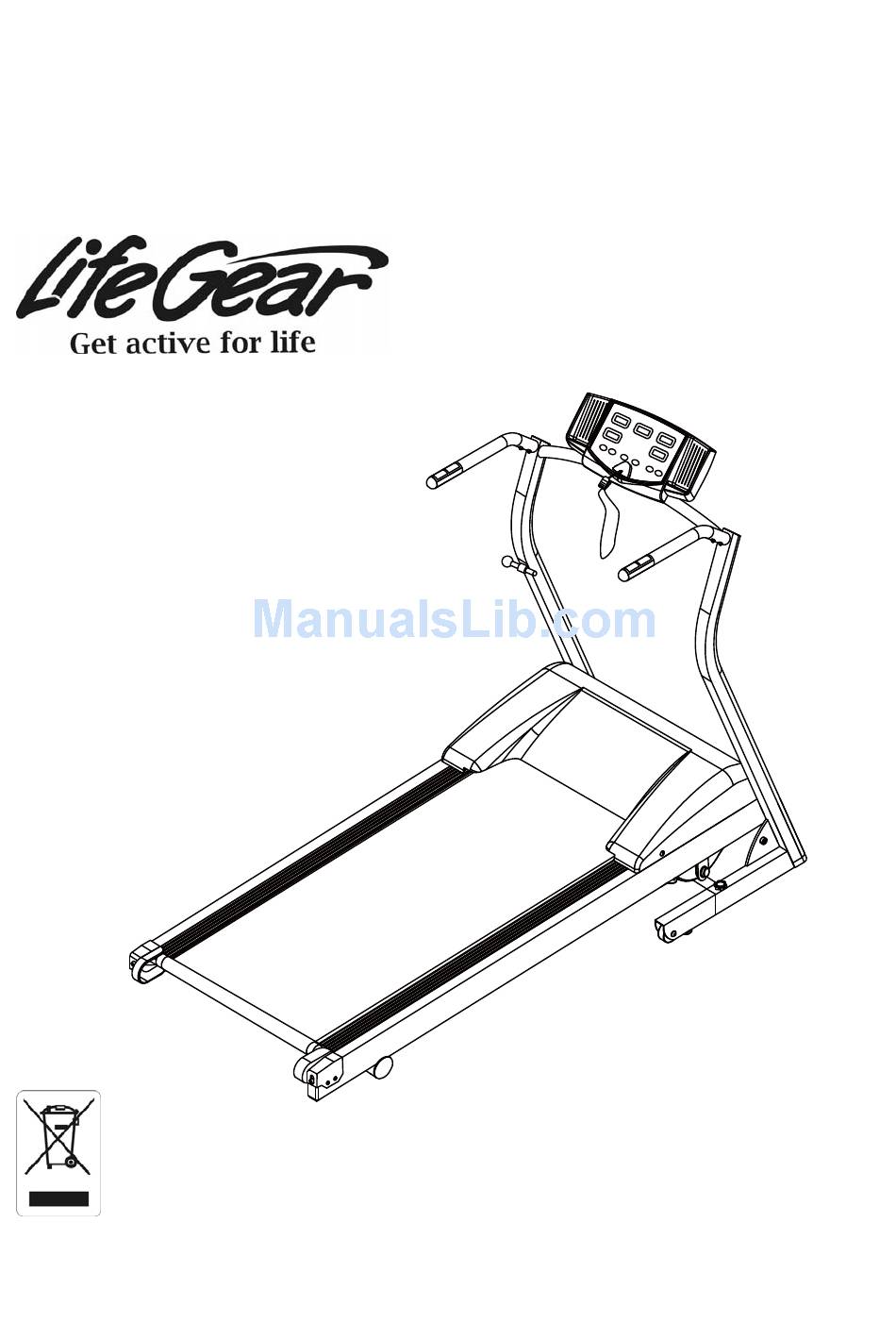

PACER MOTORIZED TREADMILL
ITEM NO: 97015
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change without
notice.
2012, June

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 97015 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeGear 97015

Summary of Contents for LifeGear 97015

  • Page 1 PACER MOTORIZED TREADMILL ITEM NO: 97015 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. 2012, June...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 OVERVIEW DRAWING ----------------------------------------------------------------- 5 PARTS LIST -------------------------------------------------------------------------------- 6 HARDWARE PACKING LIST ---------------------------------------------------------- 7 TOOL ----------------------------------------------------------------------------------------- 7 SILICONE OIL INCLUDED ------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 STORAGE ---------------------------------------------------------------------------------- 11 OPERATING THE COMPUTER ------------------------------------------------------ 12 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, please read the following: Always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing.

  • Page 5: Grounding Instructions

    This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

  • Page 6: Overview Drawing

    OVERVIEW DRAWING...

  • Page 7: Parts List

    PARTS LIST Description Qty No. Description 001 Main Frame 1 033 Computer 002 Upper Motor Cover 1 034 Bolt M5x12 003 Lower Motor Cover 1 035 Safety Tether Key 004R Rear Right Cap 1 036 Spacer Ø12xØ8.5x18 004L Rear Left Cap 1 037 Bolt M6x35 005R Right Side Rail 1955xW27 1 038 Self Tapping Screw ST4x16...

  • Page 8: Hardware Packing List

    HARDWARE PACKING LIST (43) Bolt M8x16 (66) Curve Washer M8 4 PCS 4 PCS TOOL 5mm Allen Wrench with Phillips Screwdriver 1 PC SILICONE OIL INCLUDED Silicone Oil 1 PC...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Locking Knob Step 1 Remove all parts and unit from the carton, then place the unit in the upright position with one person to hold the Handlebar Support Frame (26) with both hands and the other person to place one hand on the rear end of Main Frame (1) and the other hand to loosen the Locking Knob by turning it in a counterclockwise direction.
  • Page 10 Tool: 5mm Allen Wrench with Phillips Screwdriver Step 2 Remove four M5x12 Bolts (34) from the Computer (33). Remove bolts with the 5mm Allen Wrench with Phillips Screwdriver provided. Insert the wires that come from the Computer (33) into the hole on the computer bracket of the Handlebar Support Frame (26).
  • Page 11 Tool: 5mm Allen Wrench with Phillips Screwdriver Step 3 Connect the Hand Pulse Sensor Wire (62) from the Handlebar (59) to the Extension Hand Pulse Sensor Wires (64) from the right side of the tube of the Handlebar Support Frame (26).

  • Page 12: Storage

    STORAGE LIFTING UP THE TREADMILL Lift the rear end of the main frame up and align Locking Knob hole. Tighten the Locking Knob by turning it in a clockwise direction into a hole on the main frame. (See Figures A and B.) The unit can be carefully tilted onto its transport wheels for easy moving and storage.

  • Page 13: Operating The Computer

    OPERATING THE COMPUTER Quick Start: Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The treadmill will self-test for 2 seconds on startup after 2 seconds long beep. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 14 Computer Functions: TIME: Displays your elapsed workout time in minutes and seconds. Press the ON button and then press the SPEED UP button to start exercise. The running belt starts moving at speed of 0.8 KPH. You may press the SPEED UP or SPEED DOWN button on the computer console to increase or decrease running speed during exercise.
  • Page 15 to 0. When the pre-set target calories count down to 0, the computer will begin beeping to remind you. The treadmill will stop operation automatically. PULSE: The PULSE window will display your current heart rate 4 - 5 seconds after you grip the handlebar sensors with both your hands during exercise.

  • Page 16: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplugg(ed) the treadmill before cleaning or performing routine maintenance. CLEANING The treadmill can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents.

  • Page 17: Belt Adjustment And Lubrication

    BELT ADJUSTMENT AND LUBRICATION Belt Adjustment: The belt is adjusted at the factory; it may come loose during transportation and/or from use. After prolong use of the treadmill, the belt will stretch out. If the belt is shifting to the left, turn on the main power switch of treadmill and let the belt run at the speed of 2-3 KPH.

  • Page 18: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 19 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
