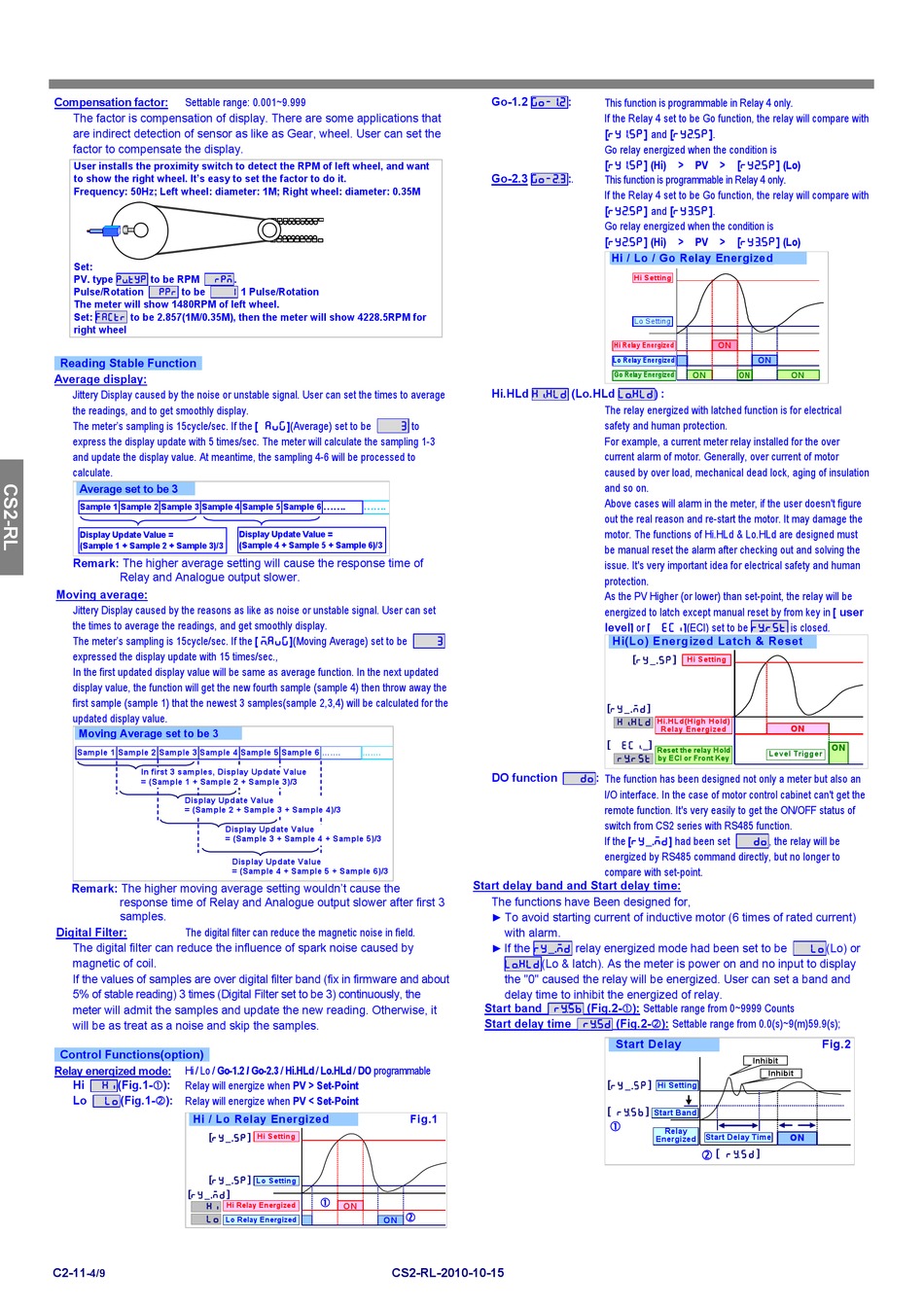

ADTEK CS2-RL Manual page 4

Compensation factor: Settable range: 0.001~9.999
The factor is compensation of display. There are some applications that
are indirect detection of sensor as like as Gear, wheel. User can set the
factor to compensate the display.
User installs the proximity switch to detect the RPM of left wheel, and want
to show the right wheel. It's easy to set the factor to do it.
Frequency: 50Hz; Left wheel: diameter: 1M; Right wheel: diameter: 0.35M
Set:
PV. type pVtyp to be RPM rpm.
Pulse/Rotation ppr to be
The meter will show 1480RPM of left wheel.
Set: factr to be 2.857(1M/0.35M), then the meter will show 4228.5RPM for
right wheel
Reading Stable Function
Average display:
Jittery Display caused by the noise or unstable signal. User can set the times to average
the readings, and to get smoothly display.
The meter's sampling is 15cycle/sec. If the [ avg](Average) set to be
express the display update with 5 times/sec. The meter will calculate the sampling 1-3
and update the display value. At meantime, the sampling 4-6 will be processed to
calculate.
Average set to be 3
Sample 1 Sample 2 Sample 3 Sample 4 Sample 5 Sample 6
Display Update Value =
(Sample 1 + Sample 2 + Sample 3)/3
Remark: The higher average setting will cause the response time of
Relay and Analogue output slower.
Moving average:
Jittery Display caused by the reasons as like as noise or unstable signal. User can set
the times to average the readings, and get smoothly display.
The meter's sampling is 15cycle/sec. If the [ Mavg](Moving Average) set to be
expressed the display update with 15 times/sec.,
In the first updated display value will be same as average function. In the next updated
display value, the function will get the new fourth sample (sample 4) then throw away the
first sample (sample 1) that the newest 3 samples(sample 2,3,4) will be calculated for the
updated display value.
Moving Average set to be 3
Sample 1 Sample 2 Sample 3 Sample 4 Sample 5 Sample 6
In first 3 samples, Display Update Value
= (Sample 1 + Sample 2 + Sample 3)/3
Display Update Value
= (Sample 2 + Sample 3 + Sample 4)/3
Display Update Value
= (Sample 3 + Sample 4 + Sample 5)/3
Remark: The higher moving average setting wouldn't cause the
response time of Relay and Analogue output slower after first 3
samples.
The digital filter can reduce the magnetic noise in field.
Digital Filter:
The digital filter can reduce the influence of spark noise caused by
magnetic of coil.
If the values of samples are over digital filter band (fix in firmware and about
5% of stable reading) 3 times (Digital Filter set to be 3) continuously, the
meter will admit the samples and update the new reading. Otherwise, it
will be as treat as a noise and skip the samples.
Control Functions(option)
Hi / Lo / Go-1.2 / Go-2.3 / Hi.HLd / Lo.HLd / DO programmable
Relay energized mode:
Hi hi(Fig.1-): Relay will energize when PV > Set-Point
Lo lo(Fig.1-): Relay will energize when PV < Set-Point
Hi / Lo Relay Energized
[ry_.sp]
[ry_.sp]
[ry_.md]
hi Hi Relay Energized
lo
Lo Relay Energized
C2-11
-4/9
1 1 Pulse/Rotation
3 to
....... .......
Display Update Value =
(Sample 4 + Sample 5 + Sample 6)/3
....... .......
Display Update Value
= (Sample 4 + Sample 5 + Sample 6)/3
Hi Setting
Lo Setting

ON

ON
CS2-RL-2010-10-15
Go-1.2 go-!2:
Go-2.3 go-@3:.
Hi.HLd hIhld (Lo.HLd lOhld) :
3
DO function do: The function has been designed not only a meter but also an
Start delay band and Start delay time:
The functions have Been designed for,
To avoid starting current of inductive motor (6 times of rated current)
►
with alarm.
If the ry_.md relay energized mode had been set to be
►
lOhld(Lo & latch). As the meter is power on and no input to display
the "0" caused the relay will be energized. User can set a band and
delay time to inhibit the energized of relay.
Start band rYsb (Fig.2-): Settable range from 0~9999 Counts
Start delay time rYsd (Fig.2-): Settable range from 0.0(s)~9(m)59.9(s);
Fig.1
This function is programmable in Relay 4 only.
If the Relay 4 set to be Go function, the relay will compare with
[ry!sp] and [ry@sp].
Go relay energized when the condition is
[ry!sp] (Hi) > PV > [ry@sp] (Lo)
This function is programmable in Relay 4 only.
If the Relay 4 set to be Go function, the relay will compare with
[ry@sp] and [ry#sp].
Go relay energized when the condition is
[ry@sp] (Hi) > PV > [ry#sp] (Lo)
Hi / Lo / Go Relay Energized
Hi Setting
Lo Setting
Hi Relay Energized ON
ON
Lo Relay Energized
Go Relay Energized ON ON
The relay energized with latched function is for electrical
safety and human protection.
For example, a current meter relay installed for the over
current alarm of motor. Generally, over current of motor
caused by over load, mechanical dead lock, aging of insulation
and so on.
Above cases will alarm in the meter, if the user doesn't figure
out the real reason and re-start the motor. It may damage the
motor. The functions of Hi.HLd & Lo.HLd are designed must
be manual reset the alarm after checking out and solving the
issue. It's very important idea for electrical safety and human
protection.
As the PV Higher (or lower) than set-point, the relay will be
energized to latch except manual reset by from key in [ user
level] or [ eci](ECI) set to be rYrst is closed.
Hi(Lo) Energized Latch & Reset
[ry_.sp]
Hi Setting
[ry_.md]
hIhld
Hi.HLd(H igh H old)
Relay Energized
[ ecI_]
Reset the relay Hold
Level Trigger
rYrst
by ECI or Front Key
I/O interface. In the case of motor control cabinet can't get the
remote function. It's very easily to get the ON/OFF status of
switch from CS2 series with RS485 function.
If the [ry_.md] had been set do, the relay will be
energized by RS485 command directly, but no longer to
compare with set-point.
Start Delay
Inhibit
Inhibit
[ry_.sp]
Hi Setting
[ rYsb]
Start Band

Relay
Start Delay Time
Energized
 [ r Y s d ]
ON
ON
ON
lo(Lo) or
Fig.2
ON
