ADTEK CS2-RL Operation Manual

Linearly line speed / rpm controller. frequency controller
Hide thumbs Also See for CS2-RL:
Table of Contents

Advertisement

Quick Links

Download this manual

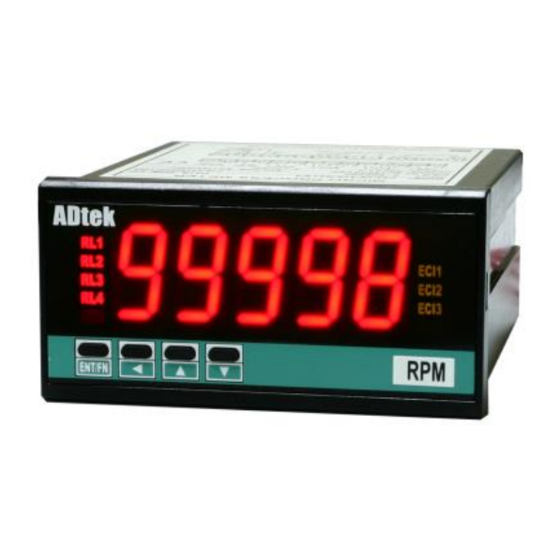

CS2-RL
CS2-F
■

DESCRIPTION

CS2-RL(F) controller has been designed high accuracy measurement, display, control and
communication (Modbus RTU mode) of pulse(Frequency) or AC Frequency.
 The innovation feature is auto-range input from 0.01Hz~ 100KHz(~140KHz in option). The display
resolution will be auto-changed to show the highest according to input frequency.
They are also building in 4 Relay outputs, 3 External Control Inputs, 1 Analogue output and 1
RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm,
re-transmission and communication for a wide range of testing and machinery control
applications. Please refer to the detail description on pages 2/38~7/38.
There are not only controllers, but also an I/O interface in any system. ADtek built in
difference ideal for External Control input and Relay output as like as I/O module of PLC. It's very
connivance to achieve remote monitoring and control by CS2 series.
■

FEATURES

●
Accuracy: ± 0.005%; Display range: 0~99999; Auto-range with Decimal
Point auto changed according to input frequency.
●
Optional 4 relay can be programmed individual to be a Hi / Lo / Hi Latch
/ Lo Latch / Go energized with Start Delay / Hysteresis / Energized &
De-energized Delay functions, or to be a remote control.
●
Analogue output and RS 485 communication port in option
●
3 external control inputs can be programmed individual to be Tare
(Relative PV) / PV Hold / Maximum or Minimum Hold / DI (remote
monitoring) / Reset for Relay Energized Latch.... In standard.
●
EMC, EMI, LVD Approved & RoHS
【CS2-RL LINEARLY LINE SPEED / RPM CONTROLLER】
●
Measuring RPM / Linearly line speed / Frequency AUTO RANGE
0.01~100KHz / ~140KHz(optional) / Contact, NPN, PNP, Voltage pulse
can be switch on rear of meter.
【CS2-F FREQUENCY CONTROLLER】
●
Measuring Frequency AUTO RANGE 0.01~100KHz /
~140KHz(optional) / Voltage pulse or sine wave(specify).

APPLICATIONS

■
Models
●
CS2-RL Motor Control / Machinery / Testing Equipments for Measuring, Alarm and Communication with
PC/PLC
 Flexible 3 DI functions as like as Maximum/Minimum hold, PV hold and Relative PV.
 On line testing station for appliance, check points of PCB as so on.
●
CS2-F Switch Boards / Testing Equipments for Measuring, Alarm and Remote I/O with PC/PLC
 Fantastic 4 Relay functions as like as Hi / Lo / Hi latch / Lo latch / DO(Remote control by PC/PLC).
 Flexible 3 DI functions as like as Reset for Relay energized latch and Remote monitoring by PC/PLC.
Functions
●
Safety & Protection Hi/Lo alarm and latch(hIhld / lOhld), Analogue output limited(aOlmt)
●
Testing & Measuring Maximum/Minimum hold(maXhd / miNhd), PV hold(pVhld), Relative
●
Remote Monitoring & Control
LINEARLY LINE SPEED / RPM CONTROLLER
FREQUENCY CONTROLLER
OPERATION MANUAL
PV/Tare/∆PV(reLpv)
RS485 communication port, Display function(rs485), ECI input
di), Relay energized(
status(
CS2 SERIES –OPERATION
do)
MANUAL(EN)-2017-02-09-一般
1 / 39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS2-RL and is the answer not in the manual?

Questions and answers

Related Manuals for ADTEK CS2-RL

Summary of Contents for ADTEK CS2-RL

  • Page 1 Please refer to the detail description on pages 2/38~7/38. There are not only controllers, but also an I/O interface in any system. ADtek built in difference ideal for External Control input and Relay output as like as I/O module of PLC. It’s very connivance to achieve remote monitoring and control by CS2 series.
  • Page 2 ■ FUNCTION DEFINE  ■ Character Symbol Factor function: Settable range: 0.001~9.999 A b C d E F G H i J K L M a b c d e f g h i j k l m Display = Value of math with setting x Factor The display can be proportioned by factor.
  • Page 3 ● manual reset by front key in [user level], manul(Manual range): The decimal point will be Up/Down Key function has been done or ECI fixed according to the setting of [ dp]. The meter terminal had been closed, if the ECI has set Mrst. ovfl(overflow), once the input goes will show The meter will update immediately new...
  • Page 4 ■ Reading Stable Functions PV< l Setting value l, the display will be 0 EX: Low Cut is set for 0.50, if the display is from  Average Display update -0.50~+0.50, that will be 0. Settable range: 1~99 times; Low Cut set to be +0.50 Jittery Display caused by the noise or unstable Present PV according...
  • Page 5 ■ Relay Functions  CS2 series offer the 4 relay outputs with flexible The function has been desgined that is not only a and versatile functions. They can be programmed meter but also a I/O inteface. In the case of motor individually in [relay group]。Please refer to the control cabnet, it's normally can not get the remote description as following;...
  • Page 6  Reset for Relay Energized Latch Energized / De-energized Fig.3 Delay & Hysteresis If the relay energized mode has been set to be [ry_.sp] hIhld(Energized latch), and the [ ecI_] can be Hi Setting set to be rYrst(Reset Relay function). When the [ry_.hy] PV meets the condition of relay energizing, the ...
  • Page 7 or 4(0)~20mA in ordering. The output low and high CS2 series offer 3 point external control inputs. can be programmable which it's related to various They can be programmed individual with versatile display values. Reverse slope output is possible by display and control functions.
  • Page 8 Unit (RTU) for monitoring and controlling in a Users can get Fine Adjustment of analogue output SCADA (Supervisor Control And Data Acquisition) by front key on the meter. Please connect standard system. It's not only can be read the measured meter to the terminals of analogue output.
  • Page 9 Input Input − Relay − Analogue − RS 485 − AUX. *Optional Customize function is welcome. Please contact with our CS2−RL− − Mode level Output Output Port POWER Function sales for detail. OPTION 1 OPTION 2 OPTION 3 CODE INPUT MODE CODE REALY OUTPUT CODE ANALOG O/P...
  • Page 10 For input, RS485 and ECI wiring, Herein recommended to use twin with shielding wire. 【CS2-F Frequency Controller】 【CS2-RL RPM/Linearlly Line Speed/Freq.Controller】 Relay 1 Relay 2 Relay 3 Relay 4 RS 485 Analogue Relay 1...
  • Page 11 OPERATIONS ■ CS2 SERIES –OPERATION MANUAL(EN)-2017-02-09-一般 11 / 39...
  • Page 12 ■ Front Panel Max. Hold status  Engineer Label: over 80 types. Relay status Indication Comm. status CO M R L 1 CI11 Control Input status Display screen Mini. Hold status ENT/FN Operation Key Engineer Unit  Numeric Screens 0.8”(20.0mm) red high-brightness LED for 5 digital present value.
  • Page 13 *Please access to the Engineer Level to check and set the parameters when users start to run the meter  Operating Key: 4 keys for Enter(Function) / Shift(Escape) / Up key / Down key  The meter has desgined operation similar as PC's .
  • Page 14 CS2 SERIES –OPERATION 14 / 39 MANUAL(EN)-2017-02-09-一般...
  • Page 15 CS2 SERIES –OPERATION MANUAL(EN)-2017-02-09-一般 15 / 39...
  • Page 16 CS2 SERIES –OPERATION 16 / 39 MANUAL(EN)-2017-02-09-一般...
  • Page 17 CS2 SERIES –OPERATION MANUAL(EN)-2017-02-09-一般 17 / 39...
  • Page 18 ■ Operating Steps: User Level ■ INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET Please check the specification and POWER wiring diagrams firstly. Self-diagnosis (LED All bright) cs@rl Model cs@rl: RPM/Linearlly Line Speed/ Frequency cs@f: Frequency Firmware version Measuring Page for 1 second to access [User Press Level] This page will show out, when...
  • Page 19 & Selection Enter Review only Model of the meters cs@rl: RPM/Linearlly Line Speed/ It will be announced in our website www.adtek.com.tw, Frequency when it had been versions cs@f: Frequency updated. ver!4(Ver 1.4): Firmware version Return to the first page Press for 1 second to back to Measuring Page in any page.
  • Page 20  Input Group INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET INPUT GROUP INDEX PAGE In following pages, press for 1 second to back INPUT GROUP INDEX PAGE. pVtyp: PV type selection Programmable: lNspd:Linearly Line Speed; The meter has desgined for mult-purpose.
  • Page 21 pVspn(Pv.SPn): Fine high point Settable range: 0~99999 Adjustment for PV display; Shift Down Enter For Span of PV, users can get the "Fine Adjustment" by front key. It's an easy way to “Just Key-In” the value that the user want to show in the current input signal. Especially, the [pVspn] is not only in span of PV, but also any higher point for [pVspn].
  • Page 22 itOmd: Input Time Out Mode; Programmable: auto / manul auto In the case of low frequency, the meter auto(Auto): The display will be can not to identify that is low frequency “0”, once the next pulse and no input until the next pulse input. doesn’t input during the time manul Sometimes, it takes a long period.
  • Page 23 avg(AvG): Average update for PV Settable range: 1(no function)~99 times Jittery Display caused by the noise or unstable signal. User can set number to Shift Down Enter average the readings to get smoothly display. The meter’s sampling is 15 cycles/sec. If the [avg](Average) set to be the which means the meter is sampling 3 readings, and calculating the average to...
  • Page 24  Relay Group (The group will not be displayed except the relay function is to be specified ) INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET relay RELAY GROUP INDEX PAGE In following pages, press for 1 second to return the group RELAY GROUP INDEX PAGE.
  • Page 25 ry!hy(rY1.HY): Relay 1 Hysteresis Settable range: 0~19999 digits The function is to avoid the relay on and Shift Down Enter off frequently, when the display value is swing near by the set point. The typical application is to control a compressor. User can set a band to prevent the relay on and off frequently.
  • Page 26 ry#md(rY3.Md): Relay 3 energized Programmable: mode off(off) / lo(Lo) / hi(Hi) / hIhld(Hi.HLd) / lOhld(Lo.HLd) / do(DO), These fcunctions are same as ry!md and add go-!2 go-!2(Go-12): This function is programmable in Relay 3 or 4 only. If the Relay 3 or 4 set to be go-!2 function, the relay will compare with [ry1.sp] and [ry@sp].
  • Page 27 ry$md(rY4.Md): Relay 4 energized ry$md Programmable: mode off(off) / lo(Lo) / hi(Hi) / hIhld(Hi.HLd) / lOhld(Lo.HLd) / do(DO), These fcunction are same as ry!md and more go-!2 / go-@3 go-!2(Go-1.2): This function is programmable in Relay 3 or 4 only. If the Relay 3 or 4 set to be go-!2 function, the relay will compare with [ry1.sp] and [ry@sp].
  • Page 28  External Control Input(E.C.I.) Group (standard function) INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET EXTERNAL CONTROL INPUT GROUP In following pages, press INDEX PAGE for 1 second to return the ECI GROUP INDEX PAGE. ecI1(ECi.1): External Control Input 1 Programmable: reLpv pVhld(Pv.HLd) none(None): No function;...
  • Page 29 debnc(dEbnc): Debouncing of debnc Settable range: 5~255( x 8ms) external control Input Shift Down Enter E1=up(E.1=UP): The E1=up Up Key can be Programmable: set to be the same function as the yes(YES): Up Key is to be setting for [ecI1]. same function as ECI1 Ex.
  • Page 30 aOhs(Ao.HS): the High point is relative aOhs Settable range: -19999~99999 to Analogue Output high; Shift Down Enter To set the higher display value to versus output range high(as like as 20mA in A4-20) Ex. Ourput range set to be A4-20 According to (4~20mA) is relative to display 0~199.99.
  • Page 31  RS485 Group (The group will not be displayed except the RS485 function is to be specified) INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET RS485 GROUP INDEX PAGE In following pages, press for 1 second to return the RS485 GROUP INDEX PAGE. adres(Adress): Device number of the Settable range: 1~255 meter.
  • Page 32 Display Issue: PROBLEM CHECKING LIST REMEDY Display 1.To inspect the input A.The input range of CS2-RL(F) is 0.01~100kHz(optional: shows range of meter whether 0.01~140kHz). Please make sure input of field is between did match with range in this range. ovfl B.Please check the setting of [range] function whether did it...
  • Page 33 A.Please try to set higher value in [ avg](A-12). 2.To inspect the input signal and it is stable. B.Please try to set higher value in [Dfilt](A-13). C.Please connects a isolation transformer as close as meter in power lines. Please check the [dsply](A-07) in [input group] and Display To inspect display function [dsply].
  • Page 34 PROBLEM CHECKING LIST REMEDY Jittery Analogue output is Analogue according to the display Output 1.Check if the display is A.If the input signal was jittery continuously, please set higher value in [ avg](A-12). jittery B.If the input signal is jittery uncertain period that caused by the inductive load actions, please set higher value in [Dfilt](A-14).
  • Page 35 RS485 MODBUS RTU MODE ■ ■ Modbus RTU Mode protocol 1. Function 03H (Read Holding Registers) Request Data Frame; EX: Read the data of display value(0000H starts from 1 Word) SLAVE FUNCTION Starting Starting No. of No. of Address Address Hi Address Lo Word Hi Word Lo...
  • Page 36  Programming Level [Input Group] Name Address Range Explain Initial Write/Read Note diamtr_h 0010h 0.0001~9.9999 Diameter of rotor*(High Word) 0000h diamtr_l 0011h Diameter of rotor*(Low Word) 03E8h factr_h 0012h 0.001~9.999 Factor of compensation*(High Word) 0000h factr_l 0013h Factor of compensation*(Low Word) 03E8h pv.spn_h 0014h...
  • Page 37 Name Address Range Explain Initial Write/Read Note 0029h 1~9999(0.1 03E8h Input Time Out seccond) range Input Range 002Ah 0000h 0: Auto 1: Semi-Auto 2: Manual s.clr Clear of PV Span 002Bh 0000h 0: No 1: Yes lo.cut 002Ch -19999~19999 Low Cut 0000h dsply Display Function...
  • Page 38 Name Address Range Explain Initial Write/Read Note ry3.fd 0~5999 003Fh 0000h De-Energized Delay Time of Relay 3 (0.1second) ry4.md Relay 4 Energized Mode 0040h 0001h 0: oFF(no use); 1: Lo(Low Energized); 2: Hi(High Energized) 3: Lo Hold(Low Energized Hold) 4: High Hold(High Energized Hold) 5: DO(Digital Output);...
  • Page 39 ADtek assumes no responsibility for any inaccuracies that may be contained in this document, and make no commitment to update or to keep current the information contained in this manual. ADtek reserves the right to make improvements to this document and/or product at any time without notice.
