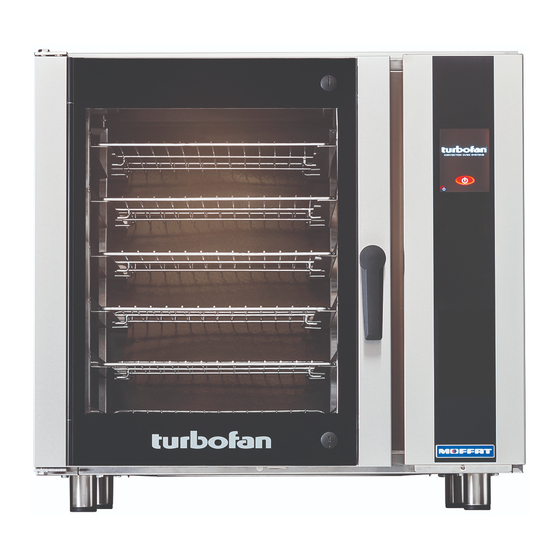

E 3 5 T 6
C o n v e c t i o n O v e n
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
239423-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for turbofan 30T Series

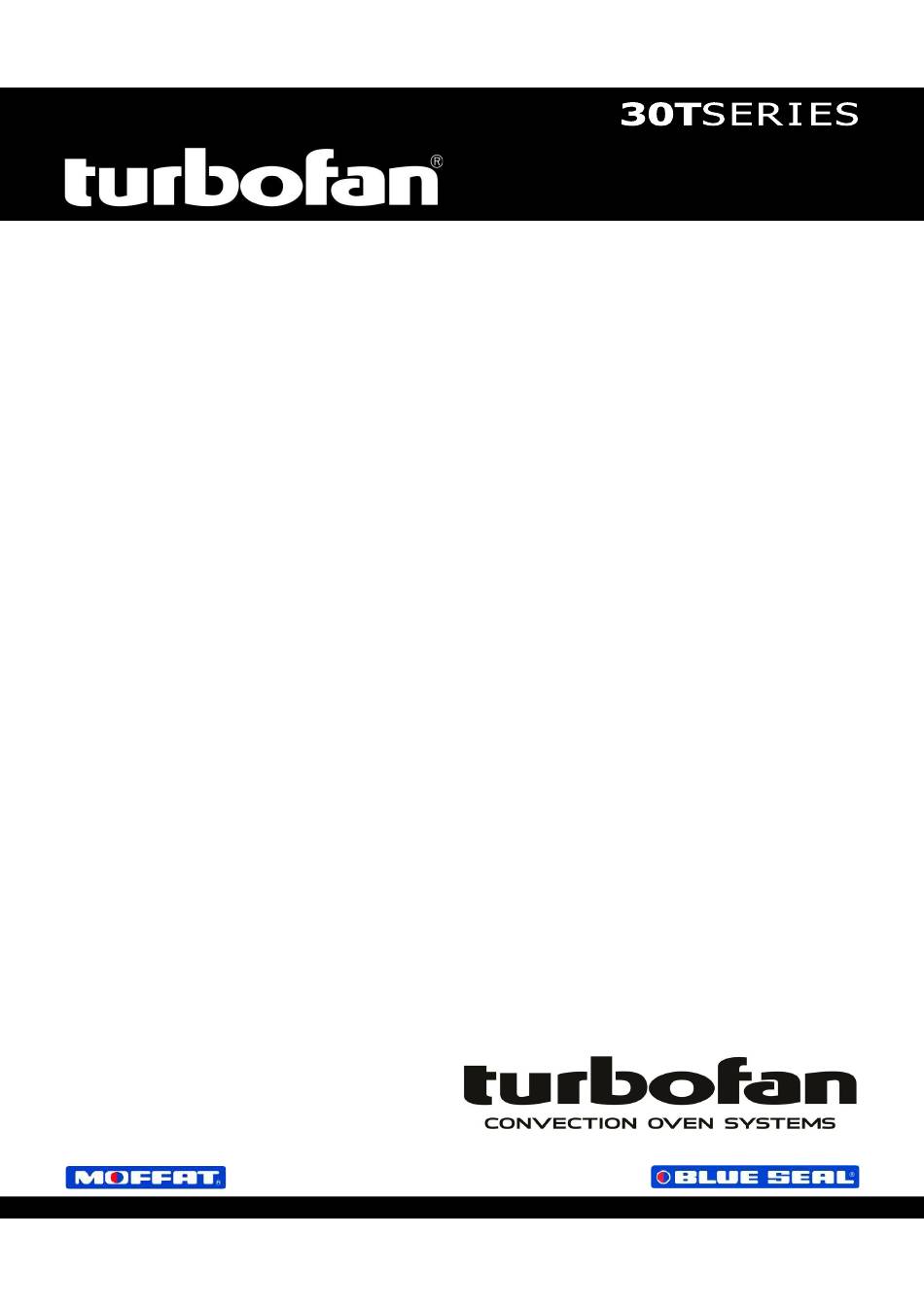

  • Page 1 E 3 5 T 6 C o n v e c t i o n O v e n I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 239423-6...
  • Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
  • Page 3 Contents List Safety Information Installation Requirements Unpacking Location Clearances Stand Mounted Ovens Side Racks Electrical Connection Water Connection Recommended Water Specifications Positioning and Levelling of Oven Initial Start-Up Commissioning Using Oven Mode Control OFF Control ON Pre-Heating Select Shelf Select Product Load Tray(s) Program Start Done - Time Up...
  • Page 4 Contents List...
  • Page 5 If you are unsure of any aspect of the installation, instructions or performance of your oven, contact your TURBOFAN dealer promptly. In many cases a phone call could answer your question. Should you contact your TURBOFAN dealer on any matter concerning this oven, please have the information provided opposite, readily available.
  • Page 6: Specifications

    Specifications USA / Canada / Mexico Model Voltage Frequency Phase Amps Electrical Rating E35T6-**-T263 220-240V 60 Hz 3P+E 30.3 12.5kW @ 240V E35T6-**-P263 208V 60 Hz 3P+E 31.1 11.2kW @ 208V E35T6-**-T261 220-240V 60 Hz 1P+N+E 52.0 12.5 kW @ 240V E35T6-**-P261 208V 60 Hz...
  • Page 7 Specifications Tray Capacity Qty 6, 460 x 660mm / 18” x 26”, Full Size Sheet Pan Capacity. Oven Tray Details Tray Spacing 105mm / 4⅛”. Max Water Inlet Pressure 80 psi / 550 kPa. Water Connection Connection Size ” GHT Male. NOTE: If the bake Steam / Moisture Mode baking option is not required, the oven does not need to be connected to a water supply.
  • Page 8 Specifications Tray Capacity Qty 6, 460 x 762mm / 18” x 30”, Tray Capacity. Oven Tray Details Tray Spacing 105mm / 4⅛”. Max Water Inlet Pressure 80 psi / 550 kPa. Water Connection Connection Size ” GHT Male. NOTE: If the bake Steam / Moisture Mode baking option is not required, the oven does not need to be connected to a water supply.
  • Page 9: Installation

     If you have any questions regarding the proper installation and / or operation of this oven, please contact your local Turbofan distributor. 1. Remove all packaging and transit protection including all To ensure correct ventilation for the motor and controls, the...
  • Page 10 Installation 1. The side racks can be fitted in one of two positions, in order to NOTE: If the Bake Steam / Moisture Mode is not required, the take 16 or 18 inch trays. oven does not require connecting to a water supply. 2.
  • Page 11 Operation - Oven User Mode Turn oven ‘On’ at base of Control Panel before pressing ‘Start / Stop button. Control Panel will illuminate. Turn power ‘On’ manually at base of Control Panel. Press button to ‘Start / Stop’ oven control. Press to show HELP screen.
  • Page 12 Operation - Oven User Mode Press scroll bar to scroll up/down SELECT product from list. recipes. Alarm will sound when oven is ready to load. Part Oven Load Full Oven Load LOAD TRAY(S) to selected shelf or shelves. Always select empty shelves nearest top of oven first.
  • Page 13 Manager Mode - Recipe Programming Press to show HELP screen. Press M AN AGER to enter M anager M ode. ENTER passcode (4500). Press to confirm. Press to cancel. Press to show HELP screen. Press to exit. Press to select Press for next MANAGER screen.
  • Page 14 Manager Mode - Recipe Programming Press to show HELP screen. Press to return to previous screen. Press to edit recipe nam e. Turnover Enter recipe name in keypad. Press to confirm. Press to cancel. Press to show HELP screen. Press to return to previous screen.
  • Page 15 Manager Mode - Recipe Programming Press to show HELP screen. Press to return to previous screen. Press Choose to add recipe to category. (Note: recipes can be in more than one category). Press to show HELP screen. Press to create new category. Press to delete a category.
  • Page 16 Manager Mode - Recipe Programming Press to show HELP screen. Press to return to previous screen. Press to enter recipe settings Press to set stage temperature Press to set stage time. Press to select fan speed. Press to set vent Open / Close. Press to set time to count Down.
  • Page 17 Manager Mode - Settings Press to show HELP screen. Select MANAGER. ENTER Passcode (4500). Press to confirm. Press to cancel. Press to show HELP screen. Press to exit MANAGER screens. Press to select . R efer to previous section, ‘Manager Mode -Recipe Programming’. Press to Press to Press to select...
  • Page 18 Manager Mode - Settings Press to show HELP screen. Press to exit MANAGER screens. Press to adjust. Press to turn On / Off. Press to turn On / Off. Press to enable / disable key press beep. Press for next / previous MANAGER screen.
  • Page 19 Manager Mode - Settings Press to show HELP screen. HANGE ASSCODE CREEN Press to return to previous screen. Press to change passcode. Press , num eric keypad w ill display. Enter passcode. Press , numeric keypad will display. Verify passcode. Press to confirm.
  • Page 20 Manager Mode - Settings Press to show HELP screen. Press to exit MANAGER screens. Press to enter / change real Press to change from AM to PM. time settings. Press to enter / change date settings. Press to enter Language selection.
  • Page 21 Manager Mode - Settings Press to show HELP screen. Press to exit MANAGER screens. CALIBRATE OUCH CREEN Press to Re-Calibrate the Touch Screen. NOTE; This should only be carried out if the touch positions on the screen become difficult to operate.
  • Page 22: Cleaning And Maintenance

    Cleaning and Maintenance 6. Thoroughly clean interior and surfaces of Oven with a mild anti bacterial detergent and hot water solution. 7. Dry interior of oven with a dry cloth and polish with a soft dry cloth. a. To remove, pull out the seal starting at each corner.
  • Page 23 Cleaning and Maintenance 1. Lift the side rack off the bottom locating pins. Remove the LH side rack as shown previously. 2. Move the bottom of the side rack toward the centre of the oven. 3. Lower side rack to clear top locating pins, and remove. NOTE: The side racks can be fitted in one of two positions, in order to take 16 or 18 inch trays.
  • Page 24: Fault Finding

    Fault Finding This section provides a reference to the more common problems You may encounter a problem not covered in this section, please that may occur during the operation of your oven. This fault finding contact your service provider who will require the following guide is intended to help you correct and accurately diagnose information:- problems with your oven.
  • Page 25: Electrical Schematics

    Electrical Schematics...
  • Page 26 Electrical Schematics...
  • Page 27 Electrical Schematics...
  • Page 28: Replacement Parts List

    For further information and servicing instructions, contact your nearest authorized service provider or Turbofan Dealer. When ordering replacement parts, please quote the part number and the description as listed below. If the part required is not listed below, request the part by description and quote model number and serial number which is shown on the Technical Data Plate.
  • Page 29 Replacement Parts List 024802 Door Microswitch 235354 Door Switch Return Spring 017929 Damper Rod Clip 231438 Door Seal 236885 Gasket - Door Switch / Oven Temp Probe 239519 Door Inner Glass 239512 Door Outer Glass Assy 236198 Door Latch Cover 235859 Door Handle Assembly 231804...
  • Page 30: Appendix 1 - Reversing The Oven Door

    180° 3. Remove the upper pivot pin and refit to the oven door. and washer. Take care to Ensure that the Turbofan support the oven door. Logo is at the bottom of the 4. Carefully open door and lift door door off bottom locating pin.
  • Page 31 Appendix 1 - Reversing the Oven Door Door Position Adjustment (Vertical Alignment): Door Latch Adjustment: 1. To adjust the door vertical 1. Open oven door to Cap Screws Neoprene Seal Lock Nut alignment, open oven door. reveal the locking dog. 2.
