Summary of Contents for turbofan E35D6-**-T263 series

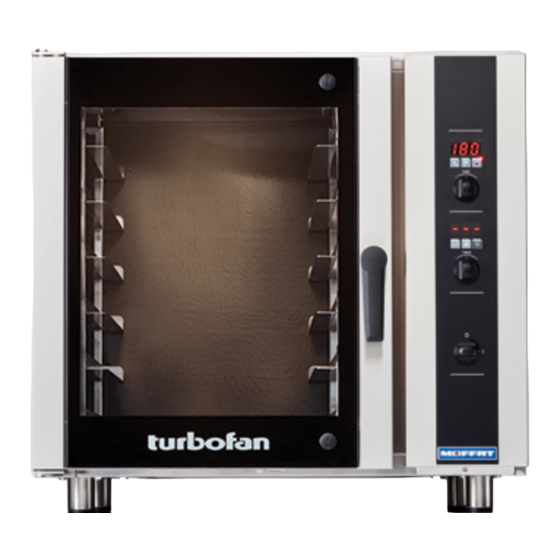

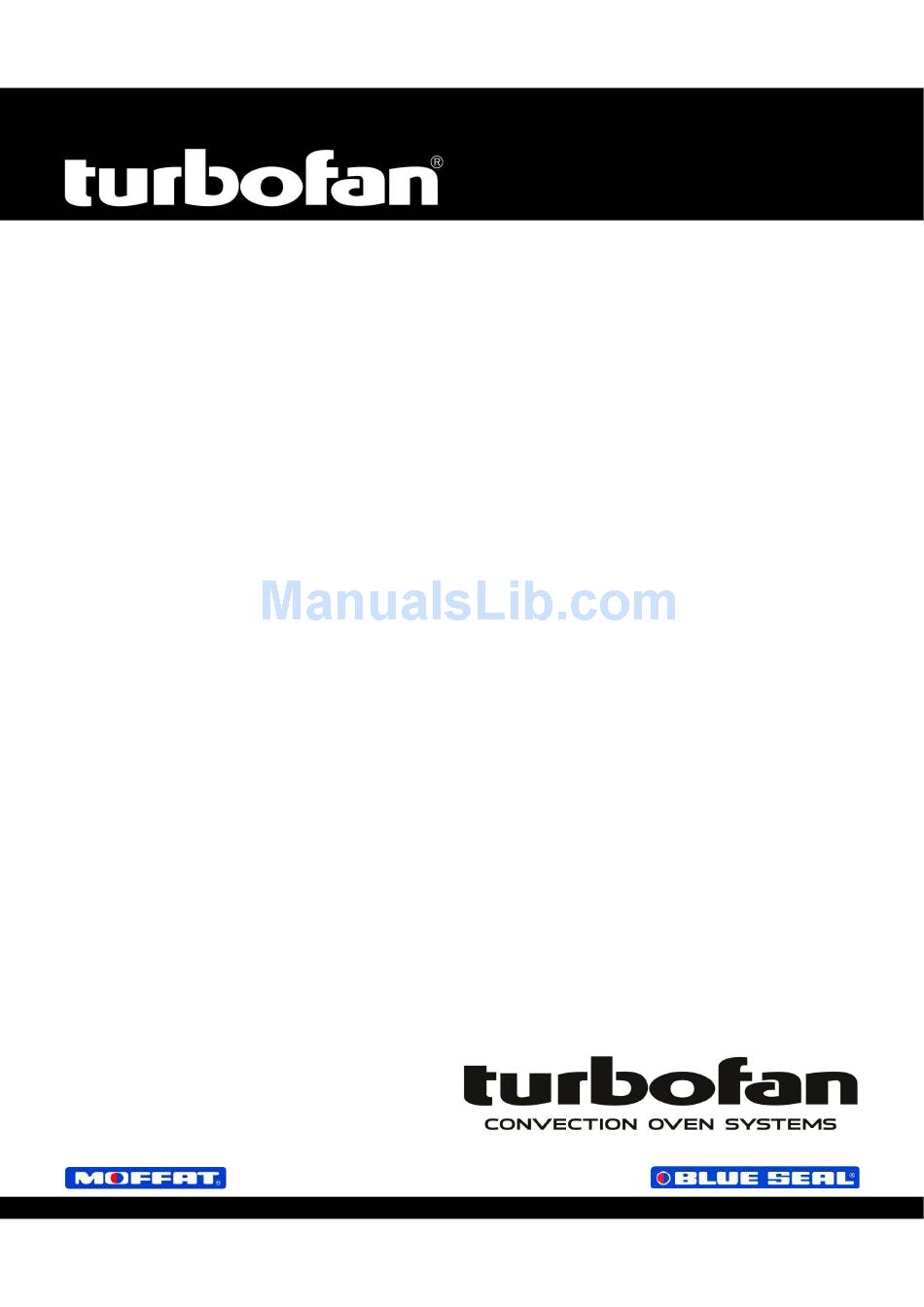

- Page 1 30DSERIES E 3 5 D 6 C o n v e c t i o n O v e n I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 239422-2...
- Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA...
- Page 3 Contents List E35D6 Turbofan Convection Oven. Introduction ..........................2 Safety Information Specifications ..........................3 Installation ............................ 6 Installation Requirements Unpacking Location Clearances Stand Mounted Ovens Electrical Connection Water Connection Recommended Water Specifications Positioning and Levelling of Oven Initial Start-Up Commissioning Operation ............................
-
Page 4: Introduction
TURBOFAN dealer promptly. In many cases a phone call could answer your question. Dealer: Should you contact your TURBOFAN dealer on any matter concerning this oven, please have the information provided opposite, readily available. -
Page 5: Specifications
Specifications E35D6 - Oven Power Ratings USA / Canada / Mexico Model Voltage Frequency Phase Amps Electrical Rating E35D6-**-T263 220-240V 60 Hz 3P+E 30.3 12.5kW @ 240V E35D6-**-P263 208V 60 Hz 3P+E 31.1 11.2kW @ 208V E35D6-**-T261 220-240V 60 Hz 1P+N+E 52.0 12.5 kW @ 240V... - Page 6 Specifications E35D6-26 - Turbofan Convection Oven Tray Capacity Qty 6, 460 x 660mm / 18” x 26”, Full Size Sheet Pan Capacity. Oven Tray Details Tray Spacing 105mm / 4⅛”. Max Water Inlet Pressure 80 psi / 550 kPa. Water Connection Connection Size ”...
- Page 7 Specifications E35D6-30 - Turbofan Convection Oven Tray Capacity Qty 6, 460 x 762mm / 18” x 30”, Tray Capacity. Oven Tray Details Tray Spacing 105mm / 4⅛”. Max Water Inlet Pressure 80 psi / 550 kPa. Water Connection Connection Size ”...
-
Page 8: Installation
It is most important that this oven is installed correctly and that oven operation is correct before use. If you have any questions regarding the proper installation and / or operation of this oven, please contact your local Turbofan distributor. Unpacking Clearances 1. -
Page 9: Electrical Connection
Installation Side Racks Water Connection 1. The side racks can be fitted in one of two positions, in order to NOTE: If the Bake Steam / Moisture Mode is not required, the take 16 or 18 inch trays. oven does not require connecting to a water supply. 2. -
Page 10: Operation
Operation Operation Guide Warning Warning Take care when opening oven door during baking. Let the hot air and steam Some parts of this oven will become VERY escape before removing or replacing food as HOT during use and could cause burns if the steam produced can cause steam burns. - Page 11 Operation Manual Mode Steam In Manual mode the ovens settings are. Steam can be injected into the oven for a pre-determined length of time ( from 1 sec to 9 secs). - Temperature - 60-260C / 140-500F. - Timer setting - 0-180min or Infinite.
-
Page 12: Baking In Manual Mode
Operation Baking in Manual Mode On oven start-up the controller defaults to the following settings:- Refer ‘Controller - Operator Settings’ section to change this start-up temperature. Oven Temperature is set to 150°C (325°F). Oven Timer is not set, display shows ‘ - - -’. Steam time is set to the previous setting used in Manual Mode. -
Page 13: Cooking In Manual Mode Using Core Temp Probe
Operation Cooking in Manual Mode using Core Temp Probe (Requires Optional Core Temp Probe Kit 236060). On oven start-up the controller defaults to the following settings:- Refer ‘Controller - Operator Settings’ Oven Temperature is set to 150°C (325°F). section to change this start-up temperature. In Core Temp Oven Timer is not set, display shows ‘... -
Page 14: Baking In Program Mode
Operation Baking in Program Mode The oven can be pre-programmed with up to 30 Programs; each program can contain a maximum of 3 stages. When you receive your oven, the controller is not pre-programmed. SELECTING A PROGRAM. ‘Program’ LED is ‘On’... - Page 15 Operation ADDITIONAL ADJUSTMENTS (These can be adjusted whilst Program Mode is running). NOTE: Adjustments made during baking will not be saved to the program. VIEWING STAGE NUMBER AND STAGE TIME REMAINING. To view the Program and Stage numbers on the Upper Display, e.g. 3.1 = Program 3, Stage 1, and the Total Time Remaining in Stage remaining on the Lower Display: - Press ‘P’...
- Page 16 Operation CHANGING THE STEAM TIME / MOISTURE SETTING. Press and hold ‘Steam’ key for 3 seconds. Rotate ‘Temp’ knob to select desired Steam Level (St0 to St9) / Moisture Level (H-0 to H-5). Press ‘Steam’ key to confirm settings. NOTE: Refer to ‘Steam Mode / Moisture Mode Settings’...
-
Page 17: Programming
Programming Programming The oven can be pre-programmed with up to 30 Programs; each program can contain a maximum of 3 stages. When you receive your oven, the controller is not pre-programmed. To set programs, carry out the following for each program required: SELECT PROGRAMS MODE. - Page 18 Programming CONFIRM STAGE TO EDIT. Press ‘Program’ key to begin editing a program and stage displayed on the Upper Display. SET OVEN TEMPERATURE. *Upper Display flashing* Rotate ‘Temp’ knob to select temperature required. + to increase the temperature (Max. 260°C / 500°F). - to decrease the temperature (Min.
- Page 19 Programming SET BAKE STEAM (St0 - St9) / MOISTURE (H-0 - H-5) OPTION. *Upper Display flashing* Rotate ‘Temp’ knob to select Steam setting required. ‘+’ to increase steam / moisture setting. ‘-’ to decrease steam /moisture setting. (Refer to the start of the Operation section, ‘Steam’ / ‘Moisture Mode Optional Settings’, for additional explanation of moisture level adjustment).
-
Page 20: Controller - Operator Settings
Controller - Operator Settings Changing Operator Settings With the Oven in ‘Stand-By’ Mode (i.e. Power to oven but both displays are blank). ENTERING THE OPERATOR SETTING MODE. Press and hold 'Steam' and ‘Timer-Start/Stop’ keys together for 3 seconds. Upper Display will show Lower Display will flash SETTING PASSWORD (OPERATOR PASSWORD - 123). -
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Cleaning Guidelines Door Seal a. To remove, pull out the seal starting at each corner. Caution b. The seal may be washed in the sink, but take care not to cut or damage it. Always turn electrical power mains supply before commencing cleaning. -
Page 22: Periodic Maintenance
Cleaning and Maintenance Side Racks - Removal Oven Lamps a. Remove the LH side rack as shown previously. 1. Lift the side rack off the bottom locating pins. 2. Move the bottom of the side rack toward the centre of the oven. -
Page 23: Fault Finding
Fault Finding This section provides a reference to the more common problems You may encounter a problem not covered in this section, please that may occur during the operation of your oven. This fault finding contact your service provider who will require the following guide is intended to help you correct and accurately diagnose information:- problems with your oven. -
Page 24: Electrical Schematics
Electrical Schematics Electrical Schematic E35D6 Turbofan Oven. 1 Phase (1P+N+E) 208-240V Models... - Page 25 Electrical Schematics Electrical Schematic E35D6 Turbofan Oven. 3 Phase (3P+Gnd) 208-240V Models...
- Page 26 Electrical Schematics Electrical Schematic E35D6 Turbofan Oven. 3 Phase (3P+N+E) 380-415V Models...
-
Page 27: Replacement Parts List
For further information and servicing instructions, contact your nearest authorized service provider or Turbofan Dealer. When ordering replacement parts, please quote the part number and the description as listed below. If the part required is not listed below, request the part by description and quote model number and serial number which is shown on the Technical Data Plate. - Page 28 Replacement Parts List Part No. Description 024802 Door Microswitch 235354 Door Switch Return Spring 017929 Damper Rod Clip 231438 Door Seal 236885 Gasket - Door Switch / Oven Temp Probe 239519 Door Inner Glass 239512 Door Outer Glass Assy 236198 Door Latch Cover 235859 Door Handle Assembly...
-
Page 29: Appendix 1 - Reversing The Oven Door
180° 3. Remove the upper pivot pin and refit to the oven door. and washer. Take care to Ensure that the Turbofan Logo is at the bottom of the support the oven door. door 4. Carefully open door and lift... -
Page 30: Oven Door Adjustment
Appendix 1 - Reversing the Oven Door Oven Door - Adjustment Door Position Adjustment (Vertical Alignment): Door Latch Adjustment: Neoprene Seal 1. To adjust the door vertical alignment, open oven door. 1. Open oven door to Lock Nut reveal the locking dog. 2.
