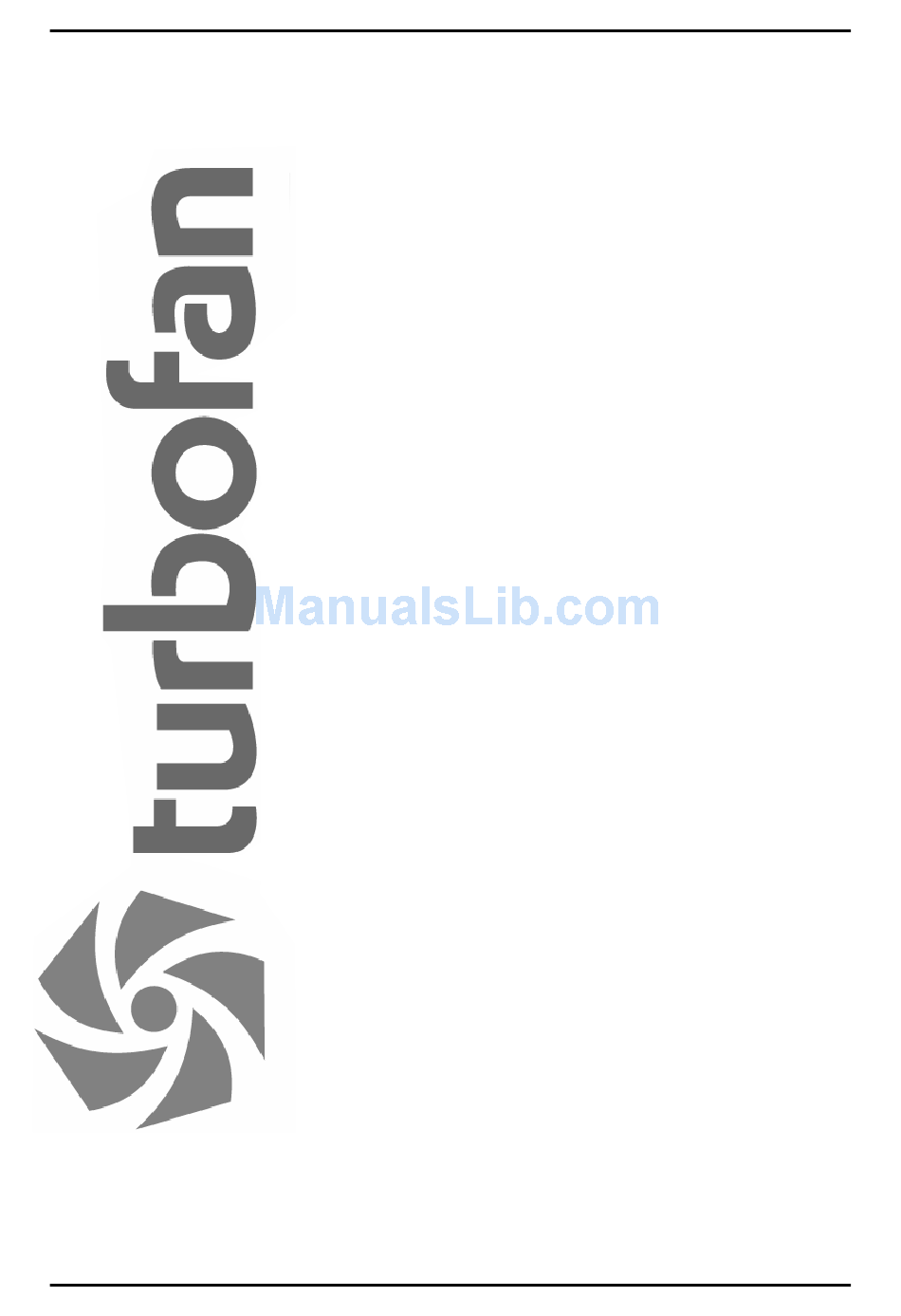

- Page 1 INSTALLATION / OPERATION MANUAL E9311 CONVECTION OVEN RANGE F23967-8...
- Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Units 6-7, Mount Street Business Park Mount Street, Nechells Birmingham B7 5QU (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
-
Page 3: Table Of Contents
Contents Introduction ......................2 Installation ......................3 Before Connection Location Electrical Connection Before Use Specifications.....................5 Operation ......................6 Hob Operation Guide Description of Oven Controls Baking Roast ‘n’ Hold Grilling / Broiling Cooking Guide ....................11 Cooking Bake Off Roasting Roast ‘n’ Hold Cleaning and Maintenance................13 Trouble Shooting .....................14 Oven Baking... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your TURBOFAN RANGE, and it will become a most valued appliance in your commercial kitchen. A new range can seem very complex and confusing at first glance. To ensure you receive the utmost benefit from your new Turbofan, there are two important things you can do. -
Page 5: Installation
Installation Installation Requirements It is most important that this range is installed correctly and that operation is correct before use. Installation shall comply with local electrical, health and safety requirements. Before Connection to Power Supply • Remove all packing. • Check equipment and parts for damage. -
Page 6: Electrical Connection
Installation Electrical Connection Oven • Ensure unit is fitted with appropriate cord and plug. • To access the electrical connection terminal block, grounding lug (marked with green), and strain relief, remove the back panel (4 screws). • To access the electrical connection terminal block, remove the back panel of the hob (4 screws). WARNING - THIS APPLIANCE MUST BE GROUNDED Important: THIS APPLIANCE HAS INDEPENDENT ELECTRICAL CIRCUITS FOR THE OVEN AND HOB. -
Page 7: Specifications
Specifications E9311 ELECTRICAL ENTRY ELECTRICAL ENTRY Front Side Plan Electrical Connection Oven: 230-240V AC 50Hz, 13.0A, 3.1kW @ 240V Hob: 230-240V AC 50Hz, 27.0A, 6.5kW @ 240V... -
Page 8: Operation
Operation Hob Operation Guide DO NOT PLACE HOT COOKING VESSELS ON OVEN CONTROL AREA Disc Elements Before using for the first time, heat the element on HI for three minutes. This will product some smoke which will soon disappear. With continued use the "red spot" and stainless steel trim ring may discolour. This is a natural result of heat and does not affect the operation of the element. -
Page 9: Description Of Oven Controls
Operation Oven Operation Guide Description of Controls Power Depress to switch power on or off (switch illuminates when power is on). Thermostat Temperature range 50 - 250°C (120 - 550°F). Indicator illuminates when the elements are cycling ON to maintain set temperature. Grill/Broil position - The grill/broil indicator will illuminate indicating that the grill/broil function has been set. - Page 10 Operation Baking 1. Turn power on Power switch illuminates when it is depressed and latched in the down position. 2. Set thermostat to desired temperature The heating indicator light will illuminate whenever the elements are cycling on to maintain the set temperature. 3.
- Page 11 Operation Roast ‘n’ Hold 1. Turn power on Power switch illuminates when it is depressed and latched in the down position. 2. Set thermostat to desired temperature The heating indicator light will illuminate whenever the elements are cycling on to maintain the set temperature.
-
Page 12: Grilling / Broiling
Operation Grilling / Broiling 1. Grilling / Broiling Turn thermostat fully clockwise until the GRILL/BROIL position is reached. The GRILL/ BROIL indicator will illuminate indicating that the GRILL/BROIL function has been set. The heating indicator will also illuminate whenever the element is on. It is recommended that the GRILL/BROIL mode is only used with the oven door open as the oven fan is then automatically off. -
Page 13: Cooking Guide
Cooking guide This TURBOFAN oven will cook a greater quantity of food faster, at a lower temperature and more evenly than an ordinary oven. As many excellent recipe books are published, it is not our intention to list recipes, but to provide a temperature and time chart as a guide. -
Page 14: Roasting
Cooking guide Roasting Set the oven temperature to 150-170°C (300°F-340°F). The hot air circulating in the oven reduces moisture loss and shrinkage. Roasting times are reduced by approximately 10 minutes per kg. MEAT TIME per kg Beef - Rare 30-40 min Beef - Medium 40-50 min Beef - Well Done... -
Page 15: Cleaning And Maintenance
Cleaning Cleaning Guidelines Caution: ALWAYS TURN OFF THE POWER SUPPLY BEFORE CLEANING. THIS UNIT IS NOT WATER PROOF. DO NOT USE WATER JET SPRAY TO CLEAN INTERIOR OR EXTERIOR OF THIS UNIT. Exterior Clean with a good quality stainless steel cleaning compound. Harsh abrasive cleaners may damage the surface. -
Page 16: Trouble Shooting
Trouble-shooting Oven trouble-shooting Fault Possible Cause Remedy The oven does not operate / start. The mains isolating switch on the Turn on. wall, circuit breaker or fuses are “off” at the power board. The power switch on the oven is Depress switch. -
Page 17: Oven
Trouble-shooting Baking trouble-shooting Moist sticky crust Too much sugar. Hump or cracks on top Too much flour. Oven too hot. Heavy compact textures Too much shortening. Too much sugar. Oven not hot enough. Over beating. Undersized cake Too large a pan. Oven too hot. -
Page 18: Spare Parts
Spare parts Replacement Part List 002888 Element Dia 160mm (1500W) 002920 Element Dia 180mm (2000W) 024701 Energy Regulator 002754 Indicator Light 003047 Energy Regulator Knob 003049 Knob Clip Oven Controls 021473 Switch - power 017121 Thermostat 020823 Knob - thermostat / bake timer 020849 Neon indicator 011760... -
Page 19: Circuit Schematic
Circuit schematic...
