- Page 1 E 3 1 D 4 ( D i g i t a l O p e r a t i o n ) I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 234144-18...
- Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...

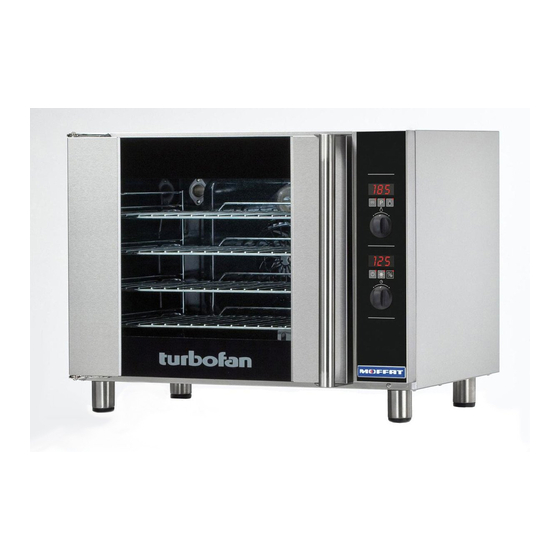

- Page 3 Contents List E31D4 - Turbofan Oven - 4 Tray Convection Oven. Safety Information Installation Requirements Unpacking Location Clearances Stand Mounted Ovens Electrical Connection Positioning and Levelling of Oven Initial Start-Up Commissioning Operation Guide Oven Control Panel Using the Oven - Manual Mode...
- Page 4 If you are unsure of any aspect of the installation, instructions or performance of your oven, contact your TURBOFAN dealer promptly. In many cases a phone call could answer your question. Should you contact your TURBOFAN dealer on any matter concerning this oven, please have the information provided opposite, readily available.
-
Page 5: Specifications
Specifications E31D4 Tray Capacity Tray Spacing 208V, 1P+N+E, 50/60HZ, 2.9 kW 4 x GN 1/1 Pan 220V, 1P+N+E, 50/60HZ, 3.1 kW 80 mm / 3⅛” 4 x US ½ Pan 230-240V, 1P+N+E, 50/60HZ, 3.1 kW... -
Page 6: Installation
If you have any questions regarding the proper installation and / or operation of this oven, please contact your local Turbofan distributor. To ensure correct ventilation for the motor and controls, 1. Remove all packaging and transit protection including... - Page 7 Installation This oven must be earthed / grounded. If the supply cord is damaged, it must be replaced by a suitably qualified person in order to avoid a hazard. Each oven should be connected to an adequately protected power supply and an isolation switch mounted adjacent to, but not behind the oven and must be readily accessible to the operator.
-
Page 8: Operation
Operation Turbofan Ovens have been designed to provide simple operation. This oven is intended for use in a commercial kitchen and must only be put to the use for which it was intended, i.e. cooking food product. To use this oven correctly please read the following sections carefully:-... -
Page 9: Set Temperature
Operation To check actual oven temperature during preheat or cooking, press TURN ‘ON’. ‘Temperature’ button. Actual temperature will display briefly on ‘Temperature Display’ before the Press ‘On-Off’ button. display reverts to the pre-set temperature. Temperature Dislay. Temperature Display will show set temperature. Heating ‘On’... -
Page 10: Select A Program
Operation TURN ‘ON’. Press ‘On-Off’ button. Press ‘Programs’ button. Program Mode Indicator Heating ‘On’ Indicator Temperature Dislay. Temperature Display will show program selected. To check oven temperature when in Program Mode, press ‘Temperature’ button. Pre-set temperature will be SELECT A PROGRAM shown briefly on ‘Temperature Display’, then the actual oven + to scroll forward through programs. -
Page 11: Enter Programming Mode
Operation Oven can be pre-programmed with up to 20 Program’s. When you receive your oven, the controller is not programmed. To set programs, carry out the following for each program required:- ENTER PROGRAMMING MODE. Press ‘Programs’ button to enter ‘Programming’ mode. SELECT PROGRAM REQUIRED Rotate ‘Temperature Control’... -
Page 12: Operator Accessible Parameters
Operator Accessible Parameters With the Oven in ‘Stand-By’ mode:- ENTER THE OPERATOR PARAMETER MODE. Press 'Grill / Broil' and 'Start / Stop' buttons together. ‘Temperature’ Display w ill show ‘PAS’. The ‘Time’ Display w ill flash. SET PASSWORD Rotate ‘Timer Control’ to set password; (123) (Operator Password). -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance d. Clean all racks with a mild anti bacterial detergent and hot water, using a soft bristled brush. e. Dry the racks thoroughly with a dry cloth. f. To refit the racks, engage the locating pins at the rear of side rack into the locating holes in the rear of the oven. - Page 14 Cleaning and Maintenance Door Seal Door Glass Cleaning a. To remove door seal, pull the 1 piece seal forward Ensure that the oven door is cool before cleaning until it pulls out of the location groove around the oven. Note the way the seal is fitted to the oven, the oven door glass.
-
Page 15: Fault Finding
Fault Finding This section provides a reference to the more common You may encounter a problem not covered in this section, problems that may occur during the operation of your please contact your service provider who will require the oven. This fault finding guide is intended to help you following information:- correct and accurately diagnose problems with your oven. -
Page 16: Electrical Schematics
Electrical Schematics... -
Page 17: Replacement Parts List
For further information and servicing instructions, contact your nearest authorized service provider or Turbofan Dealer. When ordering replacement parts, please quote the part number and the description as listed below. If the part required is not listed below, request the part by description and quote model number and serial number which is shown on the Technical Data Plate. -
Page 18: Appendix 1 - Oven Door Reversal
Appendix 1 - Oven Door Reversal 11. Remove inner glass latching studs and fit to opposite side of door using Loctite Refit all screw fasteners using a low-mid strength 243 to secure. thread locking adhesive unless otherwise stated. Door reversal should only be carried out by a suitably competent person. - Page 19 Appendix 1 - Oven Door Reversal 18. Remove Blanking Screw and Door Catch from front of oven and swap around (refer ‘Adjusting Door Catch’). Check alignment and operation of the door. Ensure that the door is correctly aligned horizontally and vertically. Door Catch Blanking Screw 1.
