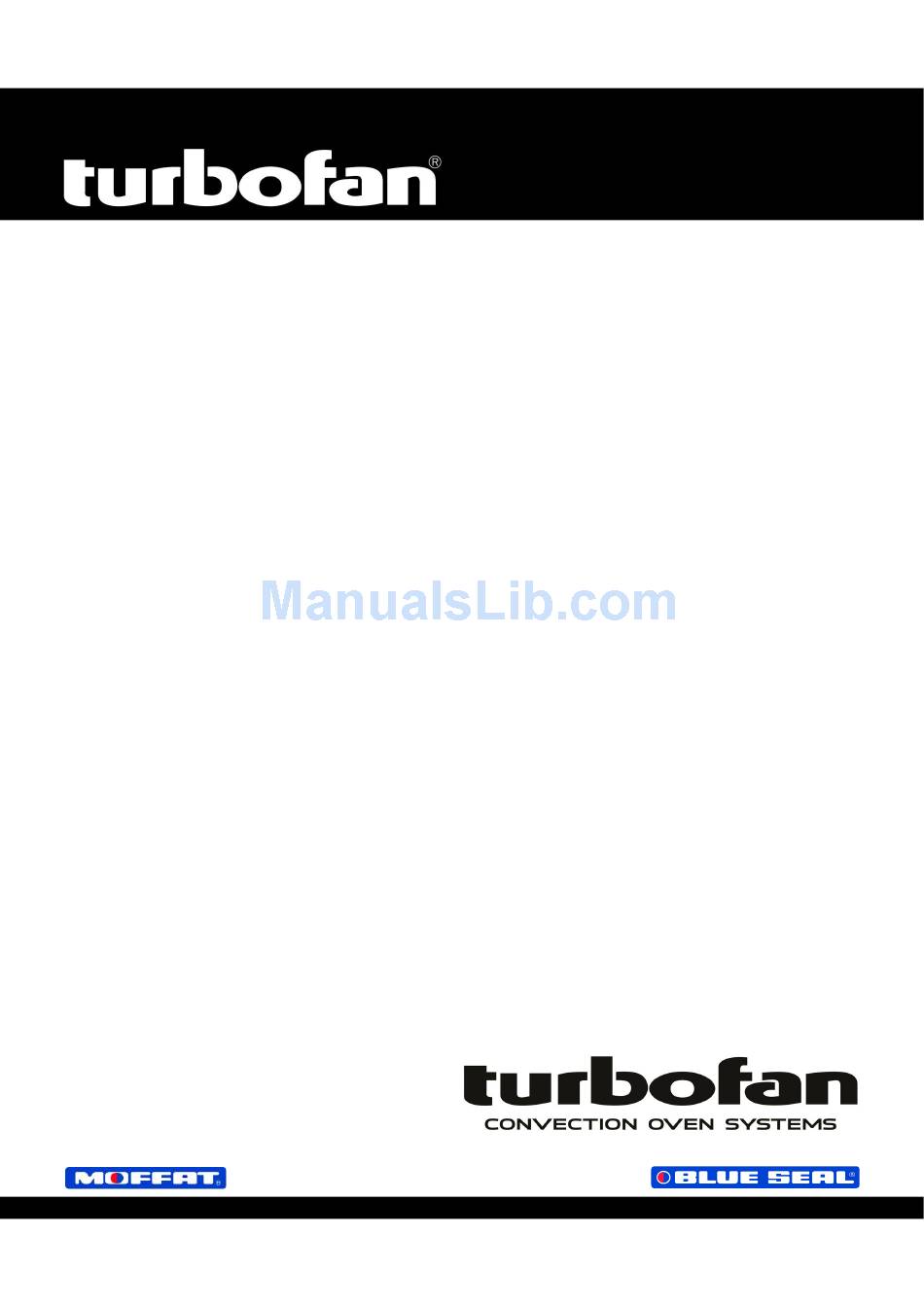

- Page 1 20MSERIES E 2 0 M S e r i e s ( M a n u a l O p e r a t i o n ) I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 234090-9...
- Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) (03) 9518 3888 (fax) (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
-
Page 3: Table Of Contents

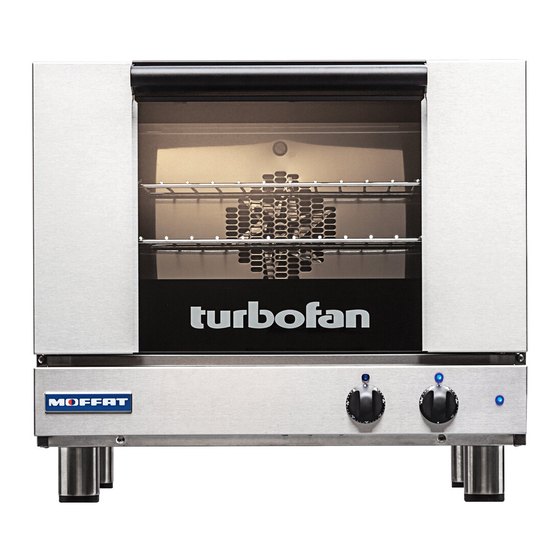

Contents List E20M Series Turbofan Convection Ovens. Model Numbers Covered in this Manual E22M3 - Turbofan Oven - 3 Tray Convection Oven. E23M3 - Turbofan Oven - 3 Tray Convection Oven. E27M2 - Turbofan Oven - 2 Tray Convection Oven. -
Page 4: Introduction
If you are unsure of any aspect of the installation, Dealer: instructions or performance of your oven, contact your TURBOFAN dealer promptly. In many cases a phone call could answer your question. Service Provider: Should you contact your TURBOFAN dealer on any matter concerning this oven, please have the information provided opposite, readily available. -
Page 5: Specifications
Specifications E22M3 E23M3 E27M2 / E27M3 E28M4 Oven Tray Details Oven Power Ratings Tray Capacity Tray Spacing 110-120V, 1P+N+E, 60HZ, 1.5 kW 3 x EN Tray E22M3 E22M3 70 mm / 2 ” 3 x US ½ Pan 220-240V, 1P+N+E, 50/60HZ, 2.0 kW 208V, 1P+N+E, 50-60 HZ, 2.7 kW... -
Page 6: Installation
It is most important that this oven is installed correctly and that oven operation is correct before use. If you have any questions regarding the proper installation and / or operation of this oven, please contact your local Turbofan distributor. Unpacking Clearances 1. -
Page 7: Electrical Connection
Installation Electrical Connection Warning This oven must be earthed / grounded. If the supply cord is damaged, it must be replaced by a suitably qualified person in order to avoid a hazard. Each oven should be connected to an adequately protected power supply and an isolation switch mounted adjacent to, but not behind the oven and must be readily accessible to the operator. -
Page 8: Operation
Operation Operation Guide Turbofan Ovens have been designed to provide simple operation. This oven is intended for use in a commercial kitchen and must only be put to the use for which it was intended, i.e. cooking food product. -
Page 9: Cleaning And Maintenance
Refit the wire oven racks to the oven. To keep your oven clean and operating at peak efficiency, Fan Baffle (Not E22M3) follow the procedures shown below:- a. Remove side racks as shown previously. - Page 10 Cleaning and Maintenance Lamp Glass (Not E22M3) Oven Interior a. With side racks and fan baffle removed, unscrew Allow the oven interior to cool to approx 50˚C / lamp glass, anti-clockwise. 120˚F before commencing cleaning. a. Remove the oven racks and the fan baffle as shown previously.
-
Page 11: Periodic Maintenance
Cleaning and Maintenance d. Whilst still holding the oven door in the open d. Grasp inner glass firmly on either side and pull position, clean the inner glass and the inside of the upwards to remove inner glass from locating pegs outer glass with a conventional glass cleaner. -
Page 12: Fault Finding
Bake timer does not time down. required. Bake timer faulty. Call for service. Oven light not illuminating (Not E22M3). Blown bulb. Replace bulb. Too high a temperature selected. Select a lower temperature. -
Page 13: Electrical Schematics
Electrical Schematics 110-120V, 60Hz. Electrical Schematic E22M3 Turbofan Oven 220-240V 50/60Hz. Electrical Schematic E23M3 Turbofan Oven 208V, 50-60Hz. 220V, 50-60Hz. 230-240V, 50-60Hz. - Page 14 Electrical Schematics Electrical Schematic E27M2 Turbofan Oven 208V, 50-60Hz. 220V, 50-60Hz. 230-240V, 50-60Hz. Electrical Schematic E27M3 Turbofan Oven 208V, 50-60Hz. 220V, 50-60Hz. 230-240V, 50-60Hz. Electrical Schematic E28M4 Turbofan Oven 208V, 50-60Hz. 220V, 50-60Hz. 230-240V, 50-60Hz.
-
Page 15: Replacement Parts List
For further information and servicing instructions, contact your nearest authorized service provider or Turbofan Dealer. When ordering replacement parts, please quote the part number and the description as listed below. If the part required is not listed below, request the part by description and quote model number and serial number which is shown on the Technical Data Plate. - Page 16 Replacement Parts List Replacement Parts List (Continued). Item Description E27M2 / M3 233521 Side Rack LH, E22 233522 Side Rack RH, E22 232682 Side Rack LH, E23 232683 Side Rack RH, E23 233558 Side Rack LH, E27M3 M3 only ...
