Summary of Contents for Multitech MultiConnect Dragonfly MTQ-L1G2D

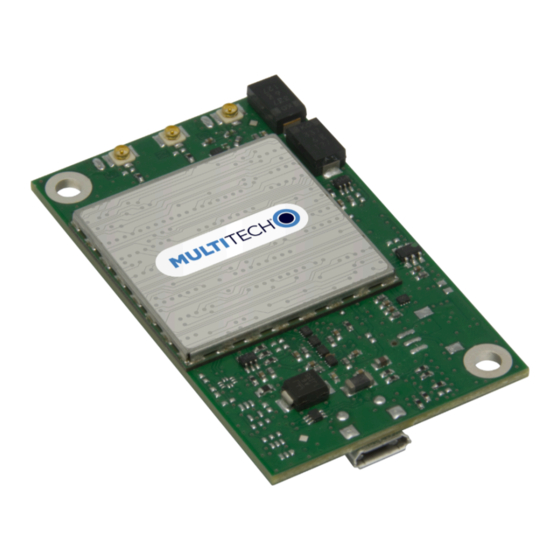

- Page 1 ® MultiConnect Dragonfly MTQ-L1G2D Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................6 Overview ..................................6 Product Build Options ..............................6 Documentation ................................6 Chapter 2 – Mechanical Drawings..........................7 MTQ-L1G2D-B02 Models .............................. 7 Chapter 3 – Hardware and Specifications......................... 8 Specifications ................................8 40-Pin Connector Definitions ............................ - Page 4 CONTENTS FCC Grant Notes................................ 20 Host Labeling................................20 Chapter 6 – Safety Information ..........................21 Handling Precautions ..............................21 Radio Frequency (RF) Safety ............................21 Sécurité relative aux appareils à radiofréquence (RF)....................21 General Safety................................22 Interference with Pacemakers and Other Medical Devices ..................22 Potential interference ...............................
- Page 5 CONTENTS Main tab..................................40 Settings tab ................................41 Connection tab................................41 Details tab ................................. 41 Terminal tab................................41 Charts tab.................................. 41 Troubleshooting ................................42 Serial COM port is not available in the Serial Modem Settings................42 Device is not detected ("No Device") ........................42 USB Modem is not detected .............................
-
Page 6: Chapter 1 - Product Overview
The MultiTech Dragonfly embedded cellular modems are carrier approved and end-device certified, decreasing time to market while saving customers money. -
Page 7: Chapter 2 - Mechanical Drawings
MECHANICAL DRAWINGS Chapter 2 – Mechanical Drawings MTQ-L1G2D-B02 Models ® MultiConnect Dragonfly MTQ-L1G2D Device Guide... -
Page 8: Chapter 3 - Hardware And Specifications
HARDWARE AND SPECIFICATIONS Chapter 3 – Hardware and Specifications Specifications Category Description General Standards LTE FDD CAT 1 3GPP Release 10 HSPA+ 21/GPRS fallback TCP/IP Functions FTP, SMTP, TCP, UDP Frequency Bands 4G: B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28 3G: B1, B2, B4, B5, B6, B8, B19 2G: B2, B3, B5, B8 One, link status... -
Page 9: 40-Pin Connector Definitions
HARDWARE AND SPECIFICATIONS Category Description Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 22H, 24E, 27, 90 CE Mark, RED (EU) UKCA Safety Compliance UL 62368-1 cUL 62368-1 IEC 62368-1 Network Compliance PTCRB Carrier AT&T/Verizon Radio performance may be affected by temperature extremes. - Page 10 HARDWARE AND SPECIFICATIONS Pin Definitions Signal Name Logic Level Voltage In/Out Description Voltage Ground Connection USB-DATA+ See USB 2.0 Spec for 3.6V USB Data+ connection to cellular levels module USB-DATA- USB Data- connection to cellular module VCC-IN 2.75V - 5.25V 5.25V Power Input Main Power RADIO_RXD...
-
Page 11: 40-Pin Connector
HARDWARE AND SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description Voltage SPI_SRDY 0 - 3V Cellular Radio SPI Ready. Open drain outputs with 47K pull up to SPI_MISO 0 - 3V Cellular Radio MISO. Open drain outputs with 47K pull up to 3V. SPI_CS2 0 - 3V Cellular Radio SPI CS. - Page 12 HARDWARE AND SPECIFICATIONS Description: .5mm 40 pin B.B header PLUG Model Number: DF17(2.0)-40DP-0.5V(57) ® MultiConnect Dragonfly MTQ-L1G2D Device Guide...
-
Page 13: Electrical Characteristics
HARDWARE AND SPECIFICATIONS Electrical Characteristics Operating Conditions Parameter Minimum Volts Maximum Volts Supply Range - Vcc 2.75 5.25 Absolute Maximum Rating Parameter Minimum Volts Maximum Volts Voltage at any signal pin -0.3 DC Electrical Characteristics Parameter Conditions Minimum Volts Maximum Volts Digital signal input low level CMOS port -0.3... -
Page 14: Power Draw - Mtq-L1G2D-B02
HARDWARE AND SPECIFICATIONS Power Draw - MTQ-L1G2D-B02 Multi-Tech Systems, Inc. recommends you incorporate a 10% buffer into your power source when determining product load. Note: Maximum Power: The continuous current during maximum data rate with the radio transmitter at maximum power. Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection. -
Page 15: Chapter 4 - Getting Started
Use USB 3.0 ports if available. These ports are typically rated for more current. The USB cable is available through MultiTech. The part number is CA-USB-A-MICRO-B-3. Device Drivers Install drivers on your computer before connecting the device. -
Page 16: Communicating With The Device
USB connector on the device. There is no connection to pins 6 and 7 on the developer board. Establish serial communication using Multitech developer board MTUDK2. See the Universal Developer Kit 2.0 Developer Guide (PN S000610) for more information. -
Page 17: Chapter 5 - Antennas
Chapter 5 – Antennas External Antenna Option Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz... -
Page 18: Sma To U.fl Cables
ANTENNAS SMA to U.FL Cables The developer kit includes three 4.5" SMA to U.FL cables which are preinstalled on the developer board. Consult the mechanical drawings for your device to determine which antenna to connect to which U.FL connector on the device. -
Page 19: Using Antenna Diversity
ANTENNAS Antenna diversity provides an advantage in complex environments because if one receive antenna has a poor signal due to an interference null pattern, the other antenna is likely not in the null and has better reception. The radio compares the reception from both receive antennas and uses the one with the strongest signal. Antenna diversity is unnecessary when the device has an unobstructed signal path from the cell tower, such as in a flat area away from buildings. -
Page 20: Oem Integration
ANTENNAS OEM Integration FCC & IC Information to Consumers The user manual for the consumer must contain the statements required by the following FCC and IC regulations: 47 C.F.R. 15.19(a)(3), 15.21, 15.105 and RSS-Gen Issue 3, Dec 2010; 7.1.2 and 7.1.3 FCC Grant Notes The OEM should follow all the grant notes listed below. -
Page 21: Chapter 6 - Safety Information
SAFETY INFORMATION Chapter 6 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge use proper precautions, such as an ESD strap, when handling any cellular device to avoid exposure to electronic discharge during handling and mounting the device. Radio Frequency (RF) Safety Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. -
Page 22: General Safety
SAFETY INFORMATION General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations. -
Page 23: Device Maintenance
Do not expose the device to water, rain, or spilled beverages. It is not waterproof. Exposure to liquids could result in damage to the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with the device's accessory specifications may invalidate the warranty. -
Page 24: Chapter 7 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered. -
Page 25: Chapter 8 - Regulatory Information
REGULATORY INFORMATION Chapter 8 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 26: Fcc Grant Information
REGULATORY INFORMATION FCC Grant Information FCC Identifier: RI7LE910CXWWX Equipment Class: Part 15 Class B Computing Device Peripheral Notes: 4G/3G/2G Module Modular Type: Single Modular FCC Rule Parts: FCC Identifier: RI7LE910CXWWX Equipment Class: PCS Licensed Transmitter Notes: 4G/3G/2G Module Modular Type: Single Modular FCC Rule Parts: 9, 22H, 24E, 27,... - Page 27 REGULATORY INFORMATION Rule Parts Frequency Range Power Output Frequency Tolerance Emission Designator 1.8502-1.9098 GHz 580 mW 2.5 ppm 243KG7W 1.8524-1.9076 GHz 398 mW 2.5 ppm 4M14F9W 2.5-2.57 GHz 365 mW 2.5 ppm 18M0G7D 2.5-2.57 GHz 291 mW 2.5 ppm 18M0W7D Single Modular Approval.
-
Page 28: Industry Canada Class B Notice
REGULATORY INFORMATION Industry Canada Class B Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur. This device complies with Industry Canada license-exempt RSS standard(s). The operation is permitted for the following two conditions: the device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of... -
Page 29: Industry Canada Grant Information
REGULATORY INFORMATION Industry Canada Grant Information Company Number/Numéro de compagnie: 5131A Company Name/Nom de compagnie:: Telit Communications S.p.A. Certification Number/Numéro d’homologation: 5131A-LE910CXWWX Approval Date/Date d’approbation: Mon Nov 22 16:45:45 EST 2021 Hardware Version Identification Number LE910C1-WWXD (HVIN)/Numéro d’identification de la version du matériel (NIVM): Product Marketing Name (PMN)/Nom de marque du LE910C1-WWXD... - Page 30 REGULATORY INFORMATION Specification Issue Number Frequency Range Emission Power Designator From Min. Max. RSS132 824.7 MHz 848.3 MHz 1M11W7D 245.0 mW 245.0 mW RSS132 824.7 MHz 848.3 MHz 1M11G7D 299.0 mW 299.0 mW RSS132 825.5 MHz 847.5 MHz 2M71W7D 257.0 mW 257.0 mW RSS132 825.5 MHz...
-
Page 31: Emc, Safety, And Radio Equipment Directive (Red) Compliance
REGULATORY INFORMATION Specification Issue Number Frequency Range Emission Power Designator From Min. Max. RSS133 1857.5 MHz 1907.5 MHz 13M5G7D 355.0 mW 355.0 mW RSS133 1860.0 MHz 1900.0 MHz 18M0W7D 265.0 mW 265.0 mW RSS133 1860.0 MHz 1900.0 MHz 18M0G7D 323.0 mW 323.0 mW RSS133 1860.0 MHz... - Page 32 Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be downloaded at https://www.multitech.com/red...
-
Page 33: Chapter 9 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 34: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 35: Chapter 10 - Using Connection Manager
Open or unzip the Connection Manager file and run the installer (.msi file). On the MultiTech Connection Manager Setup Wizard Welcome Panel, click Next. Read the end-user license agreement and check I accept the terms in the License Agreement. Click Next. -
Page 36: Setting Up A Serial Device In Windows Device Manager
In the Setup Wizard, click Finish. Note: To open Connection Manager automatically after installation, check Start the MultiTech Connection Manager when the installation is finished. If using a USB device, you can connect the device to the carrier's network with Connection Manager. Refer to Connecting a Device. - Page 37 USING CONNECTION MANAGER Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right. Important: Make sure that you select only Standard 33600 bps Modem.
-
Page 38: Connecting A Device
USING CONNECTION MANAGER Connecting a Device Before You Begin Make sure that your device is connected to the computer where Connection Manager is installed. If you have a serial device, set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 39: Uninstalling Connection Manager
The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages. -
Page 40: Connection Manager User Interface
USING CONNECTION MANAGER Connection Manager User Interface Connection Manager consists of the following tabs: Main Settings Connection Details Terminal Charts Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note:... -
Page 41: Settings Tab
USING CONNECTION MANAGER Connection statistics: download and upload speeds, amount of traffic sent and received (only when connection to the carrier's network is established) The keep-alive check status and when the last ping response was received if Enable keep-alive check is checked on the Connection tab. -
Page 42: Troubleshooting
USING CONNECTION MANAGER Troubleshooting Serial COM port is not available in the Serial Modem Settings Close Connection Manager and reopen it. Device is not detected ("No Device") After following the steps to activate your device, the Main tab still indicates "No Device." Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. -
Page 43: System Cannot Connect To Serial Device
USING CONNECTION MANAGER System Cannot Connect to Serial Device If your system cannot establish a connection with a serial device, verify Connection Manager settings match modem and serial port settings on the computer. In Connection Manager, click on the Settings tab. In Device Manager, open Modems and then right-click on your device and select open the Properties. - Page 44 USING CONNECTION MANAGER In Device Manager, open Ports (COM & LPT) and then right-click on the Com Port used by your device and select Properties. Click on the Port Settings tab to confirm the Bits per second, Date bits, Parity, Stop bits and Flow control match those settings in Connection Manager.
- Page 45 USING CONNECTION MANAGER ® MultiConnect Dragonfly MTQ-L1G2D Device Guide...
-
Page 46: Index
INDEX Index absolute maximum rating ..........13 activation...............35 grant notes...............20 antenna .................17 FCC grant...............26 connecting ...............18 FCC Notice diversity..............18 Class B ..............25 AT#SHDN ...............16 hazardous substances ...........34 build options ..............6 host labeling..............20 cable................18 Industrie Canada ............28 Class B ................25 Industry Canada ............28 29 Industry Canada ............28 Class B ..............28 communicating with the device........16... - Page 47 INDEX connector definitions..........9 specifications..............8 pin connector ..............11 static................21 power down ..............16 sécurité power draw..............14 interférences RF............21 radio frequency interference........21 troubleshooting regulatory information..........26 Connection Manager ..........42 RoHS................34 U.FL ................18 safety user responsibility............23 modem..............22 RF interference ............21 vehicle..............22 shutdown ..............16 vehicle safety ..............22 SIM card, installing............15 SMA to U.FL..............18 SMA to U.FL cable ............18...
