Installation Instructions for
MVP24-48 & MVP30-60 Expansion Cards
Both the MVP2410 and the MVP3010 use the same mechanical chassis.
This chassis accommodates a second MultiVOIP circuit card or
motherboard module. The add-on module for the MVP2410 is the
MVP24-48 product; the add-on module for the MVP3010 is the
MVP30-60 product.
To install an expansion card into an MVP2410 or MVP3010, you must:
1. Power down and unplug the MVP2410/3010 unit.
2. Using a Phillips or star-bit screwdriver, remove the blank plate at
the rear of the MVP2410/3010 chassis (see Figure 1). Save the screw.

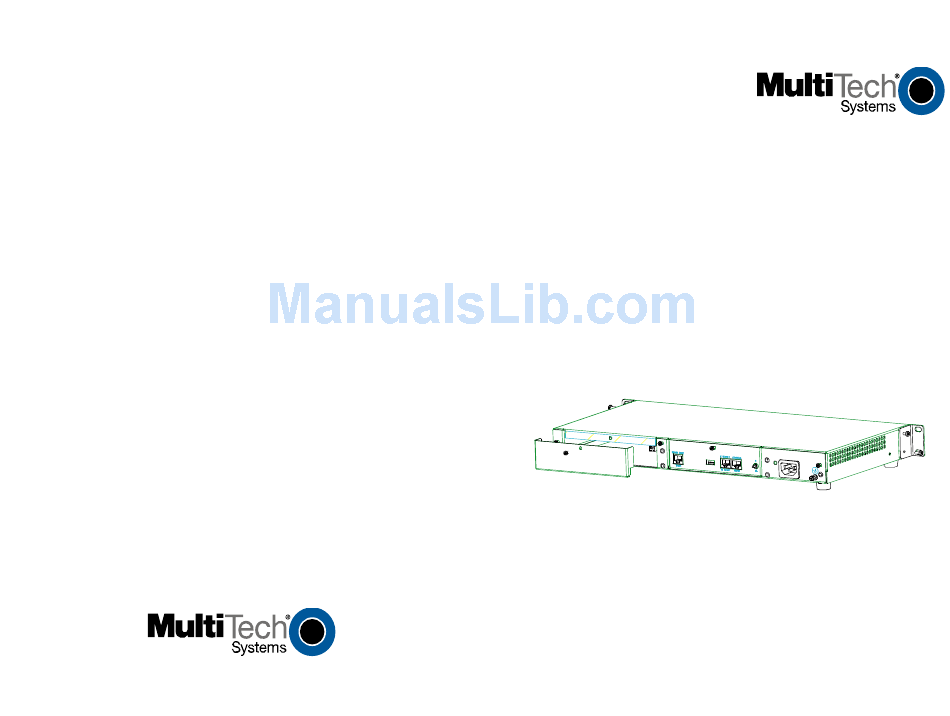

Figure 1: Remove Plate Covering Expansion Slot
82000350L, Rev A., Original Release 06/13/02
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Multitech MVP24-48
Summary of Contents for Multitech MVP24-48
- Page 1 This chassis accommodates a second MultiVOIP circuit card or motherboard module. The add-on module for the MVP2410 is the MVP24-48 product; the add-on module for the MVP3010 is the MVP30-60 product. To install an expansion card into an MVP2410 or MVP3010, you must: 1.
- Page 2 Molex Connector Figure 2: MVP2410/3010 Chassis (top/rear view) 4. While keeping the power cable out of the way, fit the MVP24-48 or MVP30-60 card into the grooves of the expansion slot. Push it in far enough to allow connection of the power cable to the receptacle on the vertical plate of the expansion card.
