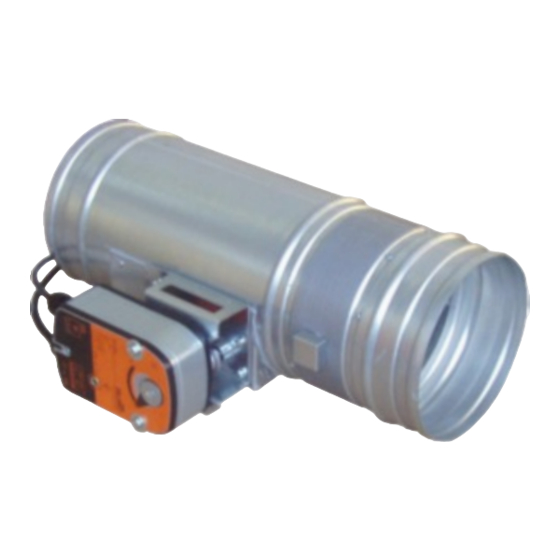

Mandik MSD Manual

Multi smoke damper
Hide thumbs Also See for MSD:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Mandik MSD

Summary of Contents for Mandik MSD

  • Page 2: Table Of Contents

    These technical specifications state a row of manufactured sizes and models of multi smoke dampers (further only dampers) MSD. It is valid for production, designing, ordering, delivery, maintenance and operation. 1. Description......................... 2. Design..........................3. Communication and control devices..................11 4.

  • Page 3: Description

    - class min. 2, for max. dimension 1500 x 800 mm min. class 3 acc. to EN 1751 • Cycling test in class C 10000 acc. to EN 12101-8 (design MSD-W is tested without load) • ES Certificate of conformity No. 1391-CPR-2016/0123 for MSD •...

  • Page 4: Design

    Temperature in the place of installation is permitted to range from - 30°C to + 50°C. Design with actuating mechanism MSD (MSD-W) is equipped by actuating mechanism Belimo BLE24(BE24-12) for 24V supply or BLE230(BE230-12) for 230V supply. MSD with big dimensions is equipped by actuating mechanism Schischek InMax 50.75-S (dual supply 24V or 230V).
  • Page 5 Connection through an insulation transformer. BLE24-ST: Design with connector plugs for communication to network and communication device BKNE230-24 <3° <87° Parrallel connection of other driver is possible. Pay attention to the power input data. <3° <87° Parrallel connection of other driver is possible. Pay attention to the power input data.
  • Page 6 Connection through an insulation transformer. BE24-12-ST: Design with connector plugs for communication to network and communication device BKNE230-24 <3° <87° Parrallel connection of other driver is possible. Pay attention to the power input data. <3° <87° Parrallel connection of other driver is possible. Pay attention to the power input data.
  • Page 7 Integrated aux. switches 24...230 VAC/DC max 24V/3A, 240V/0,25A switching at 5° and 85°. <5° >85° 1 2 3 4 5 6 heater Design with the communication and supply device Design with the communication and supply device BKNE230-24 and the actuating mechanism BLE24(BE24-12)-ST.
  • Page 8 Design with electric actuating mechanism with emergency function and electromagnet MSD-W is always equipped by electric actuating mechanism BFN 230-T, BFN 24-T, DAF2.20S or DAF1.20S (further only "actuating mechanism") and is complemented with initiation by means of an electromagnet (solenoid). After being connected to power supply AC/DC 24V or 230V, the actuating mechanism displaces the damper blade into operation position "CLOSED"...
  • Page 9 Electromagnet (solenoid) Electromagnet (solenoid) Pulse switch Pulse switch Actuating mechanism Actuating mechanism AC 230 V 50/60Hz Nominal voltage AC 24V 50/60Hz DC 24 V Power consumption - motoring - holding 2,5 W 7 VA (Imax 150 mA @ 10 ms) Dimensioning 7 VA (Imax 5,8 A @ 5 ms) Protection class...
  • Page 10 For separation from the mains, a device that N L1 insulates polar conductors must be at disposal (Minimum distance between contacts - 3 mm). <5° <80° Parrallel connection of other driver is possible. Pay attention to the power input data. AC 230 V 50/60Hz Nominal voltage AC 24V 50/60Hz...

  • Page 11: Communication And Control Devices

    Nominal voltage AC 230 V / 50 Hz Dimensioning 1,2 A Degree of protection IP 40 Ambient temperature -10 °C … +40 °C range Connecting cabel 1m, 3x0,75mm BKSE24-6 indicates operating status and fault signals for the smoke extraction dampers. The auxiliary contacts that are incorporated also allow functions to be signaled or passed on to higherlevel control systems.

  • Page 12: Dimensions, Weights

    Input 1 Input 2 (isolated) SMOKE EXTRACTION AUTO CEASE SMOKE EXTRACTION AC 24 V Connection through a1...a6 an insulation transformer. Delay 0 s (Fan) Delay 60 s (Fan) a1...a6 OPEN CLOSED *Fault (Error) *Inverted output: fault = contact open Dimensions Position: Damper blade Access door/ inspection cover...
  • Page 13 Position: Damper blade Access door/ inspection cover Actuating mechanism Electromagnet (solenoid) Pulse switch SIEM24 300 / 370 / 430 * 168 / 171 / 220 * Position: Damper blade Access door/ inspection cover Insulation box Protective cladding boards...
  • Page 14 168 / 171 / 220 * 300 / 370 / 430 * Position: Damper blade Access door/ inspection cover Insulation box Position: Damper blade Access door/ inspection cover Actuating mechanism...
  • Page 15 Position: Damper blade Access door/ inspection cover Actuating mechanism Electromagnet (solenoid) Pulse switch SIEM24 Weight and effective area 0,0162 11,2 BELIMO BLE 11,7 BELIMO BFN 12,2 BELIMO BLE 0,0191 11,6 BELIMO BLE 12,1 BELIMO BFN 12,6 BELIMO BLE 41,5 0,0228 12,1 BELIMO BLE 12,6...
  • Page 16 0,0185 11,6 BELIMO BLE 12,1 BELIMO BFN 12,6 BELIMO BLE 0,0218 12,0 12,5 13,0 BELIMO BLE BELIMO BFN BELIMO BLE 41,5 0,0259 12,5 BELIMO BLE 13,0 BELIMO BFN 13,5 BELIMO BLE 0,0300 13,1 13,6 14,1 BELIMO BLE BELIMO BFN BELIMO BLE 0,0350 13,7 14,2...
  • Page 17 0,0907 19,9 20,4 20,9 BELIMO BLE BELIMO BFN BELIMO BLE 0,1012 21,1 21,6 22,1 BELIMO BLE BELIMO BFN BELIMO BLE 0,1033 21,3 21,8 22,3 BELIMO BLE BELIMO BFN BELIMO BLE 0,1117 22,3 22,8 23,3 BELIMO BLE BELIMO BFN BELIMO BLE 0,1180 23,0 25,3...
  • Page 18 0,0319 13,7 BELIMO BLE 14,2 BELIMO BFN 14,7 BELIMO BLE 0,0376 14,3 14,8 15,3 BELIMO BLE BELIMO BFN BELIMO BLE 41,5 0,0447 14,9 BELIMO BLE 15,4 BELIMO BFN 15,9 BELIMO BLE 0,0519 15,6 16,1 16,6 BELIMO BLE BELIMO BFN BELIMO BLE 0,0604 16,4 BELIMO BLE...
  • Page 19 0,1469 23,8 26,1 24,8 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,1639 25,2 27,5 26,2 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,1673 25,5 27,8 26,5 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,1809 26,6 28,9 27,6 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,1911 27,5 29,8...
  • Page 20 0,0543 17,4 17,9 18,4 BELIMO BLE BELIMO BFN BELIMO BLE 0,0640 18,1 BELIMO BLE 18,6 BELIMO BFN 19,1 BELIMO BLE 41,5 0,0761 18,9 19,4 19,9 BELIMO BLE BELIMO BFN BELIMO BLE 0,0883 19,8 BELIMO BLE 20,3 BELIMO BFN 20,8 BELIMO BLE 0,1028 20,8 21,3...
  • Page 21 0,2354 29,9 32,3 30,9 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,2627 31,7 BELIMO BLE 34,0 JOVENTA DAFx.20S 32,7 BELIMO BLE 0,2681 32,1 34,4 33,1 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,2899 33,5 BELIMO BLE 35,8 JOVENTA DAFx.20S 34,5 BELIMO BLE 0,3063 34,6 36,9...
  • Page 22 0,0711 20,1 20,6 21,1 BELIMO BLE BELIMO BFN BELIMO BLE 0,0838 20,9 BELIMO BLE 21,4 BELIMO BFN 21,9 BELIMO BLE 41,5 0,0997 22,0 22,5 23,0 BELIMO BLE BELIMO BFN BELIMO BLE 0,1156 22,9 BELIMO BLE 23,4 BELIMO BFN 23,9 BELIMO BLE 0,1346 24,1 24,6...
  • Page 23 0,3002 34,4 BELIMO BLE 36,7 JOVENTA DAFx.20S 35,4 BELIMO BLE 0,3350 36,5 38,8 37,5 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,3419 36,9 BELIMO BLE 39,2 JOVENTA DAFx.20S 37,9 BELIMO BLE 0,3697 38,5 40,8 39,5 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,3906 40,8 42,1...
  • Page 24 0,0991 24,6 25,1 25,6 BELIMO BLE BELIMO BFN BELIMO BLE 0,1168 25,7 26,2 26,7 BELIMO BLE BELIMO BFN BELIMO BLE 41,5 0,1389 27,0 27,5 28,0 BELIMO BLE BELIMO BFN BELIMO BLE 0,1611 28,2 28,7 29,2 BELIMO BLE BELIMO BFN BELIMO BLE 0,1876 29,6 30,1...
  • Page 25 0,4687 46,4 48,7 48,4 BELIMO BLE JOVENTA DAFx.20S BELIMO BE 0,5230 50,2 BELIMO BLE 51,5 JOVENTA DAFx.20S 51,2 BELIMO BE 0,5338 50,7 BELIMO BLE 52,0 JOVENTA DAFx.20S 51,7 BELIMO BE 0,5772 53,0 54,3 54,0 BELIMO BLE JOVENTA DAFx.20S BELIMO BE 0,6098 54,7 56,0...
  • Page 26 0,1663 35,5 36,0 36,5 BELIMO BLE BELIMO BFN BELIMO BLE 0,1960 37,1 37,6 38,1 BELIMO BLE BELIMO BFN BELIMO BLE 41,5 0,2331 39,0 BELIMO BLE 39,5 BELIMO BFN 40,0 BELIMO BLE 0,2703 40,7 43,1 41,7 BELIMO BLE JOVENTA DAFx.20S BELIMO BLE 0,3148 42,9 45,2...
  • Page 27 For square damper the open damper blade overlaps the damper body by the value “c” or “a” and “c”. These values are specified in the Tab. 4.2.1. For round damperthe open damper blade overlaps the damper body by the value “f” These values are specified in the Tab.

  • Page 28: Placement And Assembly

    Multi smoke extraction dampers are designed to remove heat and combustion products (e.g. smoke) from fire compartments according EN1366-8. Multi smoke extraction dampers are designed to horizontal or vertical installation with arbitrary blade axis position. To provide needed access space to the control device, all other objects must be situated at least 350 mm from the control parts of the damper.
  • Page 29 The control mechanism has to be protected (covered) against damage and pollution during installation process. During installation the damper blade must be in position “CLOSED”. The damper body should not be deformed in the course of installation. Once the damper built in, its blade should not grind on the damper casing during opening or closing.
  • Page 30 Installation examples ≥ 50 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m ≥ 100 Construction extracting FIRST fire compartment from following compartment ≥ 50 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m ≥...
  • Page 31 POSITION: Damper MSD - design „IB1„ Solid wall construction extracting first fire compartment from following compartment Fire resistant insulation Fire protection mastic min. thickness 1 mm...
  • Page 32 POSITION: Damper MSD - design „IB1„ Solid wall construction extracting two fire compartments Mortar or gypsum Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³), EIS 90, thickness 60 mm, composed of...
  • Page 33 POSITION: Damper MSD - design „IB1„ Solid wall construction extracting two fire compartments Fire resistant insulation - stone wool Fire protection mastic min. thickness 1 mm Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min.
  • Page 34 ≥ 50 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m ≥ 100 Construction extracting FIRST fire compartment from following compartment ≥ 50 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m Construction extracting FIRST fire compartment from following compartment ≥...
  • Page 35 POSITION: Damper MSD - design „IB1„ Gypsum wall construction extracting first fire compartment from following compartment Fire resistant insulation Fire protection mastic min. thickness 1 mm...
  • Page 36 POSITION: Damper MSD - design „IB1„ Gypsum wall extracting two fire compartments Fire resistant insulation - stone wool Fire protection mastic min. thickness 1 mm Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³), EIS 90, thickness 60 mm, composed of two layers 2x60 mm ³...
  • Page 37 POSITION: Damper MSD - design „IB1„ Gypsum wall extracting two fire compartments Mortar or gypsum Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³), EIS 90, thickness 60 mm, composed of...
  • Page 38 ≥ 50 ≥ 150 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m Duct suitable for multi compartment (insulated) Construction extracting FIRST fire compartment from following compartment ≥ 50 ≥ 150 POSITION: Damper MSD (MSD-W) Mortar or gypsum with min. density 800 kg/m...
  • Page 39 POSITION: Damper MSD - design „IB1„ Solid ceiling construction extracting first fire compartment from following compartment Fire resistant insulation Fire protection mastic min. thickness 1 mm...
  • Page 40 POSITION: Damper MSD - design „IB1„ Solid ceiling construction extracting two fire compartments Fire resistant insulation - stone wool Fire protection mastic min. thickness 1 mm Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min.
  • Page 41 POSITION: Damper MSD - design „IB1„ Solid ceiling construction extracting two fire compartments Mortar or gypsum Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³), EIS 90, thickness 60 mm, composed of...
  • Page 42 POSITION: 1 Damper MSD - design „IB1„ 2 Duct for EXHAUST HEAT AND SMOKE - MULTI 3 Fixing profile C 4 Cement lime plate min. thickness 40 mm (min. density 870 kg/m³) 5 Protection cladding-boards are in line with blade – it is...
  • Page 43 Damper MSD - design „IB1„ Duct for EXHAUST HEAT AND SMOKE - MULTI Fixing profile C Cement lime plate min. thickness 40 mm (min. density 870 kg/m³) Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³),...
  • Page 44 POSITION: 1 Damper MSD - design „IB1„ 2 Duct for EXHAUST HEAT AND SMOKE - MULTI 3 Fixing profile C 4 Cement lime plate min. thickness 40 mm (min. density 870 kg/m³) 5 Protection cladding-boards are in line with blade – it is...
  • Page 45 Damper MSD - design „IB1„ Duct for EXHAUST HEAT AND SMOKE - MULTI Fixing profile C Cement lime plate min. thickness 40 mm (min. density 870 kg/m³) Stone wool bound with use of an organic resin with crushed stone as a refrigerant (min. density 300 kg/m³),...

  • Page 46: Suspension Systems

    The dampers can be suspended using threaded rods and mounting profiles. Their dimensioning depends on the damper's weight. The dampers and duct must be suspended separately. The connected duct must be suspended in such a way that the transfer of all loads from the adjoining ventilation duct to the damper body is completely excluded.

  • Page 47: Pressure Loss

    Pressure loss calculation [Pa] pressure loss [m.s ] air flow speed in nominal damper section [kg.m ] air density coefficient of local pressure loss for the nominal damper section (see Tab. 8.1.1. and 8.2.1.) Determination of pressure loss by using diagram = 1,2 kg.m...
  • Page 48 2,1314 1,6906 1,3782 1,1149 1,0037 0,9288 0,7918 0,6827 0,6003 0,5350 1,9945 1,5804 1,2423 1,0368 0,9748 0,8785 0,7383 0,6367 0,5585 0,4976 1,9207 1,5162 1,1256 0,9994 0,9341 0,8442 0,7137 0,6078 0,5329 0,4772 1,8415 1,4584 1,1032 0,9651 0,9009 0,8068 0,6837 0,5832 0,5125 0,4590 1,7505 1,3782 1,0732...

  • Page 49: Noise Data

    Coefficient of local pressure loss (-) - round dampers 3,546 2,124 1,291 0,877 0,609 0,438 0,328 0,255 0,205 0,173 0,147 0,127 Level of acoustic output corrected with filter A. + 10 log(S) + K [dB(A)] level of acoustic output corrected with filter A [dB] level of acoustic output L related to the 1 m section (see Tab.
  • Page 50 11,5 14,7 16,9 20,1 22,3 24,1 27,2 29,4 31,2 32,6 33,8 16,7 22,1 25,3 27,5 30,7 32,9 34,6 37,8 40,0 41,7 43,2 44,4 24,2 29,6 32,8 35,0 38,1 40,4 42,1 45,3 47,5 49,2 50,7 51,9 30,0 35,4 38,6 40,8 44,0 46,2 47,9 51,1...

  • Page 51: Material

    Damper bodies are supplied in the standard design made of galvanized plate without any other surface finish. Damper blades are made of fire resistant asbestos free boards made of mineral fibres. Fasteners is galvanized. According to the customer's requirements, damper can be made of stainless material. Specifications for stainless-steel models –...

  • Page 52: Inspection, Testing

    The appliance is constructed and and preset by the manufacturer, its operation is dependent on proper installation and adjustment. Dampers are transported by box freight vehicles without direct weather impact, there must not occur any sharp shocks and ambient temperature must not exceed +50°C. Dampers must be protected against mechanic damages when transported and manipulated.

  • Page 53: Entry Into Service And Revisions

    Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: ACTUATING SYSTEM: WEIGHT (kg): YEAR/SER.NO.: MANUAL FIRE PROTEC. CLASS: TPM 109/15 EN 12101-8:2011 Cert. No.: 1391-CPR-2016/0123, DoP: PM/MSD/01/20/1 1391 MANDÍK, a.s. Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: ACTUATING SYSTEM: WEIGHT (kg): YEAR/SER.NO.: MANUAL FIRE PROTEC.

  • Page 54: Ordering Key

    Smoke damper MSD technical specifications design does not include protection box of the actuator and does not include protective cladding boards in line with the blade design does not include protection box of the actuator and includes protective cladding boards in line with the blade...
  • Page 55 Smoke damper MSD-W technical specifications design size - square (rectangular) - round type with actuating mechanism BLE230(BE230-12) with actuating mechanism BLE24(BE24-12) with the communication and supply device BKNE 230-24 and actuating mechanism BLE24(BE24-12)-ST with actuating mechanism BFN230, JOVENTA DAF2.20S with an electromagnet AC 230 V .4M0...
