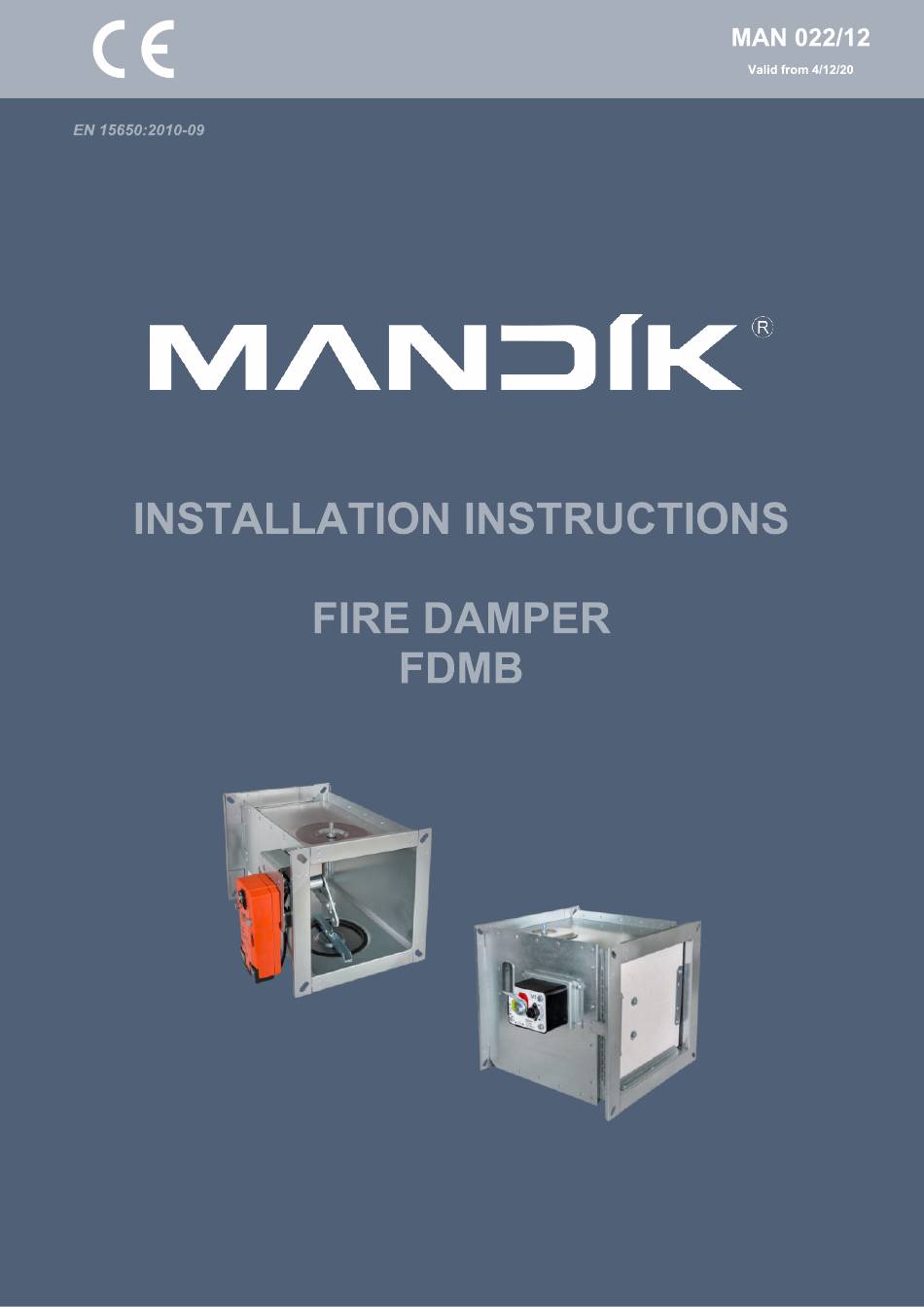

Mandik FDMB Installation Instructions Manual

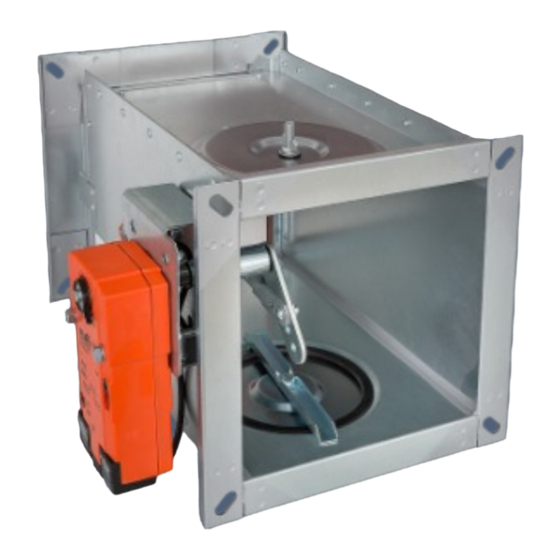

Fire damper
Hide thumbs Also See for FDMB:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Mandik FDMB

Summary of Contents for Mandik FDMB

  • Page 2 ≥ 100** ≤ 75* * Around the perimeter Position: Fire damper Solid wall construction Mortar or gypsum Duct ≥ 100 * Around the perimeter ≥ 20* ≤ 75* Used materials - example: Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Position: Promastop - P, K, Hilti CFS-CT Fire damper...
  • Page 3 ≥ 20 ≤ 75 Used materials - example: HILTI CFS-F FX - EIS 60 ≥ 100 Position: PROMAFOAM-C - EIS 45 Fire damper SOUDAL, Soudafoam FR-B1 - EIS 30 Solid wall construction DenBraven, Fire protection foam - EIS 30 Fire protection foam Stucco plaster Duct...
  • Page 4 ≥ 100 ≥ 20* ≤ 75* * Around the perimeter ≥ 25 Screw ≤ 300 (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). Used materials - example: Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Promastop - P, K, Hilti CFS-CT Position:...
  • Page 5 ≥ 100 ≥ 100 ≥ 100 Position: Fire damper Installation frame Solid wall construction...
  • Page 6 D+60 to 800 max. 2050 D+60 to 800 max. 1650 ≥ 100 Used materials - example: Position: Hilti CFS-CT B 1S 140/50 Fire damper Hilti CFS-CT Solid wall construction Fire resistant board Fire stop coating thickness 1 mm Duct...
  • Page 7 ≤ 75* * Around the perimeter ≥ 100 Position: Fire damper Used materials - example:** Solid wall construction 4 Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1 Mortar or gypsum Stone wool with wired mat on one side, density 66 kg/m³ Insulation materials can be replaced by another approved fire sealing system with equivalent properties.
  • Page 8 ≥ 20* ≤ 75* L=Min. 400 L=Min. 100 T=120 * Around the perimeter T=120 L=variable*** T=60 ≥ 100 Screw ≥ 25 ≤ 300 (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). Used materials - example:** Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Promastop - P, K, Hilti CFS-CT...
  • Page 9 ≥ 100** Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≤ 75* * Around the perimeter Position: Fire damper Gypsum plate Mineral wool (type depending on the type of construction) Mortar or gypsum Duct ≥...
  • Page 10 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 20 ≤ 75 Used materials - example: HILTI CFS-F FX - EIS 60 PROMAFOAM-C - EIS 45 Position: SOUDAL, Soudafoam FR-B1 - EIS 30...
  • Page 11 Installation opening has to ≥ 100 be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 20* ≤ 75* * Around the perimeter Screw ≥ 25 ≤ 300 (min.
  • Page 12 Installation opening has to Installation opening has to be reinforced by steel U- be reinforced by steel U- profile. Profile is fixed by profile. Profile is fixed by screws ≥3,5 mm with corre- screws ≥3,5 mm with corre- sponding length. Distance sponding length.
  • Page 13 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. D+60 to 800 max. 2050 D+60 to 800 max. 1650 ≥ 100 Position: Fire damper Used materials - example: Gypsum plate Hilti CFS-CT B 1S 140/50...
  • Page 14 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≤ 75* Position: * Around the perimeter Fire damper Gypsum plate ≥ 100 Mineral wool (type depending on the type of construction) Used materials - example:** 5 Isover Ultimate Protect SLAB 4.0, th.
  • Page 15 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 20* ≤ 75* L=Min. 400 L=Min. 100 T=120 L=variable*** T=120 * Around the perimeter T=60 ≥...
  • Page 16 ≤ 75** Position: Fire damper Solid ceiling construction * min. 110 - Concrete/ min. 125 - Aerated concrete Mortar or gypsum Duct ** Around the perimeter ≥ 20 ≤ 75 Position: * min. 110 - Concrete/ min. 125 - Aerated concrete Fire damper Used materials - example: Solid ceiling construction...
  • Page 17 ≥ 20** ≤ 75** ≥ 25 ≤ 300 Screw (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). * min. 110 - Concrete/ min. 125 - Aerated concrete ** Around the perimeter Used materials - example: Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50...
  • Page 18 Position: Fire damper Installation frame * min. 110 - Concrete/ min. 125 - Aerated concrete Solid ceiling construction...
  • Page 19 D+60 to 800 D+60 to 800 max. 2050 max. 1650 * min. 110 - Concrete/ min. 125 - Aerated concrete Used materials - example: Position: Hilti CFS-CT B 1S 140/50 Fire damper Hilti CFS-CT Solid ceiling construction Fire resistant board Fire stop coating thickness 1 mm Duct...
  • Page 20 ≤ 75** L=Min. 100 T=120 L=variabel**** T=60 L=Min. 400 T=120 * min. 110 - Concrete/ min. 125 - Aerated concrete ** Around the perimeter Used materials - example:*** Rockwool Conlit Ductrock EIS 90, th. 60 mm Position: Stuffing box, fire protection mastic, cement lime plate and insulation materials can be replaced by another approved fire Fire damper sealing system for damper installation with equivalent material...
  • Page 21 ≤ 750 ≤ 100 Position: Fire damper Solid ceiling construction Concrete B20 * min. 110 - Concrete/ min. 125 - Aerated concrete Rebar Duct ** Around the perimeter...
  • Page 22 For dampers with A ≥ 800 and damper placement outside wall construction is necessary to use reinforcement VRM. Insert part A, B on body of fire damper in correct position Lock screw C It has to be done on each corner of VRM 1) Cut the groove for profil U25x40x25 2) Insert profile into groove 3) Fix profile...
  • Page 23 (60+X)/2 B-X* B+60 B+60 * X=14 (A<160 or B<160) * X=23 (AxB≤500x400) 37,5 * X=36 (AxB>500x400) ** Some countries 20mm flanges (A+40 resp. B+40) Position: Damper casing Mechanics Damper blade Inspection hole covering Sensor sticker Hole for camera (60+X)/2 B-X* B+60 B+60 37,5...
  • Page 24 Damper Mounting plate Sealing cover Seal plates Mounting plate cover Thermal fuse Mechanics Actuator Temperature sensor 10 Sensor sticker...
  • Page 25 During the installation process, the blade position must be “CLOSED”. During the installation process, the control mechanism must be protected against pollution and damage. Fire dampers are suitable for installation in any position in vertical and horizontal passages of fire separating structures.
  • Page 26 min. A(B)+50 (flange 20mm) min. A(B)+70 (flange 30mm) max. A(B)+150 The damper body must not get deformed during its installation process. Once the damper is built installed, its blade must not grind on the damper body during its opening or closing. To provide needed access space to the control device, all the other objects must be situated at least 350 mm away from the damper control parts.
  • Page 27 Flanges of dampers 16,5 16,5 X=23 (AxB≤500x400) X=36 (AxB>500x400) Damper blade overlaps 52,5 97,5 117,5...

  • Page 28: Wiring Diagrams

    Wiring diagrams N L1 S1 S2 <5° <80° S1 S2 <5° <80° N L1 S1 S2 <5° <80° 1(COM) - black wire 2(NC) - gray wire 4(NO) - blue wire AC 230V / 5A This limit switch is possible to connect in following two versions: IP 67 if the arm is moving …...
  • Page 29 Before commissioning the dampers and during their subsequent operational checks, it is necessary to check and functionally test all the designs, including the operation of any electronic elements. Upon commissioning, these operational checks must be completed at least twice a year. If no defect is found during two consecutive operational checks, then operational checks may be completed once a year.
  • Page 30 • The damper bodies are normally supplied in their galvanized sheet steel design (alternatively stainless steel) without any additional surface finish. • The damper blades are made of asbestos-free fire-resistant mineral fibre boards. • The damper control devices are made of galvanized materials (alternatively of stainless steel) without any additional surface finish.
  • Page 31 MANDÍK, a.s. Dobříšská 550 26724 Hostomice Czech Republic Tel.: +420 311 706 706 E-Mail: mandik@mandik.cz www.mandik.com The producer reserves the right for innovations of the product. For actual product information see www.mandik.com...
