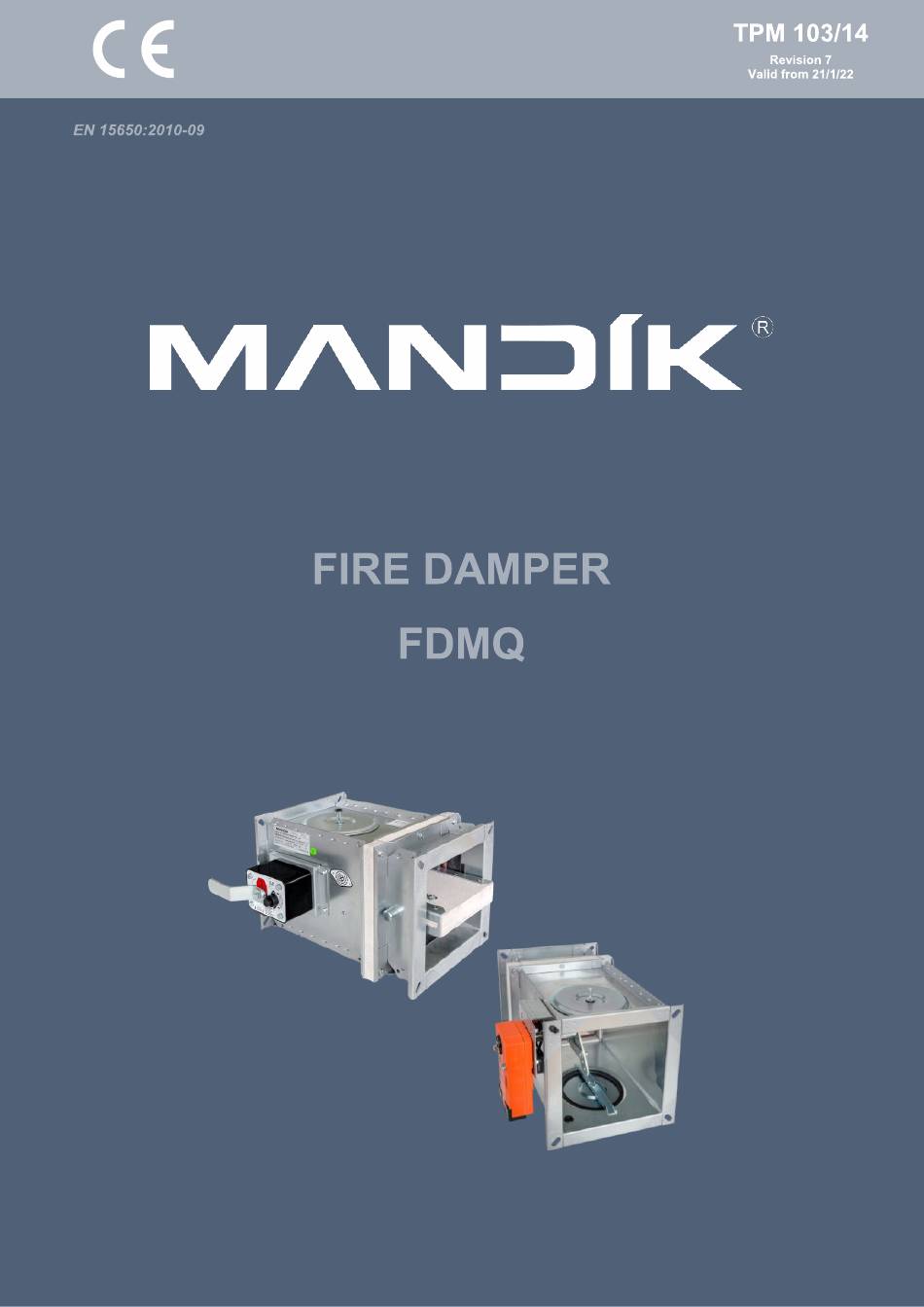

Mandik FDMQ Technical Specifications

Hide thumbs Also See for FDMQ:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Mandik FDMQ

Summary of Contents for Mandik FDMQ

  • Page 2: Table Of Contents

    These technical specifications state a row of manufactured sizes and models of fire dampers (further only dampers) FDMQ. It is valid for production, designing, ordering, delivery, assembly and operation. 1. Description......................... 2. Design..........................3. Communication and control devices..................4. Dimensions, weights and effective area................
  • Page 3 • Cycling test in class C 10 000 acc. to EN 15650 • Corrosion resistant acc. to EN 15650 • ES Certificate of conformity No. 1391-CPR-2021/0144 • Declaration of Performance No. PM/FDMQ/01/21/3 • Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19b Working conditions...
  • Page 4 Design with mechanical control with a thermal protective fuse which actuates the shutting device, after the nominal start temperature 72°C has been reached. Automatic initiation of the shutting device is not activated if the temperature does not exceed 70°C. In case that other start temperatures are required, thermal fuses with nominal start temperature +104°C or +147°C can be supplied (this requirement must be specified in the order).
  • Page 5 1(COM) - black wire 2(NC) - gray wire 4(NO) - blue wire AC 230V / 5A This limit switch is possible to connect in following two versions: IP 67 if the arm is moving … connect wire 1+2 -25°C … +120°C if the arm is moving …...
  • Page 6 Design with actuating mechanism The damper are equipped by Belimo actuators with spring return and thermoelectric activation device of BFL, BFN or BF depending on the damper size (furher mentioned as „actuators“). After being connected to power supply AC/DC 24V or 230V, the actuating mechanism displaces the damper blade into operation position "OPEN"...
  • Page 7 S1 S2 <5° <80° Nominal voltage AC 24 V 50/60 Hz AC 230 V 50/60 Hz DC 24 V Power consumption - motoring 3,5/5 W 2,5/4 W - holding 1,1/2,1 W 0,8/1,4 W Dimensioning 6,5/10 VA (Imax 4 A @ 5 ms) 4/6 VA (Imax 8,3 A @ 5 ms) Protection class Degree of protection...
  • Page 8 Nominal voltage AC 24 V 50/60 Hz AC 230 V 50/60 Hz DC 24 V Power consumption - motoring - holding Dimensioning 10 VA (Imax 8,3 A @ 5 ms) 12,5 VA (Imax 500 mA @ 5 ms) Protection class Degree of protection IP 54 Running time - motor...
  • Page 9 RS-Bus communication relay contact relay contact 24 V DC...
  • Page 10 Design with the communication and supply device BKN 230-24 and the actuating mechanism BF 24-TN-ST (BFL 24-T, BFN 24-T). It simplifies electrical wiring and interconnection of fire flap valves. It facilitates on site check and enables central control and checks of fire damper by means of a simple 2-conductor wiring.
  • Page 11 Bridge has been installed by the manufacturer. If needed, it can be removed ad replaced with a thermoelectric starting mechanism. If terminals 1 and 2 are not interconnected, safety function is initiated. Bridge can be used only for starting and without BKS24… ! Two conductor wiring to BKS24 Design .61 with communication and supply device can be complemented with smoke detector ORS 142 K.
  • Page 12 Design .60 with communication and supply device can be complemented with smoke detector ORS 142 K. For supply and comunnication is used BKN 230-24-MOD, which is used together with the BF 24TN-ST (BFL 24T-ST, BFN 24T-ST) for communication with control systems using the Modbus RTU or BACnet MS / TP protocol.
  • Page 13 External smoke detector, +24 V, max. 50 mA External smoke detector, control input BKN Direct Control, override control input Design with the communication and supply device BKN 230-24MP and actuating mechanism BF 24TL-TN-ST for connection to MP-Bus. BKN 230-24MP supplies to intelligent actuating mechanisms of fire dampers BF 24TL-TN-ST decentrally needed power supply.
  • Page 14 Actuating mechanism Nominal voltage AC 24 V 50/60Hz DC 24 V Power consumption - motoring - holding Dimensioning 10 VA (Imax 8,3 A @ 5 ms) Protection class Degree of protection IP 54 Running time - motor 120 sec - spring return ~ 16 sec Ambient temperature -30°C …...
  • Page 15 additional external conntact, net MP-Bus eg. fire smoke detector PC Tool AC230 V Nominal voltage AC 230 V 50/60Hz Power consumption 14 W (including actuating mechanism) Dimensioning 16 VA (including actuating mechanism) Protection Class Degree of protection IP 40 Ambient temperature -30°C …...

  • Page 16: Description

    BKS 24-1B communication and control device is used for control and checks of fire dampers with the BF 24-TN-ST (BFL 24-T-ST, BFN 24-T-ST) actuating mechanism in conjunction with the BKN 230-24 supply and communication device. BKS 24-1B receives information about the situation of the fire damper through the BKN 230-24 supply and communication device and issues controlling commands.
  • Page 17 Nominal voltage AC 24 V 50/60Hz Power consumption 2,5 W (operating position) Dimensioning 5 VA Protection Class Degree of protection IP 30 Ambient temperature 0 … +50°C 11-pole connector ZSO-11, it is not part of BKS24-1B, Connection ZSO-11 is 11-pole screw terminal 11 x 1,5 mm² BKS 24-9A communication and control device is used for group control and checks of 1 to 9 fire dampers with the actuating mechanism BF 24-TN-ST (BFL 24-T-ST, BFN 24-T-ST) in connection with the supply and communication device BKN 230-24.
  • Page 18 Nominal voltage AC 24 V 50/60Hz Power consumption 3,5 W Dimensioning 5,5 VA Protection Class Degree of protection IP 30 Ambient temperature 0 … +50°C Connection terminal 2 x 1,5 mm²...
  • Page 19 Dimensions B - 10 Position: Damper casing Mechanics Damper blade Inspection hole covering Sensor sticker Hole for camera B - 10 Position: Damper casing Actuating mechanism Damper blade Inspection hole covering BAT thermoelectrical starting mechanism Hole for camera...

  • Page 20: Dimensions, Weights And Effective Area

    Dimensions, weights and effective area 0,0106 19,5 22,5 0,1024 0,0144 20,5 25,0 0,1111 0,0169 21,0 24,0 0,1129 35,5 0,0200 21,5 24,5 0,1199 10,0 0,0231 23,0 26,0 0,1286 10,5 10,6 0,0269 0,0170 73,0 11,1 11,2 0,0294 10,0 11,5 0,0230 80,5 11,4 11,5 0,0313 10,5...
  • Page 21 14,0 16,0 0,0599 25,0 28,0 0,1871 80,5 14,5 16,5 0,0638 26,0 29,0 0,1987 100,5 15,5 17,5 0,0740 27,5 30,5 0,2132 17,0 18,5 0,0854 11,8 11,9 0,0281 18,0 21,0 0,0982 13,0 14,5 0,0380 19,5 22,5 0,1109 13,0 14,5 0,0446 20,5 23,5 0,1237 13,5 15,0...
  • Page 22 20,5 22,5 0,1424 15,4 15,5 0,0455 22,0 25,0 0,1636 16,5 18,5 0,0615 24,0 27,0 0,1849 17,0 18,5 0,0722 25,5 28,5 0,2061 17,5 19,5 0,0856 25,5 28,5 0,2104 18,5 20,0 0,0990 27,0 30,0 0,2274 19,5 21,0 0,1150 27,5 30,5 0,2401 20,0 22,0 0,1257 28,5...
  • Page 23 31,0 34,0 0,2934 21,5 23,5 0,1096 31,5 34,5 0,2995 22,0 24,5 0,1267 33,0 36,0 0,3237 23,0 26,0 0,1473 34,0 37,0 0,3418 23,5 26,5 0,1610 34,5 37,5 0,3539 80,5 24,0 27,0 0,1713 36,5 39,5 0,3842 100,5 25,5 28,5 0,1987 37,0 40,0 0,3902 27,5 30,5...
  • Page 24 40,0 43,0 0,4379 80,5 36,0 37,5 0,2688 40,5 43,5 0,4534 100,5 38,0 40,0 0,3118 43,0 46,0 0,4921 38,5 41,0 0,3601 43,5 46,5 0,4999 40,5 43,5 0,4139 45,0 48,0 0,5309 43,0 46,0 0,4676 47,0 50,0 0,5696 46,0 49,0 0,5214 21,3 21,5 0,0744 46,5 49,5...
  • Page 25 36,0 37,5 0,1696 57,0 60,0 0,6416 37,5 39,0 0,1991 58,5 61,5 0,7154 39,5 41,0 0,2360 59,5 62,5 0,7301 41,5 43,0 0,2729 62,5 65,5 0,7891 44,0 45,5 0,3171 64,0 67,0 0,8334 45,5 48,5 0,3466 65,5 68,5 0,8629 80,5 46,5 49,5 0,3688 69,5 72,5 0,9366...
  • Page 26 Blades overlaps Act. mechanism side "a" Tab. 4.2.1 Side without act. mechanism "c" Tab. 4.2.1 For the design .60 (with BKN supply and communication device) add to weight of the damper with an actuating mechanism (Tab. 4.2.1.) the weight of BKN (0.5 kg). Dampers can be supplied on the customer´s demands in all subdimension of the above mentioned range.
  • Page 27 The fire dampers are suitable for installation in arbitrary position in vertical and horizontal passages of fire separating structures. The damper assembly procedures must be done so that all load transfer from the fire separating constructions to the damper body is absolutely excluded. The back-to-back air-conditioning piping must be suspended or supported so that all load transfer from the back-to-back piping to the damper flanges is absolutely excluded.
  • Page 28 Installation opening dimensions min. A(B)+50 (flange 20mm) min. A(B)+70 (flange 30mm) max. A(B)+150 Examples of fire damper installing The fire damper can be integrated into a solid wall construction made e.g. of normal concrete/ masonry, porous concrete with minimum thickness 100 mm or into solid ceiling construction made e.g.
  • Page 29 EIS 120 Mortar or gypsum EIS 90 EIS 60 Fire protection foam with stucco plaster EIS 45 EIS 30 Battery - mortar or gypsum EIS 90 Installation next to wall - mortar or gypsum and mineral wool EIS 90 Stuffing box with fire protection mastic and cement lime plate EIS 90 Installation frame E1, E2, E4 EIS 90...
  • Page 30 ≥ 100 * Around the perimeter ≤ 75* Position: Fire damper Solid wall construction Mortar or gypsum Duct ≥ 20 ≤ 75 Used materials - example: ≥ 100 HILTI CFS-F FX - EIS 60 Position: PROMAFOAM-C - EIS 45 Fire damper SOUDAL, Soudafoam FR-B1 - EIS 30 Solid wall construction DenBraven, Fire protection foam - EIS 30...
  • Page 31 The gap 67 mm between dampers can be filled by mineral stone wool min. density 140 kg/m . Wool is fixed to damper body by fire protection mastic. ≥ 60 ≥ 100 ≤ 75 The gap 67 mm between dampers can be filled by mineral stone wool min.
  • Page 32 ≤ 75 ≤ 75 ≤ 75 ≥ A+100 ≥ 100 (≥ 100)+20 ● Gap between damper and construction is filled by mortar or gypsum and mineral wool Wool is fixed to damper body and construction ● by fire protection mastic. Mineral wool thickness = construction thickness ●...
  • Page 33 ≥ 100 ≥ 20* ≤ 75* * Around the perimeter ≥ 25 ≤ 300 Screw ≤ 300 (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). Used materials - example: Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Promastop - P, K, Hilti CFS-CT Position:...
  • Page 34 ≥ 100 ≥ 100 ≥ 100 Position: Fire damper Installation frame Solid wall construction...
  • Page 35 D+60 to 800 max. 2050 D+60 to 800 max. 1650 ≥ 100 Used materials - example: Hilti CFS-CT B 1S 140/50 Position: Hilti CFS-CT Fire damper Solid wall construction Fire resistant board Fire stop coating thickness 1 mm Duct...
  • Page 36 ≥ 100 ≥ 100 A = max. 1000 mm It is possible to use corresponding number of holes and screws Number Number Dimensions A1,B1 ≤ 400 Position: 400 < A1,B1 ≤ 800 Fire damper with instal- 800 < A1 ≤ 1200 1200 <...
  • Page 37 ≤ 75* * Around the perimeter Position: ≥ 100 Fire damper Solid wall construction Mortar or gypsum Used materials - example:** 4 Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1 Insulation board made of stone wool, with a surface treatment of Insulation materials can be replaced by another approved fire sealing aluminum foil, density 66 kg/m³...
  • Page 38 ≥ 20* ≤ 75* ≥ 100 ≥ 400 variable*** ≥ 100 * Around the perimeter ≥ 25 ≤ 300 ≤ 300 Screw (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). Used materials - example:** Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Promastop - P, K, Hilti CFS-CT...
  • Page 39 ≤ 75* ≥ 100 Position: Fire damper Installation frame E6 * Around the perimeter Solid wall construction Cement lime plate Duct...
  • Page 40 ≥ 100 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≤ 75* * Around the perimeter Position: Fire damper Gypsum plate Mineral wool (type depending on the type of construction) Mortar or gypsum Duct Installation opening has to...
  • Page 41 The gap 67 mm between dampers can be filled by mineral stone wool min. density 140 kg/m . Wool ≥ 67 is fixed to damper body by fire protection mastic. ≥ 100 Installation opening has to be reinforced by steel U- profile.
  • Page 42 ≤ 75 ≤ 75 Installation opening has to be reinforced by steel U- profile. Profile is fixed by ≤ 75 screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ A+100 ≥ 100 (≥ 100)+20 ● Gap between damper and construction is filled by mortar or gypsum and mineral wool Position: Wool is fixed to damper body and construction...
  • Page 43 Installation opening has to ≥ 100 be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 20* ≤ 75* * Around the perimeter ≥ 25 ≤ 300 Screw ≤...
  • Page 44 Installation opening has to Installation opening has to be reinforced by steel U- be reinforced by steel U- profile. Profile is fixed by profile. Profile is fixed by screws ≥3,5 mm with corre- screws ≥3,5 mm with corre- ≥ 100 ≥...
  • Page 45 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. D+60 to 800 max. 2050 D+60 to 800 max. 1650 ≥ 100 Used materials - example: Position: Hilti CFS-CT B 1S 140/50 Fire damper...
  • Page 46 ≥ 100 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 100 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length.
  • Page 47 Position: * min. 110 - Concrete/ min. 125 - Aerated concrete Fire damper Installation frame Solid ceiling construction Wall with possibility of ceiling movement...
  • Page 48 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≤ 75* Position: Fire damper Gypsum plate * Around the perimeter ≥ 100 Mineral wool (type depending on the type of construction) Used materials - example:** Mortar or gypsum...
  • Page 49 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. ≥ 20* ≤ 75* * Around the perimeter ≥ 400 variable*** ≥ 100 ≥ 100 ≥...
  • Page 50 ≤ 75** Position: Fire damper * min. 110 - Concrete/ min. 125 - Aerated concrete Solid ceiling construction ** Around the perimeter Mortar or gypsum Duct...
  • Page 51 The gap 67 mm between dampers can be filled by mineral stone wool min. density 140 kg/m . Wool is fixed to damper body by fire protection mastic. ≥ 67 ≤ 75** The gap 67 mm between dampers can be filled by mineral stone wool min.
  • Page 52 ≥ 20** ≤ 75** ≥ 25 ≤ 300 ≤ 300 Screw (min. 4x50) ≥ 25 ≤ 300 Screws has to be fixed in wall/ceiling construction. (If it is needed use steel bracket). * min. 110 - Concrete/ min. 125 - Aerated concrete ** Around the perimeter Used materials - example: Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50...
  • Page 53 Position: Fire damper * min. 110 - Concrete/ min. 125 - Aerated concrete Installation frame Solid ceiling construction...
  • Page 54 D+60 to 800 D+60 to 800 max. 2050 max. 1650 * min. 110 - Concrete/ min. 125 - Aerated concrete Used materials - example: Hilti CFS-CT B 1S 140/50 Position: Hilti CFS-CT Fire damper Solid ceiling construction Fire resistant board Fire stop coating thickness 1 mm Duct...
  • Page 55 B = max. 1000 mm * min. 110 - Concrete/ min. 125 - Aerated concrete It is possible to use corresponding number of holes and screws Number Number Dimensions A1,B1 ≤ 400 400 < A1,B1 ≤ 800 800 < A1 ≤ 1200 Position: 1200 <...
  • Page 56 ≤ 75** ≥ 100 variable**** ≥ 400 * min. 110 - Concrete/ min. 125 - Aerated concrete ** Around the perimeter Used materials - example:*** Rockwool Wired Mat 105 th. 60 mm Position: Stuffing box, fire protection mastic, cement lime plate and insulation materials can be replaced by another approved fire Fire damper sealing system for damper installation with equivalent material...
  • Page 57 ≤ 750 ≤ 100 Position: Fire damper Solid ceiling construction Concrete B20 * min. 110 - Concrete/ min. 125 - Aerated concrete Rebar ** Around the perimeter Duct ≤ 750 ≤ 100 Position: Fire damper Solid ceiling construction Installation frame E4 * min.
  • Page 58 ≤ 75** Position: Fire damper Installation frame E6 * min. 110 - Concrete/ min. 125 - Aerated concrete Solid ceiling construction ** Around the perimeter Cement lime plate Duct...
  • Page 59 ≥ 100 Used materials - example: Position: Paroc AST S th. 100 mm or RUUKKI SPB W th. 100 mm Fire damper Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50 Sandwich wall construction Promastop - P, K, Hilti CFS-CT Stuffing box (mineral stone wool min.
  • Page 60 Shaft wall is a vertical, non-bearing partition construction meeting the double-sided fire requirements. The shaft wall can be mounted only from one side. No mineral insulation is used in the construction. First of all, the shaft wall structure must be laid out. Apart from other vertical constructions, the perimeter sections must be fitted with connection sealing made from A1 or A2 fire reaction materials (for instance floor strips Orsil N/PP).
  • Page 61 ≥ 100 ≤ 75 ≤ 250 ≤ 250 Installation opening has to be reinforced by steel U- profile. Profile is fixed by screws ≥3,5 mm with corre- sponding length. Distance between screws ≤200 mm. Used materials - example:* Glasroc F Ridurit th. 20 mm Steel U-profile 50 Position: Screw Ridurit...
  • Page 62 ≥ 100 ≤ 250 ≤ 250 It is possible to use corresponding number of holes and screws Number Number Dimensions A,B ≤ 400 400 < A,B ≤ 800 800 < B ≤ 1200 1200 < B ≤ 1500 Position: Fire damper Used materials - example:* Installation frame E1 Glasroc F Ridurit th.
  • Page 63 Cement √ ≥100 √ ≥150 √ ≥100 lime Galvanized √ ≥100 √ ≥150 plate Cement √ ≥100 lime Cement Solid ceiling ≥100/ √ ≥100 √ *) ≥150 ≥150 √ lime construction *) ≥150 Cement √ **) ≥100 lime Cement ≥100/ √...

  • Page 64: Installation Frames

    Installation frame E1 is suitable for: ● Solid wall construction ● Gypsum wall construction ● Solid ceiling construction On the inside and outside is installation frame equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between damper body and installation frame and between installation frame and wall construction.
  • Page 65 Installation frame E2 is suitable for: ● Solid wall construction ● Solid ceiling construction Damper is on the body equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between damper body and steel cartridge. ● Gypsum wall construction has to be installed according manufacture requirements. ●...
  • Page 66 Installation frame E3 is suitable for: ● Gypsum wall construction Damper is on the body equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between damper body and cement lime cartridge. On the outside is cement lime cartridge equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between cement lime cartridge and construction.
  • Page 67 Installation frame E4 is suitable for: ● Installation on solid wall/ceiling construction ● Installation on gypsum wall construction ● Installation outside solid ceiling constructions with concrete On the inside is installation frame equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between installation frame and damper body.
  • Page 68 Installation frame E5 is suitable for gypsum wall construction with ceiling movement possibility. Distance of movement “x”. On the inside and outside is installation frame equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between damper body and installation frame and between installation frame and wall construction.
  • Page 69 Installation frame E6 is suitable for: ● Installation outside solid wall/ceiling construction with cement lime plates On the inside is installation frame equipped by intumescent sealing. It enlarges its capacity and air proofs the gap between installation frame and damper body. ●...
  • Page 70 For dampers with A ≥ 800 and damper placement outside wall construction is necessary to use reinforcement VRM-Q. 1) Cut the groove for profil U25x40x25 2) Insert profile into groove 3) Fix profile 4) Fix second layer of insulation Screw 4,2x50 max.
  • Page 71 Mounting to the ceiling wall Position: ² Threaded rod M8 – M20 36,6 Washer 84,3 Coupling Nut Anchor Hinge plate - min. thickness 10 mm Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35 mm)
  • Page 72 Fixing fire damper to the wall with stuffing box (stone wool + mastic) Position: Solid wall construction Gypsum wall construction Fire damper Duct Stuffing box (stone wool+mastic) Illustrative example of duct anchoring Fixing element/steel holder for connecting damper to the wall (recommended type) Nut M8 with anchor Screw with hexagon head Assembly and mounting shown on the picture are illustrative and serve as a guide.
  • Page 73 Fixing fire damper to the ceiling with stuffing box (stone wool + mastic) Position: Solid ceiling construction Fire damper Duct Stuffing box (stone wool+mastic) Fixing element/steel holder for connecting damper to the wall (recommended type) Nut M8 with anchor Installation hols Screw M6x10+Nut M6 Assembly and mounting shown on the picture are illustrative and serve as a guide.
  • Page 74 Damper assembly procedures must be done so as all load transfer from the fire separating constructions to the damper body is absolutely excluded. Back-to-back air-conditioning piping must be hung or supported so as all load transfer from the back-to-back piping to the damper is absolutely excluded.
  • Page 75 The damper must not be suspended or anchored. The duct must be anchored after national rules, like in fig. 84 - as an example. It can be suspended by using threaded rods and a mounting profiles. Load the suspension system depend on weight of the fire damper. Damper can be suspended from the ceiling construction or supported above the ceiling construction.

  • Page 76: Suspension System

    Fire dampers installed remote from the wall must be suspended. The duct must be suspended on both sides of damper after national rules. Duct between fire damper and fire separating construction must be suspended by using threaded rods and mounting profiles, or another anchoring system according national standards. Load the suspension system depend on weight of the fire damper and duct system.

  • Page 77: Pressure Loss

    Pressure loss calculation [Pa] presure loss [m.s ] air flow speed in nominal damper section [kg.m ] air density coefficient of local pressure loss for the nominal damper section (see Tab. 11.1.1.) Determination of pressure loss by using diagram = 1,2 kg.m...

  • Page 78: Coefficient Of Local Pressure Loss

    Coefficient of local pressure loss 2,742 2,575 2,399 2,320 2,219 2,105 2,047 1,954 1,885 1,811 1,753 1,703 1,686 1,665 2,132 1,992 1,864 1,795 1,721 1,636 1,575 1,502 1,440 1,387 1,342 1,308 1,290 1,275 1,691 1,580 1,477 1,417 1,363 1,288 1,244 1,186 1,136 1,094...
  • Page 79 Level of acoustic output corrected with filter A. + 10 log(S) + K [dB(A)] level of acoustic output corrected with filter A. [dB] level of acoustic output L related to the 1 m² section (see Tab. 12.3.1.) [m²] duct cross section [dB] correction to the weight filter A (see Tab.
  • Page 80 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2 -43,9 -56,4 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 -37,4 -48,9 -3,9 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2 -43,9 -4,0 -4,1 -5,9 -9,4 -14,6 -21,5 -40,3 -4,2 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 -37,4 -4,5 -3,9 -4,9 -7,5...

  • Page 81: Material

    Damper bodies are supplied in the design made of galvanized plate without any other surface finishing. Damper blades are made of fire resistant asbestos free boards made of mineral fibres. Control devices of dampers has cover from mechanically resistant and standing plastic and rest of the parts is galvanised without further surface treatment.
  • Page 82 The manufacturer provides a warranty of 24 months from the date of dispatch for the dampers. The warranty for fire dampers FDMQ, provided by the manufacturer, shall become completely null and void if the starting, closing and control devices are unprofessionally handled by untrained workers or if electric components, i.e.
  • Page 83 The assembly of the dampers must be carried out while observing all applicable safety standards and regulations. The damper body should not be deformed in the course of bricking in. Once the damper is built in, its blade should not grind on the damper body during opening or closing. All flange and screw joints must be conductively connected during the assembly to provide protection against dangerous contact.
  • Page 84 Before entering the dampers into operation after their assembly and by sequential checks, the following checks must be carried out. Visual inspection of proper damper integration , inside damper area, damper blade, contact surfaces and silicon sealing. Check of thermal protective fuse and closing mechanism.

  • Page 85: Spare Parts

    For the designs with actuating mechanisms, the following checks must be carried out: Check the shift of the blade to "CLOSED" failure position after cutting off the power supply to the actuating mechanism (e.g. by pressing the reset button on the thermoelectric starting mechanism BAT, by cutting off the power supply from electrical fire signalization).
  • Page 86 Fire damper Technical specifications Design acc. Tab. 22.1.1. Building size Nominal size Type Manual and thermal Manual and thermal (Zone 1,2) .02* Manual and thermal with a terminal switch („CLOSED“) Manual and thermal with a terminal switch („CLOSED“) (Zone 1,2) .12* With actuating mechanism BF 230-TN (BFL, BFN 230-T) - voltage AC 230 V With actuating mechanism BF 24-TN (BFL, BFN 24-T), with smoke detector ORS 142 K and with...

  • Page 87: Data Label

    Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: ACTUATING SYSTEM: WEIGHT (kg): YEAR/SER.NO.: MANUAL FIRE PROTEC. CLASS: TPM 103/14 EN 15650:2010 Cert. No.: 1391-CPR-2021/0144, DoP: PM/FDMQ/01/21/3 1391 MANDÍK, a.s. Dobříšská 550 26724 Hostomice Czech Republic Tel.: +420 311 706 706 E-Mail: mandik@mandik.cz www.mandik.com The producer reserves the right for innovations of the product.
