Summary of Contents for Mandik FDMQ 120

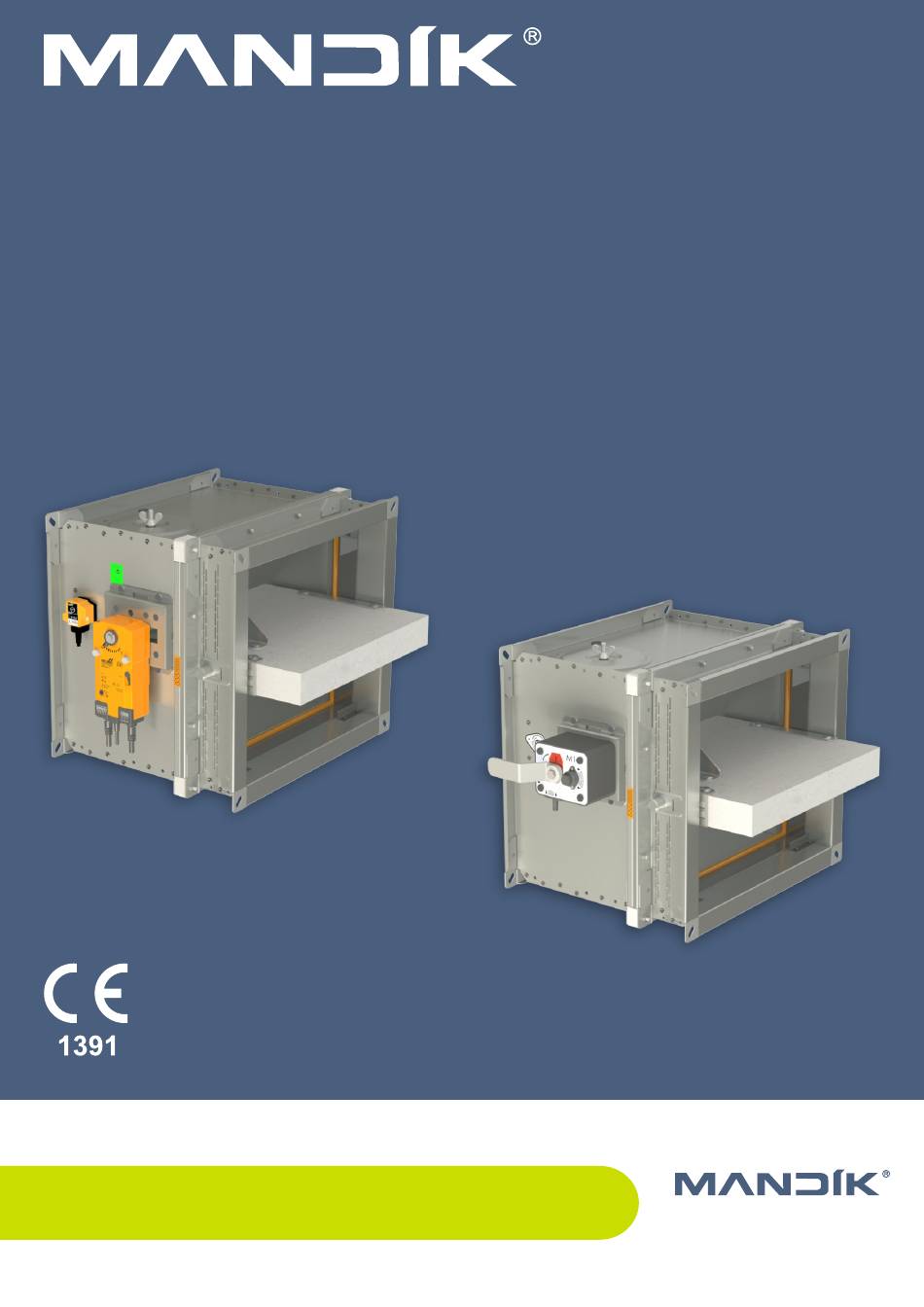

- Page 1 TPM 162/22 Version 2024-05-10 FDMQ 120 Fire damper Technical Documentation Installation, Commissioning, Operation, Maintenance and Service Manual www.mandik.com MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz...
-
Page 2: Table Of Contents
TPM 162/22 These technical specifications state a row of manufactured sizes and models of fire dampers FDMQ 120 It is valid for production, designing, ordering, delivery, maintenance and operation. CONTENT I. GENERAL.....................................3 Description....................................3 II. DESIGN.......................................4 Design with manual control..............................4 Design with spring return actuator............................6 Design with the communication and supply device......................12... -
Page 3: General
FDMQ 120 with spring return actuator FDMQ 120 with manual control Damper characteristics CE certified acc. to EN 15650 ■... -
Page 4: Design
■ ■ with two limit switches signaling of the damper blade Limit switch detail → see page 5 ■ position "CLOSED" and "OPEN". Limit switch Limit switch “OPEN” “CLOSED” Design .80 Page 4 Fire damper - FDMQ 120 Version 2024-05-10... - Page 5 Class of protection IP 67 CUT-OFF if the arm is moving … connect wire 1+2 ■ Working temperature -25°C … +120°C SWITCH-ON if the arm is moving … connect wire 1+4 ■ Version 2024-05-10 Fire damper - FDMQ 120 Page 5...
-
Page 6: Design With Spring Return Actuator
"OPEN" to the position "CLOSED" takes maximum 20 sec. Signalisation of damper blade position "OPEN" and ■ "CLOSE" is provided by two microswitches. Thermoelectric activation device BAT Spring return actuator Design .40 and .50 Page 6 Fire damper - FDMQ 120 Version 2024-05-10... - Page 7 1 m, 2 x 0,75 mm² (BFL 2xx-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFL 2xx-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Version 2024-05-10 Fire damper - FDMQ 120 Page 7...
- Page 8 1 m, 2 x 0,75 mm² (BFN 2xx-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFN 2xx-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Page 8 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 9 1 m, 2 x 0,75 mm² (BF 2xx-TN-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BF 2xx-TN-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Version 2024-05-10 Fire damper - FDMQ 120 Page 9...
- Page 10 Max. 95% RH, non-condensing Connection supply Cable 1 m, 2 x 0.5 mm², Betaflam cable heatresistant up to 145°C Duct inside temperature +72 (95/120/140)°C Response temperature thermal fuse Duct outside temperature +72 (95/120/140)°C Page 10 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 11 Non-operating temperature -40°C … +80°C Connection - net cable 0,9 m with EURO plug type 26 - motor 6-pole connector, 3-pole connector - terminal board screw terminals for cable 2x1,5 mm² Version 2024-05-10 Fire damper - FDMQ 120 Page 11...
-
Page 12: Design With The Communication And Supply Device
Non-operating temperature -40°C … +80°C Connection - net cable 0,9 m with EURO plug type 26 - motor 6-pole connector, 3-pole connector - terminal board screw terminals for cable 2x1,5 mm² Page 12 Fire damper - FDMQ 120 Version 2024-05-10... - Page 13 Non-operating temperature -40°C … +80°C Connection - net cable 0,9 m with EURO plug type 26 - motor 6-pole connector, 3-pole connector - terminal board screw terminals for cable 2x1,5 mm² Version 2024-05-10 Fire damper - FDMQ 120 Page 13...
- Page 14 Non-operating temperature -40°C … +80°C Connection - net cable 0,9 m with EURO plug type 26 - motor 6-pole connector, 3-pole connector - terminal board screw terminals for cable 2x1,5 mm² Page 14 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 15 Cabel 1m, connected to terminals 1, 2 and 4 - motor Actuator connected on the terminals 2 and 5 - communication and supply device BKN Cabel 1m, connected to terminals 1, 2, 4 and 5 Version 2024-05-10 Fire damper - FDMQ 120 Page 15...
-
Page 16: Communication And Control Device Bks 24-1B And Bks 24-9A
Protection Class Degree of protection IP 30 Ambient temperature 0°C … +50°C 11-pole connector ZSO-11, it is not part of BKS24-1B, Connection ZSO-11 is 11-pole screw terminal 11 x 1,5 mm Page 16 Fire damper - FDMQ 120 Version 2024-05-10... - Page 17 Nominal voltage AC 24 V 50/60Hz Power consumption 3,5 W Dimensioning 5,5 VA Protection Class Degree of protection IP 30 Ambient temperature 0°C … +50°C Connection terminal 2 x 1,5 mm Version 2024-05-10 Fire damper - FDMQ 120 Page 17...
-
Page 18: Dimensions
B - 10 Damper casing Manual control Damper blade Inspection opening cover Sensor sticker Hole for camera FDMQ 120 with spring return actuator B - 10 X=72 mm (BFL) X=76 mm (BFN) X=83 mm (BF) Damper casing Spring return actuator... - Page 19 → see pages 20 to 25 Flange of a damper - INSTALLATION SIDE Values "a" and "c" has to be respected when Flanges of dampers are 30 mm wide with oval hole. projecting following air-conditioning duct. Version 2024-05-10 Fire damper - FDMQ 120 Page 19...
-
Page 20: Technical Parameters
0,0446 19,7 19,8 0,0971 14,3 14,4 0,0523 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Page 20 Fire damper - FDMQ 120 Version 2024-05-10... - Page 21 26,1 26,5 0,1813 100,5 21,4 21,5 0,1190 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Version 2024-05-10 Fire damper - FDMQ 120 Page 21...
- Page 22 0,2269 39,6 41,7 0,3806 32,0 32,4 0,2571 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Page 22 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 23 0,3759 21,1 21,2 0,0856 41,6 43,7 0,4069 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Version 2024-05-10 Fire damper - FDMQ 120 Page 23...
- Page 24 0,9281 35,7 36,1 0,2419 77,1 79,2 0,9969 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Page 24 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 25 0,9956 56,6 58,7 0,5531 81,5 83,6 1,0694 Sizes in increments of 5 mm can be manufactured on request. * For designs with BKN a weight of 0.5 kg must be added. Version 2024-05-10 Fire damper - FDMQ 120 Page 25...
-
Page 26: Installation
X = recommended min. distance for manual control ≥ 250 mm Y = min. distance for actuator ≥ 200 mm acc. to EN 1366-2 Y = recommended min. distance for manual control ≥ 250 mm Page 26 Fire damper - FDMQ 120 Version 2024-05-10... - Page 27 → see page 59 Gypsum wall construction with min. thickness 100 mm. ■ Solid ceiling construction made e.g. of normal ■ concrete or pourous concrete, with minimum thickness according to EN 1366-2. Version 2024-05-10 Fire damper - FDMQ 120 Page 27...
-
Page 28: Statement Of Installations
S - 500 Pa Mortar or gypsum ↔ In solid ceiling construction 2 dampers in battery - mortar or gypsum EI 120 (h o) S ↔ 4 dampers in battery - mortar or gypsum Page 28 Fire damper - FDMQ 120 Version 2024-05-10... -
Page 29: Installation In Solid Wall Construction
↔ For connection following duct → see page 51 ■ ≥ 100 FDMQ 120 Solid wall construction Mortar or gypsum Profile with threaded rod → see pages 47 to 50 Duct Version 2024-05-10 Fire damper - FDMQ 120 Page 29... - Page 30 → see page 51 ■ 10 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Page 30 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 31 → see page 51 ■ 12 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Version 2024-05-10 Fire damper - FDMQ 120 Page 31...
- Page 32 Fire stop coating - th. 1 mm (HILTI CFS-CT...) - coating is overcoated on the support construction and on the damper casing/duct Fire-resistant mastic - (HILTI CFS-S ACR...) fill the gap from both sides of the fire separation construction and around the perimeter of penetration and damper casing Page 32 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 33: Installation Outside Solid Wall Construction
Insulation board made of mineral wool, with a surface treatment of ISOVER Protect BSF aluminum foil, min. thickness 80 mm, min. density 66 kg/m³ (System ISOVER (continued on next page) VRM-Q 120 → see page 59 Ultimate Protect SLAB 4.0 Alu1) Version 2024-05-10 Fire damper - FDMQ 120 Page 33... - Page 34 Insulation board made of mineral wool, with a surface treatment of ISOVER Protect BSF aluminum foil, min. thickness 80 mm, min. density 66 kg/m³ (System ISOVER VRM-Q 120 → see page 59 Ultimate Protect SLAB 4.0 Alu1) Page 34 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 35: Installation In Gypsum Wall Construction
↔ For connection following duct → see page 51 ■ ≥ 100 FDMQ 120 Gypsum wall construction Mortar or gypsum Profile with threaded rod → see pages 47 to 50 Duct Version 2024-05-10 Fire damper - FDMQ 120 Page 35... - Page 36 → see page 51 ■ 10 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Page 36 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 37 → see page 51 ■ 12 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Version 2024-05-10 Fire damper - FDMQ 120 Page 37...
- Page 38 Fire stop coating - th. 1 mm (HILTI CFS-CT...) - coating is overcoated on the support construction and on the damper casing/duct Fire-resistant mastic - (HILTI CFS-S ACR...) fill the gap from both sides of the fire separation construction and around the perimeter of penetration and damper casing Page 38 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 39: Installation Outside Gypsum Wall Construction
Insulation board made of mineral wool, with a surface treatment of ISOVER Protect BSF aluminum foil, min. thickness 80 mm, min. density 66 kg/m³ (System ISOVER (continued on next page) VRM-Q 120 → see page 59 Ultimate Protect SLAB 4.0 Alu1) Version 2024-05-10 Fire damper - FDMQ 120 Page 39... - Page 40 Insulation board made of mineral wool, with a surface treatment of ISOVER Protect BSF aluminum foil, min. thickness 80 mm, min. density 66 kg/m³ (System ISOVER VRM-Q 120 → see page 59 Ultimate Protect SLAB 4.0 Alu1) Page 40 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 41 Filling - FPL 110 mineral wool - fill the gap between the duct and the wall Fibre Gasket self-adhesive tape and Flamebar Intumescent Sealant Fixing profile with threaded rod → see pages 47 to 50 (continued on next page) Version 2024-05-10 Fire damper - FDMQ 120 Page 41...
- Page 42 Filling - FPL 110 mineral wool - fill the gap between the duct and the wall Fibre Gasket self-adhesive tape and Flamebar Intumescent Sealant Fixing profile with threaded rod → see pages 47 to 50 Page 42 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 43: Installation In Shaft Wall
In shaft wall - mortar or gypsum For connection following duct → see page 51 ■ Maximum size for FDMQ 120 in shaftwall is 1500mm x 650mm ■ Damper can be installed on either side of the wall. ■ It is possible to use e.g. wall type A306030, A306035… from ■... -
Page 44: Installation In Solid Ceiling Construction
S - 500 Pa ↔ For connection following duct → see page 51 ■ FDMQ 120 Solid ceiling construction Mortar or gypsum Profile with threaded rod → see pages 47 to 50 Duct Page 44 Fire damper - FDMQ 120 Version 2024-05-10... - Page 45 → see page 51 ■ 10 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Version 2024-05-10 Fire damper - FDMQ 120 Page 45...
- Page 46 → see page 51 ■ 12 Insulation board made of mineral wool - recommended for easy filling of gap with mortar/gypsum. Gap between damper and construction is filled by mortar or gypsum ■ Page 46 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 47: Suspension Systems
Washer for M8 - M20 Coupling Nut M8 - M20 84,3 Anchor Hinge plate - min. thickness 10 mm Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35 mm) Version 2024-05-10 Fire damper - FDMQ 120 Page 47... - Page 48 Example of placing of mounting profiles HILTI max. 50 FDMQ 120 Threaded rod M8 - M12 Support HILTI MQ-41 or MQ-41/3 Bored plate HILTI MQZ-L Washer for M8 - M12 Nut M8 - M12 Page 48 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 49 TPM 162/22 Example of fixing FDMQ 120 to the wall In solid wall construction In gypsum wall construction Solid wall construction Gypsum wall construction FDMQ 120 Duct Penetration Profile with threaded rod → see page 48 Fixing element/steel holder for connecting damper to the wall (optional accessories MANDIK, a.s.
- Page 50 TPM 162/22 Example of fixing FDMQ 120 to the ceiling In solid ceiling construction Solid ceiling construction FDMQ 120 Duct Penetration Profile with threaded rod → see page 48 Fixing element/steel holder for connecting damper to the ceiling (optional accessories MANDIK, a.s. or sheet metal min.
-
Page 51: Example Of Duct Connection
Extension piece (if required) Damping pad Steel clamp min. screw M8 Screw assembly M8 (screw M8x20 mm, 2 pcs toothed lock washer M8, nut M8) * Sealing Toothed lock washer M8 Protective bonding conductor Version 2024-05-10 Fire damper - FDMQ 120 Page 51... -
Page 52: Technical Data
ρ [kg/m air density ξ coefficient of local pressure loss for the nominal damper section → see page 53 Determination of pressure loss by using diagram ρ = 1,2 kg/m Page 52 Fire damper - FDMQ 120 Version 2024-05-10... - Page 53 0,201 0,199 0,197 0,195 0,193 0,211 0,208 0,206 0,205 0,204 0,203 0,201 0,197 0,193 0,189 0,187 0,185 0,183 0,206 0,203 0,201 0,200 0,199 0,197 0,194 0,191 0,188 0,186 0,183 0,182 0,181 Version 2024-05-10 Fire damper - FDMQ 120 Page 53...
-
Page 54: Noise Data
-24,1 -33,2 -5,2 -3,9 -4,3 -6,4 -10,1 -15,6 -22,7 -31,5 -5,5 -4,1 -5,9 -9,4 -14,6 -21,5 -5,9 -4,1 -5,6 -8,9 -13,8 -20,4 -28,8 -6,2 -4,3 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 Page 54 Fire damper - FDMQ 120 Version 2024-05-10... -
Page 55: Material, Finishing
The damper blade in the variant for chemical environments (Class A4) is always treated with a coating of chemically resistant Promat SR. Any other requirements for the design will be considered atypical and will be addressed on an individual basis. Version 2024-05-10 Fire damper - FDMQ 120 Page 55... -
Page 56: Transportation, Storage And Warranty
The warranty for fire dampers FDMQ 120, provided by the ■ If the dampers are damaged by transport, a record must manufacturer, is completely void if actuating, closing and ■... -
Page 57: Assembly, Attendance And Maintenance
Protection of the damper casing against buckling during installation, especially for large sizes! WRONG! Reinforcement of the casing with wooden beams Version 2024-05-10 Fire damper - FDMQ 120 Page 57... - Page 58 Change of manual control for the actuator or vice versa Damper Thermal fuse Mouting plate Manual control Sealing cover Spring return actuator Sealing of a mouting plate 9 Thermoelectric activation device BAT Cover of a mouting plate 10 Sensor sticker Page 58 Fire damper - FDMQ 120 Version 2024-05-10...
- Page 59 Screw 5x60 mm screws into the predrilled holes FDMQ 120 Part A of VRM-Q 120 Part B of VRM-Q 120 Hexagon head screw M8x60 mm DIN 931 Screw 5x60 mm Washer M8/8,4 DIN 7349 Glue K-84 PROMAT Version 2024-05-10 Fire damper - FDMQ 120 Page 59...
- Page 60 ■ ■ installation with weichschott system. specified in the ordering key Can be ordered from MANDIK (installed on the damper or Protective cladding boards are made of PROMATECT- ■ ■ as an accessory) or can be sourced from local supplier MST, thickness 30 mm.
-
Page 61: Entry Into Service And Revisions
Removing the thermal fuse from the fuse holder of a manual control, checks its correct functionality. ■ The manual control is identified as M1 to M5, depending on the closing spring strength. ■ Version 2024-05-10 Fire damper - FDMQ 120 Page 61... - Page 62 If the thermal fuse Tf2 is interrupted (due to temperature inside the duct) , only the spare part ZBAT 72 (95/120/140) needs ■ to be replaced (acc.to the activation temperature). → see page 10 Page 62 Fire damper - FDMQ 120 Version 2024-05-10...
-
Page 63: Ordering Informations
A - with protective cladding boards (for Weichschott installation) design building length of a damper size AxB EXAMPLE: FDMQ 120 800x400/375 .40 A - 800x400-damper size, /375-building lenght of a damper, .40-damper design, A-with protective cladding boards Damper design Additional digit Manual control and thermal Manual control and thermal with a terminal switch („CLOSED“) -
Page 64: Data Label
Data label is placed on the damper casing (example) ■ MANDÍK, a.s. Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: DESIGN: SERIAL.NO.: WEIGHT (kg): MANUAL CLASSIFICATION: Cert. No.: 1391-CPR-XXXX/XXXX, DoP: PM/XXXX/XX/XX/X TPM XXX/XX EN 15650:2010 Page 64 Fire damper - FDMQ 120 Version 2024-05-10... - Page 65 The producer reserves the right for innovations of the product. For actual product information see www.mandik.com www.mandik.com MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz...
