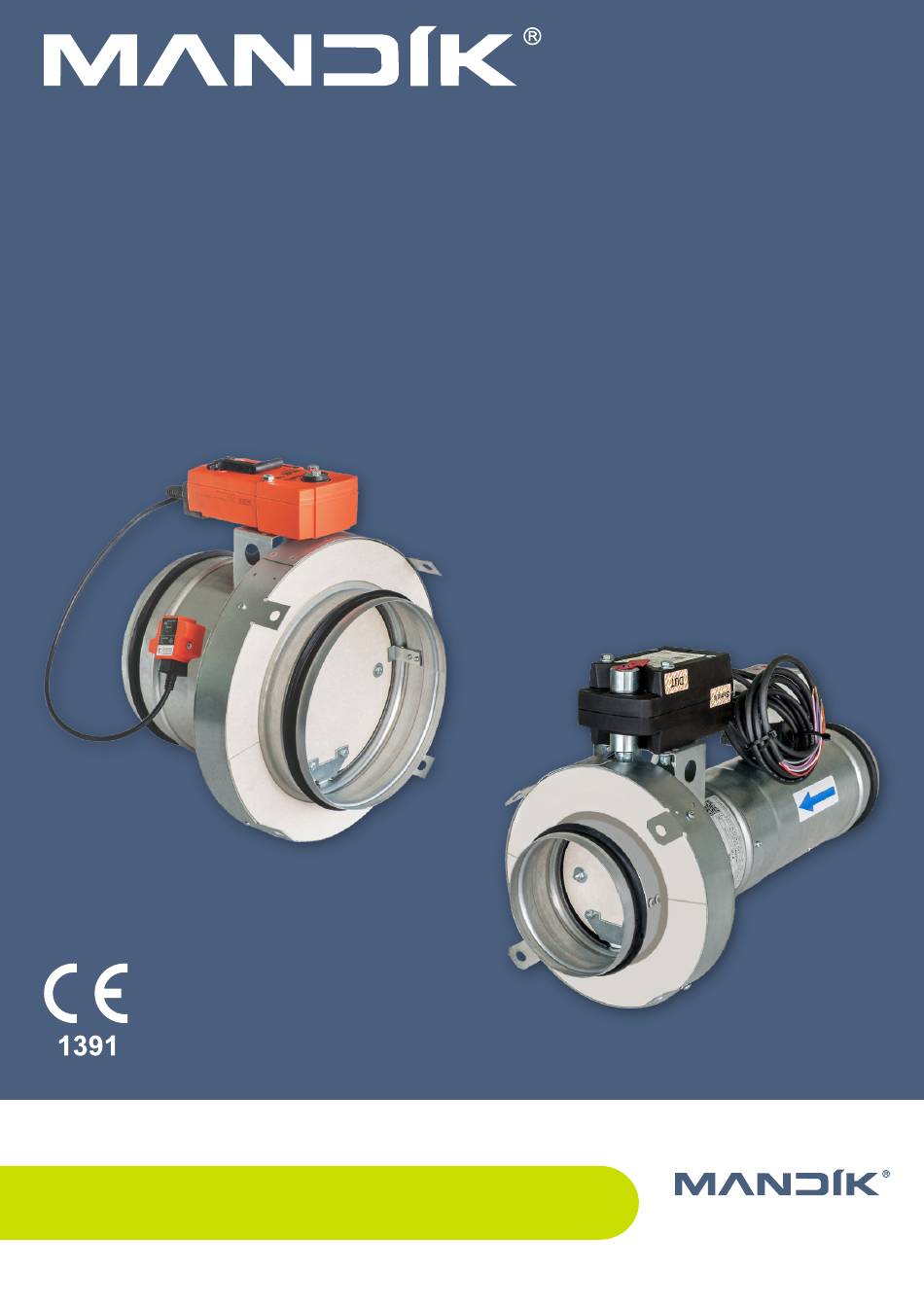

- Page 1 TPM 125/17 Version 2025-01-06 FDMS Fire damper Technical Documentation Installation, Commissioning, Operation, Maintenance and Service Manual www.mandik.com MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz...
-
Page 2: Table Of Contents
TPM 125/17 These technical specifications state a row of manufactured sizes and models of fire dampers FDMS. It is valid for production, designing, ordering, delivery, maintenance and operation. CONTENT I. GENERAL................3 VI. TECHNICAL DATA............31 Description..............3 Pressure loss...............31 FDMS with VAV actuator - operating mode and II. -
Page 3: General
TPM 125/17 I. GENERAL Description Fire dampers are shutters in ducts of air-conditioning devices supply of the actuator is interrupted. In case of manual control that prevent the spread of fire and combustion products from with thermal fuse, the closing spring is actuated after the mo- one fire segment to the other one by means of closing the duct ment, when the thermal fuse is melted. -
Page 4: Design
TPM 125/17 II. DESIGN Damper design FDMS with manual control Design .01 Design with manual control with a thermal fuse which Automatic initiation of the manual control is not activated ■ ■ actuates the shutting device, after the nominal activation if the temperature does not exceed 70°C. - Page 5 TPM 125/17 Limit switch G905-300E03W1 1(COM) - black wire 2(NC) - gray wire 4(NO) - blue wire This limit switch is possible to connect in two following ways Nominal voltage and maximal current AC 230V / 5A Class of protection IP 67 CUT-OFF if the arm is moving …...
-
Page 6: Damper Design Fdms With Spring Return Actuator
TPM 125/17 Damper design FDMS with spring return actuator Design .40 and .50 The fire dampers are equipped with Belimo spring return In case that the power supply is restored again (the blade ■ ■ actuators with thermoelectric activation device BAT. The can be in any position), the actuator starts to rotate the spring return actuator types are BFL, BFN depending on damper blade back to the position "OPEN". - Page 7 TPM 125/17 Actuator BELIMO BFL 230-T <5° <80° Actuator BELIMO BFL 24-T(-ST) <5° <80° Actuator BELIMO BFL 230-T(-ST), BFL 24-T(-ST) Actuator BELIMO - 4 Nm/ 3 Nm Spring BFL 230-T(-ST) BFL 24-T(-ST) AC 230 V AC/DC 24 V Power voltage 50/60Hz 50/60Hz Power consumption - in operation...
- Page 8 TPM 125/17 Actuator BELIMO BFN 230-T <5° <80° Actuator BELIMO BFN 24-T(-ST) <5° <80° Actuator BELIMO BFN 230-T(-ST), BFN 24-T(-ST) Actuator BELIMO - 9 Nm/ 7 Nm Spring BFN 230-T(-ST) BFN 24-T(-ST) AC 230 V AC/DC 24 V Power voltage 50/60Hz 50/60Hz Power consumption - in operation...
- Page 9 TPM 125/17 Thermoelectric activation device BAT If the thermal fuse Tf1 is interrupted (due to temperature When one of the thermal fuses responds, the supply ■ ■ outside the duct), it is necessary to replace the spring voltage is interrupted permanently and irreversibly. return actuator.
-
Page 10: Damper Design With Vav Actuator
TPM 125/17 Damper design with VAV actuator Design .50/DM3 or .50/PM3 thermoelectric activation device TAE, spring return The damper design, which allows the delivery of the ■ rotates the damper blade into the safety position required amount of air to the room or occupied zone, is "CLOSED". - Page 11 TPM 125/17 Actuator GRUNER 340CTA-024D-03, 340CTA-024-05 Actuator GRUNER 360CTA-024-12 GRUNER - 3 N.m, 5 N.m GRUNER - 12 N.m TAE - 72 Cable colors: OG = orange WH = white RD = red BK = black VT = purple PK = pink GY = grey Actuator GRUNER 340CTA-024D-03, 340CTA-024-05, 360CTA-024-12 Actuator GRUNER...
- Page 12 TPM 125/17 Controller GRUNER GUAC-DM3 / GUAC-PM3 safety transformer DC 0...10 V DC 2...10 V AC 24 V DC 24 V DC 0...10 V DC 2...10 V Cable colours: BU = blue BN = brown BK = black GY = grey Controller GRUNER GUAC-DM3, GUAC-PM3 Controller GRUNER GUAC-DM3...
- Page 13 TPM 125/17 Air flow control actuator controller GUAC-DM3 flow direction Δp [Pa] - controller pressure loss Duct pressure control actuator controller GUAC-PM3 flow direction Δp [Pa] - static pressure difference between duct and surrounding environment Room pressure control controller GUAC-PM3 actuator air outlet Room...
-
Page 14: Dimensions
TPM 125/17 III. DIMENSIONS Dimensions of FDMS Design with manual control D+130 Ø P=113 mm for DN 100 - DN 200 P=163 mm for DN 225 - DN 630 Damper casing Manual control Damper blade Thermal fuse Hole for camera Design with spring return actuator D+130 Ø... -
Page 15: Dimensions Of Fdms With Vav Actuator
TPM 125/17 Dimensions of FDMS with VAV actuator D+130 Ø X=74 mm (340CTA-024D-03, 340CTA-024-05) * X=64 mm (360CTA-024-12) * Damper casing Spring return actuator GRUNER Damper blade Thermoelectric activation device TAE Hole for camera Controller GRUNER GUAC-DM3 / GUAC-PM3 Measuring cross * Assignment of actuators to individual sizes →... - Page 16 TPM 125/17 Damper blade overlaps of FDMS Open damper blade overlaps the damper casing by the value „c“ / „d“ / „e“. These values are specified in chapter Technical ■ parameters → see page 17. Values „c“ / „d“ / „e“ has to be respected when projecting following air-conditioning duct. Blade overlaps of FDMS with manual control Blade overlaps of FDMS with actuating mechanism Blade overlaps of FDMS with VAV actuator...
-
Page 17: Technical Parameters
TPM 125/17 Technical parameters Fire damper FDMS Damper blade overlaps Weight Nominal size Effective Actuator ØD area Sef BELIMO Man. control Actuator [mm] [mm] [mm] [mm] [kg] [kg] * 0,0032 0,0063 0,0086 0,0102 12,5 0,0122 0,0164 37,5 0,0213 52,5 0,0280 0,0400 0,0530 112,5... -
Page 18: Installation
TPM 125/17 IV. INSTALLATION Placement and installation camera as standard. For other service works, the external The fire dampers are suitable for installation in arbitrary ■ access door (inspection door) must be installed on the air position in vertical and horizontal passages of fire separ- duct, next to the fire damper. -
Page 19: Statement Of Installations Dampers Fdms
TPM 125/17 Statement of installations dampers FDMS wall/ceiling Installation min. thickness Fire resistance Page [mm] EI 90 (v ) S [V/H] In solid wall construction Outside solid wall construction EI 60 (v ) S [V/H] EI 90 (v ) S [V/H] In gypsum wall construction EI 60 (v ) S [V/H]... -
Page 20: In Solid Wall Construction
TPM 125/17 In solid wall construction EI 90 (v ) S [V/H] - 500 Pa ■ For connection of following duct → see page 30 ≥ 100 FDMS Solid wall construction Clamp with threaded rod → see page 30 * Dimensions of installation holes →... -
Page 21: Installation Outside Solid Wall Construction
TPM 125/17 Installation outside solid wall construction EI 60 (v ) S [V/H] - 500 Pa EI 60 (v ) S [V/H] - 300 Pa** ■ For connection of following duct → see page 30 Minimum and maximum distance between the wall and fire damper is unlimited. ■... -
Page 22: In Gypsum Wall Construction
TPM 125/17 In gypsum wall construction EI 90 (v ) S [V/H] - 500 Pa ■ For connection of following duct → see page 30 ≥ 100 FDMS Gypsum wall construction Clamp with threaded rod → see page 30 * Dimensions of installation holes →... -
Page 23: Installation Outside Gypsum Wall Construction
TPM 125/17 Installation outside gypsum wall construction EI 60 (v ) S [V/H] - 500 Pa EI 60 (v ) S [V/H] - 300 Pa** ■ For connection of following duct → see page 30 Minimum and maximum distance between the wall and fire damper is unlimited. ■... -
Page 24: In Sandwich Wall Construction
TPM 125/17 In sandwich wall construction EI 45 (v ) S [V/H] - 500 Pa For connection of following duct → see page 30 ■ ≥ 100 * Dimensions of installation holes → see table on page 19 FDMS Sandwich wall construction - min. th. 100 mm (e.g. KINGSPAN - type KS1150FR) Sheathing of the penetration - before the fire seal is installed, it is necessary to cover the opening with sheet metal element/cover. -
Page 25: Installation Outside Sandwich Wall Construction
TPM 125/17 Installation outside sandwich wall construction EI 60 (v ) S [V/H] - 500 Pa For connection of following duct → see page 30 ■ ■ Minimum and maximum distance between the wall and fire damper is unlimited. When installing the insulation, follow the insulation manufacturer's instructions. ■... -
Page 26: In Clt Wall Construction
TPM 125/17 In CLT wall construction EI 60 (v ) S [V/H] For connection of following duct → see page 30 ■ FDMS ≥ 90 CLT wall construction Clamp with threaded rod → see page 30 Duct Screw 5x80 mm + large washer - fixing damper to the construction Fire-resistant mastic - (Hilti CFS-S ACR...) - fill the gap between construction and damper/duct Fire stop coating - th. -
Page 27: In Solid Ceiling Construction
TPM 125/17 In solid ceiling construction EI 60 (h ) S [H] - 500 Pa ■ For connection of following duct → see page 30 * Dimensions of installation holes → see table on page 19 FDMS Solid ceiling construction Clamp with threaded rod →... -
Page 28: Installation Outside Solid Ceiling Construction
TPM 125/17 Installation outside solid ceiling construction EI 60 (h ) S [H] - 500 Pa For connection of following duct → see page 30 ■ Minimum and maximum distance between the ceiling and fire damper is unlimited. ■ ■ When installing the insulation, follow the insulation manufacturer's instructions. -
Page 29: Suspension Systems
TPM 125/17 V. SUSPENSION SYSTEMS Mounting to the ceiling wall to the damper flanges is absolutely excluded. Adjacent The dampers must be suspended using threaded rods and ■ duct must be suspended or supported, as required by the mounting profiles. Their dimensioning depend on the duct suppliers. -
Page 30: Example Of Duct Connection And Anchoring To The Wall And Ceiling
TPM 125/17 Example of duct connection and anchoring to the wall and ceiling 1 FDMS 2 Duct 3 Extension piece (if required) 4 Damping pad 5 Bolt assembly M8 (bolt M8x20 mm, 2 pcs large washer M8, nut M8) 6 Protective bonding conductor 7 Clamp with threaded rod Recommended types of clamps, according to the nominal size of the FDMS Ø100–400... -
Page 31: Technical Data
TPM 125/17 VI. TECHNICAL DATA Pressure loss All data is valid for dampers in full "OPEN" position ! ■ 100,0 10,0 14000 14000 1000 10000 Air flow (m Air flow (m Version 2025-01-06 Fire damper - FDMS Page 31... -
Page 32: Fdms With Vav Actuator - Operating Mode And Settings
TPM 125/17 FDMS with VAV actuator - operating mode and settings Design .50/DM3 - GUAC-DM3 Operating mode Settings Through connecting the power supply to BU+BN (1+2) and a The selector allows the changing of values. The position of the reference signal Y to BK (3) in the range of (0)2…10 VDC, the arrow shows the value set. -
Page 33: Design .50/Pm3 - Guac-Pm3
TPM 125/17 Design .50/PM3 - GUAC-PM3 Operating mode Settings Through connecting the power supply to BU+BN (1+2) and a The selector allows the changing of values. The position of the reference signal Y to BK (3) in the range of (0)2…10 VDC, the arrow shows the value set. -
Page 34: Noise Data
TPM 125/17 Noise data All data is valid for dampers in full "OPEN" position ! ■ Level of acoustic output corrected with filter A [dB(A)] level of acoustic output corrected with filter A [Hz] frequency in octave range [m/s] air flow velocity values for size 100 [dB(A)] w [m/s] f [Hz]... - Page 35 TPM 125/17 values for size 180 [dB(A)] w [m/s] f [Hz] < 2 < 2 < 2 < 2 < 2 < 2 < 2 1000 < 2 < 2 2000 < 2 < 2 4000 < 2 < 2 <...
- Page 36 TPM 125/17 values for size 280 [dB(A)] w [m/s] f [Hz] < 2 < 2 < 2 < 2 < 2 < 2 < 2 1000 < 2 2000 < 2 < 2 4000 < 2 < 2 < 2 8000 <...
- Page 37 TPM 125/17 values for size 450 [dB(A)] w [m/s] f [Hz] < 2 < 2 < 2 < 2 < 2 < 2 < 2 1000 < 2 2000 < 2 < 2 4000 < 2 < 2 < 2 8000 <...
-
Page 38: Material, Finishing
TPM 125/17 VII. MATERIAL, FINISHING Damper casings are made from galvanized sheet metal without further surface treatment. ■ Damper collar is made from galvanized sheet metal and calcium silicate plates. ■ Damper blades are made from fire resistant asbestos free boards made of mineral fibres. ■... -
Page 39: Transportation, Storage And Warranty
TPM 125/17 VIII. TRANSPORTATION, STORAGE AND WARRANTY Logistic terms Dampers are delivered on pallets. As standard, the Another required packaging system should be approved ■ ■ dampers are wrapped in plastic foil for protection during and agreed by manufacturer. Packaging material is not transport and must not be used for long-term storage. -
Page 40: Assembly, Attendance And Maintenance
TPM 125/17 IX. ASSEMBLY, ATTENDANCE AND MAINTENANCE Assembly, maintenance and damper function check can All effective safety standards and directives must be obse- ■ ■ be done only by qualified and trained person, i.e. rved during damper assembly. “AUTHORIZED PERSON” according to the manufacturer To ensure reliable damper function it is necessary to avoid ■... -
Page 41: Commissioning And Revisions
TPM 125/17 Commissioning and revisions restoration supply from ELECTRICAL FIRE ■ Before putting the damper into operation, serviceability SIGNALISATION). Without power supply, the damper can checks and functional tests must be carried out including be operated manually and fixed in any required position. testing of functionality of all electrical elements. -
Page 42: Accessories
TPM 125/17 X. ACCESSORIES T-piece for inspection Size FDMS Ød Ød [mm] [mm] [mm] [mm] [mm] Access door for T-piece Size FDMS Ød [mm] [mm] [mm] Ø 100-125 Ø80 Female coupling Size FDMS Ød [mm] [mm] [mm] Page 42 Fire damper - FDMS Version 2025-01-06... -
Page 43: Ordering Informations
TPM 125/17 XI. ORDERING INFORMATIONS Ordering key Fire damper FDMS FDMS EN DN 630 .50/DM3 RS-ZN 200/800* - values of air flow in m (control of air flow) ∆ - pressure value in Pa (control of pressure in the duct or room) ZN - Galvanized steel A2 - Stainless steel AISI 304 A4 - Stainless steel AISI 316L... -
Page 44: Data Label
TPM 125/17 Data label Data label FDMS - is placed on the damper casing (example) MANDÍK, a.s. Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: DESIGN: WEIGHT (kg): SERIAL.NO.: MANUAL CLASSIFICATION: TPM XXX/XX Cert. No.: 1391-CPR-XXXX/XXXX, DoP: PM/XXXX/XX/XX/X EN 15650:2010 Data label FDMS with air flow control GUAC-DM3 - is placed on the damper casing (example) MANDÍK, a.s. - Page 45 The producer reserves the right for innovations of the product. For actual product information see www.mandik.com www.mandik.com MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz...
