Getting Started Guide

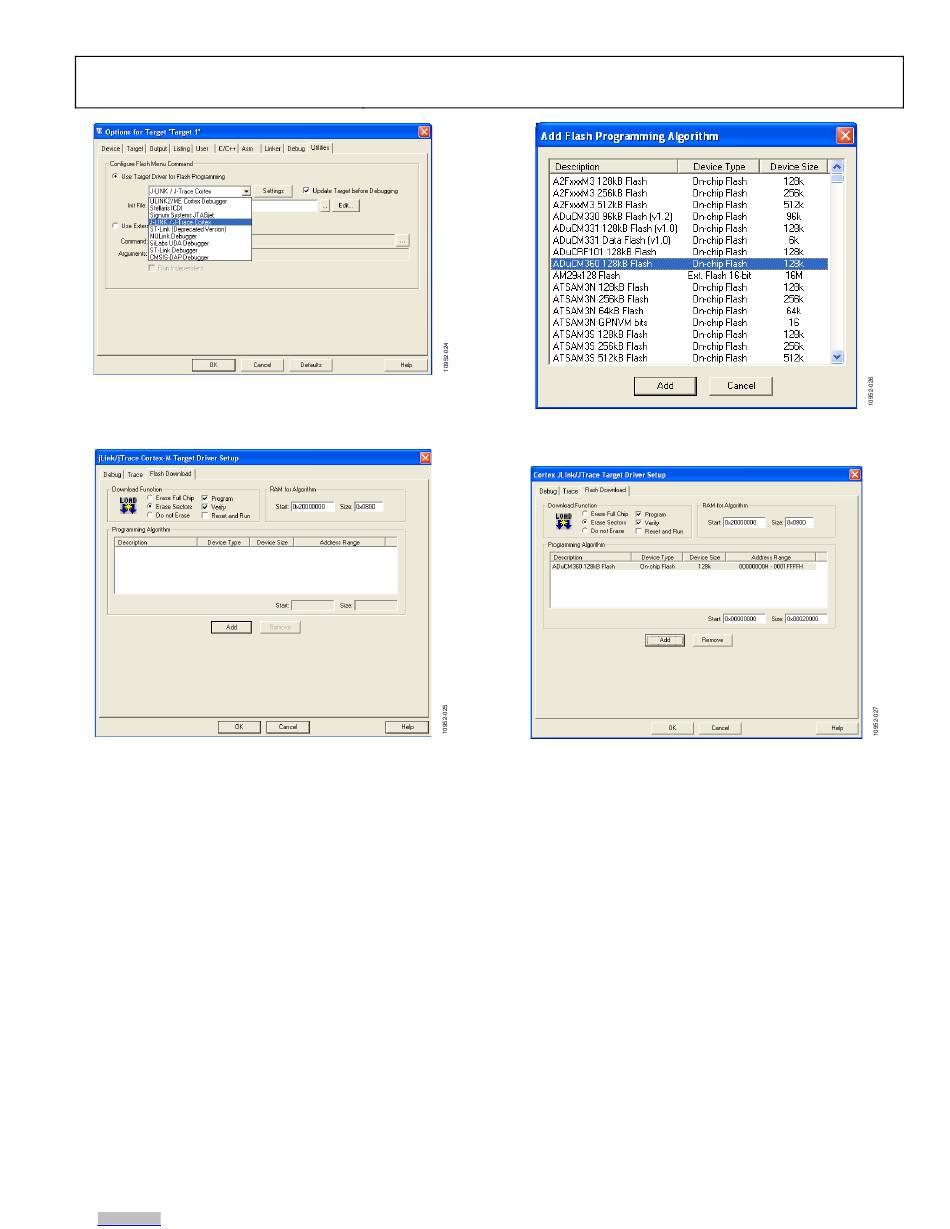

Figure 24. Continuing with Target Driver Setup

Select Settings to display the dialog box shown in

Figure 25.

Figure 25. J-Link/J-Trace Cortex Setup

Select Add to display the window shown in Figure 26.

Select the driver for the generic that you are evaluating.

For this example, use ADuCM360 128kB Flash and then

select Add.

Arrow.com.

Downloaded from

Figure 26. Add Flash Programming Algorithm

Select OK when the window shown in Figure 27 appears.

Figure 27. Finishing Target Driver Setup

10. In the C/C++ tab, add the include path as shown in

Figure 28.

11. Select OK. All the options should be properly configured

to compile, assemble, link, download, and debug using

J-Link Lite.

Rev. A | Page 9 of 16
