Getting Started Guide
Downloading/Debugging Code
Select Start/Stop Debug or press the icon
debugging (start/stop debug session). The debugger indicates
that you are using an evaluation version. Select OK.
1. Close the disassembly window.
2. Go to the ADCMeter.c file.
3. Set a breakpoint on the instruction UARTInit(). This
is done by right-clicking on the line of code and then
selecting insert/remove breakpoint or by double-clicking
to the left of the instruction. Notice that the breakpoint
is indicated by a large red dot to the left of the line in
Figure 34.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
to start
Figure 33. Starting Debugging
Press the run code button
the input signal applied across AIN0 and AIN1, converts this to
a voltage, and sends this information in an ASCII string to the
UART – baud rate 9600-8-N-1.
To stop the code from running, press
To stop debugging, press
Rev. A | Page 11 of 16
ADuCM360/ADuCM361

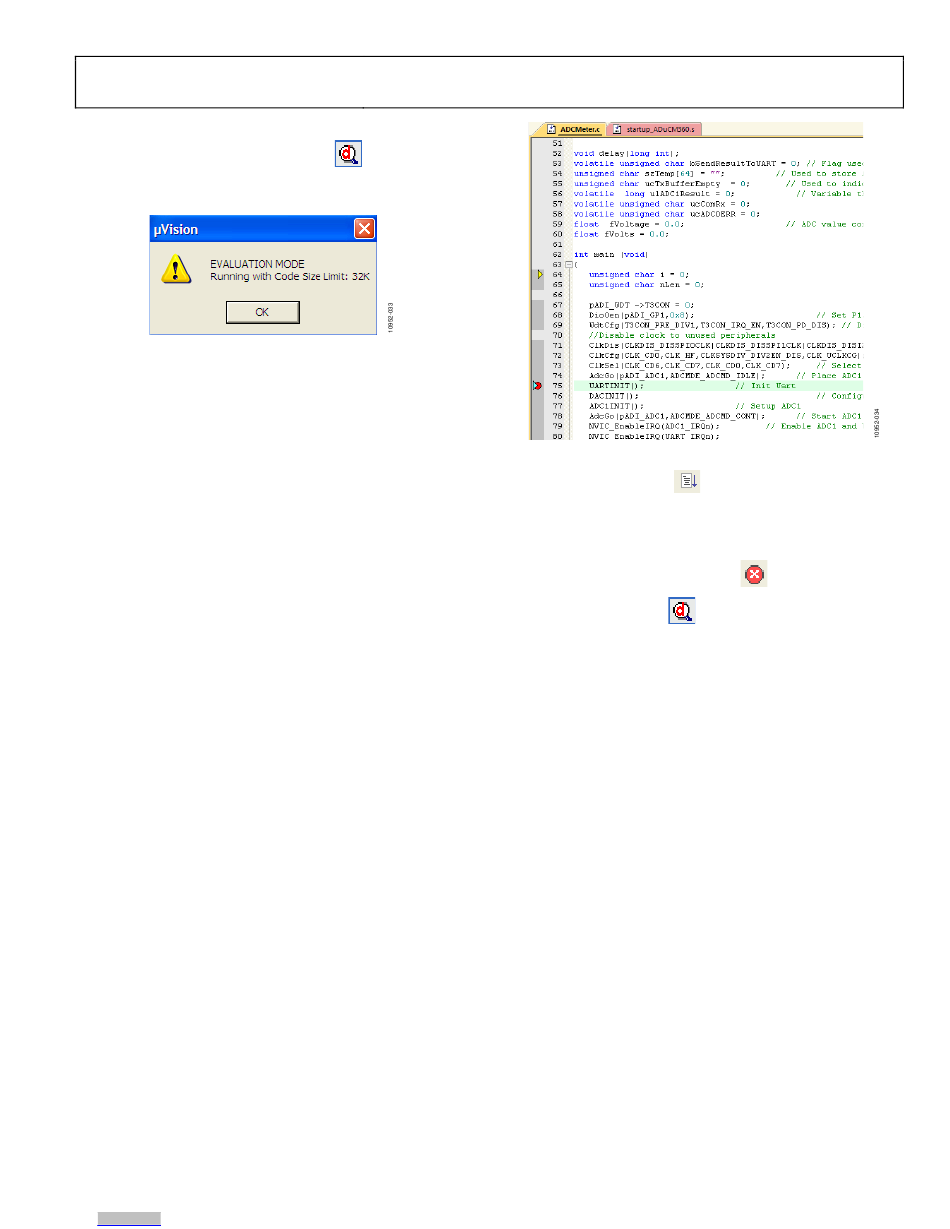

Figure 34. ADCMeter.c File
twice. The program measures
.
.
