ADuCM360/ADuCM361

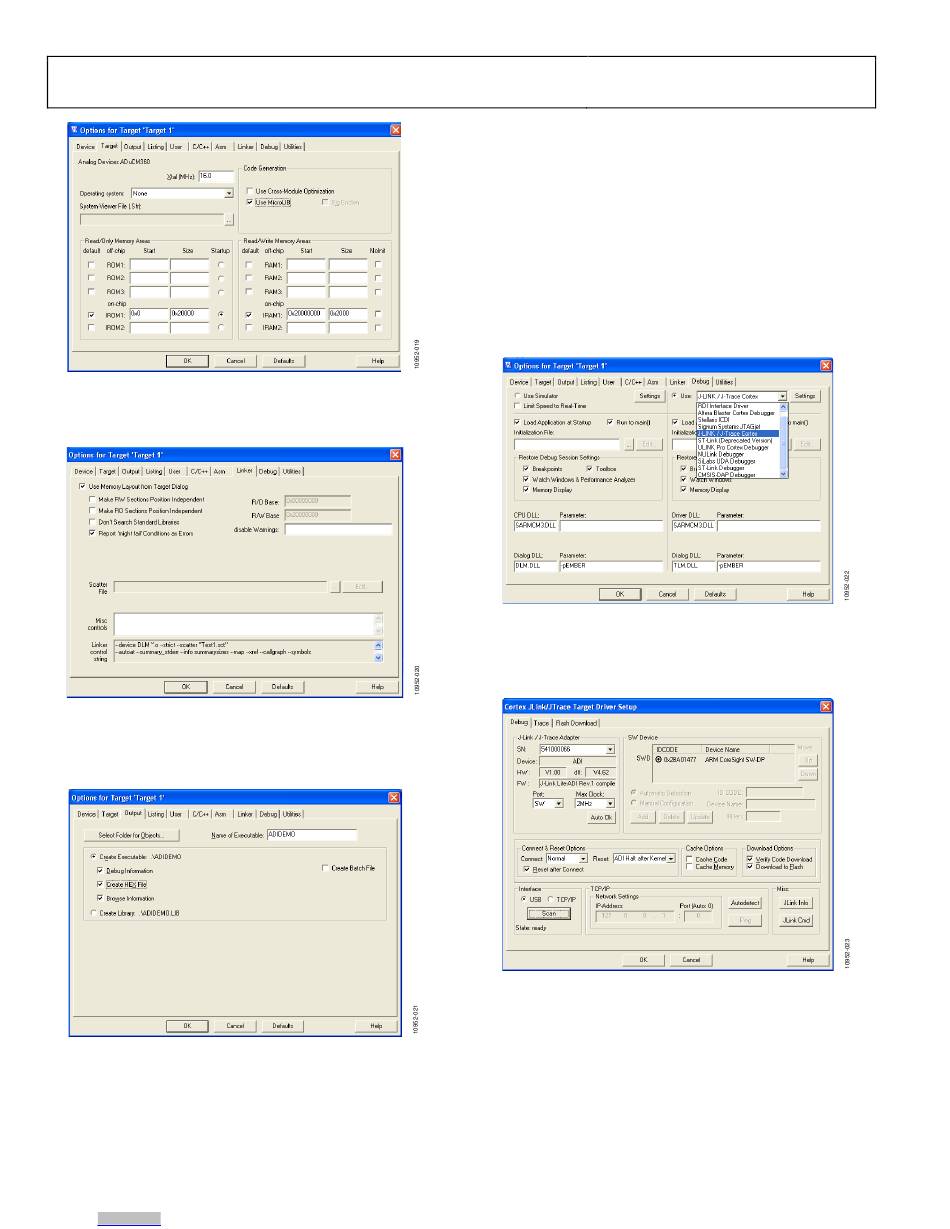

Figure 19. Options for Target
7. Select the Linker tab and then select Use Memory Layout
from Target Dialog.
Figure 20. Linker Options
8. In the Output tab, select Create HEX File. The hex file can
be used by the Windows Serial Downloader (CM3WSD).
Then, select OK.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Figure 21. Output Tab
9. Connect the emulator to the
to your PC's USB port using a USB cable.
Note that an LED on the J-Link OB emulator blinks several
times before staying on, indicating that the emulator is
communicating correctly with the PC.
Configuring the J-Link Debugger Driver
1. In the project window, right-click on Target1 and select
Option for Target1 to configure the settings of this
project.
2. In the Debug tab, select Use: and then select J-LINK/
J-Trace Cortex.
3. Select Run to main().
4. Select Settings in Figure 22 and then configure as shown in
Figure 23.
5. Select OK.
6. Under Utilities, select Use Target Driver for Flash
Programming. Then, choose J-LINK/J-Trace Cortex and
select the option Update Target before Debugging.
Rev. A | Page 8 of 16
Getting Started Guide
ADuCM360 mini-board and
Figure 22. Choose a Debugger
Figure 23. Target Driver Setup
