ADuCM360/ADuCM361

ELVES

USING ELVES.EXE WITH µVISION4
Elves is a useful tool for generating simple C function libraries
to get started on evaluating any peripheral. All the user needs
to do is choose the required parameters for each function
and Elves generates the C source code that configures all the
appropriate ADuCM360
1. In the folder, C:\ADuCMxxxV1.3\Software Tools\Elves,
open the file Elves.exe to launch Elves.

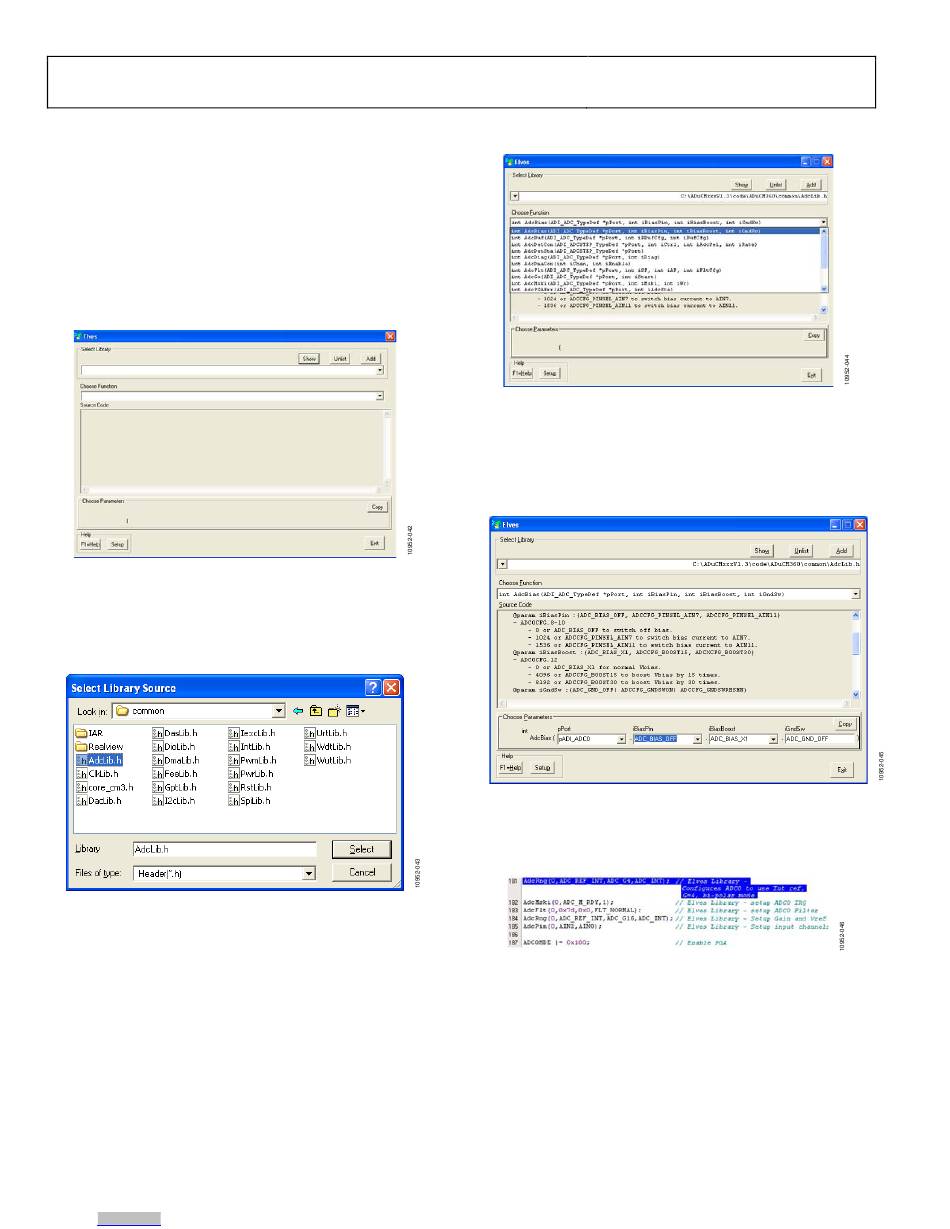

Figure 42. Launching Elves
2. To add a library, click Add and go to the directory
C:\ADuCMxxxV1.3\Code\ADuCM360\common.
A list of header files is available. Add the header file(s) that
you wish to use.
Figure 43. Select Source Library
For example, if the AdcLib.h library is added, the user can
generate functions to control the ADC.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
registers.
Take, for example, the function AdcBias, in the Choose
Function section as shown in Figure 44. The user
configures the parameters to meet their needs and each
parameter is explained in the Source Code section of the
window shown in Figure 45.
3. Once satisfied with the register settings, select Copy and
then paste this function into your source code in Keil or
IAR as shown in Figure 46.
Figure 46. Copying and Pasting Source Code
4. Before using the Help option, click Setup and point to the
following file: C:\ADuCMxxxV1.3\Software
Tools\Elves\help docs\Docs\Start_P.html.
Rev. A | Page 14 of 16
Getting Started Guide
Figure 44. List of Functions
Figure 45. Source Code
