Getting Started Guide

DEVELOPMENT SYSTEM CONTENTS

The EVAL-ADuCM360QSPZ
ADuCM360 and ADuCM361. This kit features a mini-board
(EVAL-ADuCM360MKZ) and an Analog Devices J-Link OB
emulator (USB-SWD/UART-EMUZ) that connects to a PC
USB port via a USB cable. A comprehensive set of development
tools is included on the DVD.

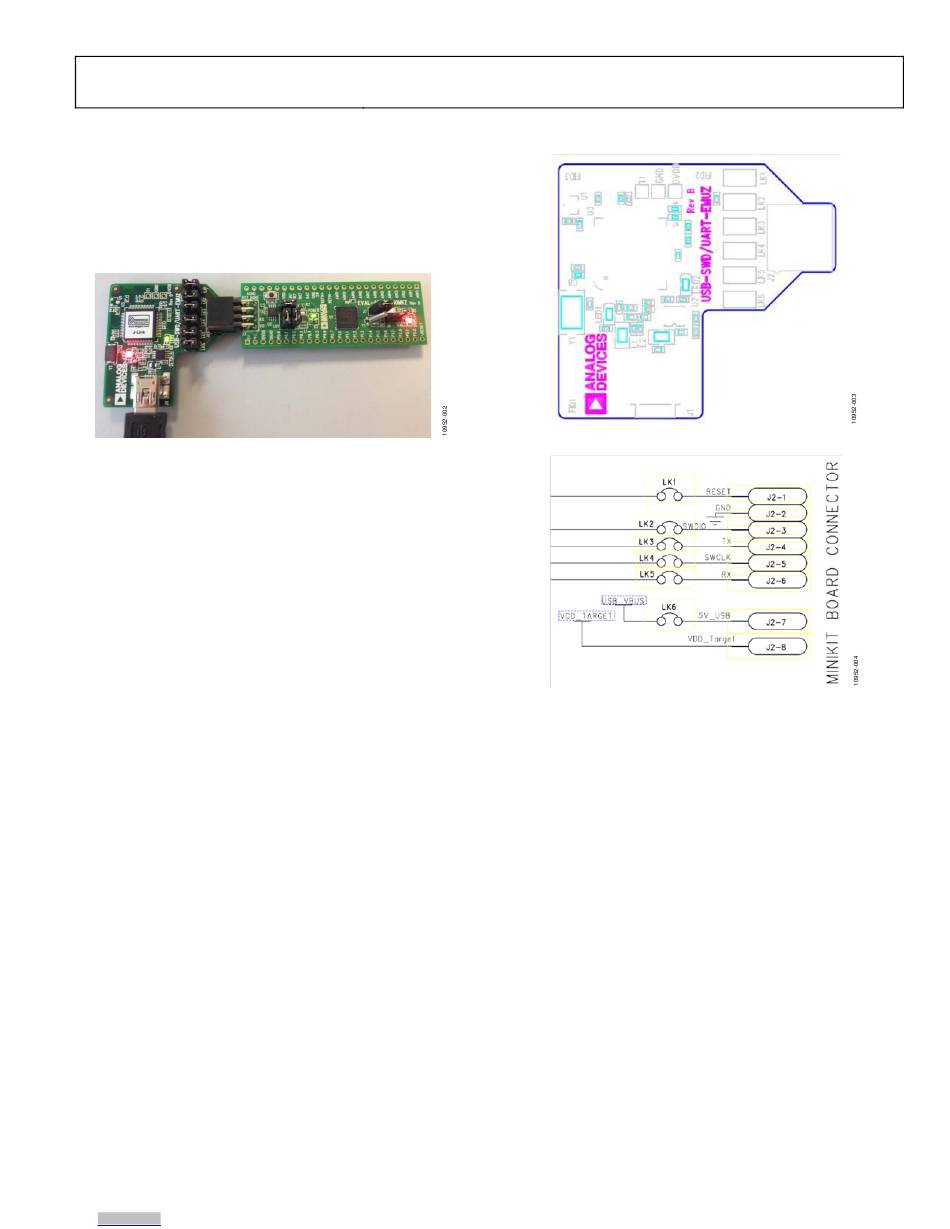

Figure 2. ADuCM360
The development system contains the following:
•
An ADuCM360
•
An Analog Devices J-Link OB emulator
•
1 USB cable
•
A DVD.

EVALUATION BOARD

The EVAL-ADuCM360MKZ
performance evaluation of the device with a minimum of
external components. The board schematic is available after
installation of the software in the documentation folder.
By default, this is
\ADuCMxxxV1.3\Documentation\ADuCM360\Evaluation
Board\Eval-ADuCM360MKZ.

J-LINK OB EMULATOR

The J-Link OB emulator provides nonintrusive emulation via a
serial wire, and also provides supply and UART communication
with the ADuCM360
the emulator board. J2 connector plugs into the
mini board. The J2 connector pinout is shown in Figure 4.
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
is an evaluation kit for the
Mini-Board Connected to J-Link OB Emulator
mini-board
mini-board facilitates
mini-board. Figure 3 shows a top view of
ADuCM360
For downloading and debugging, LK1, LK2, LK4, and LK6 must
be inserted. LK3 and LK5 are required to communicate via
UART. Required software for the J-Link OB is included in the
software installation.
Note that the J-Link OB emulator replaces the J-Link Lite and
related interface boards previously shipped with the
development system.

CONNECTING THE HARDWARE

Do not plug in the emulator and mini-board before the software
is installed. See the Software Installation section.
Rev. A | Page 3 of 16
ADuCM360/ADuCM361
Figure 3. Emulator Top View
Figure 4. J2 Connector
ADuCM360
