ADuCM360/ADuCM361
KEIL µVISION4 INTEGRATED DEVELOPMENT ENVIRONMENT

INTRODUCTION

The µVision4 Integrated Development Environment (IDE)
integrates all the tools necessary to edit, assemble, and
debug code. The ADuCM360
nonintrusive emulation limited to 32 kB code. This section
describes the project setup steps in order to download and
debug code on an ADuCM360
Devices recommends using the J-Link debugger driver.

QUICK START STEPS

From the Start menu, choose All Programs>Keil µVision4.
This loads the µVision4 IDE. The µVision4 executable is
located at C:\Keil\UV4\Uv4.exe.
1. To open one of the prepared Keil µVision example projects
in µVision, select Project>Open Project.

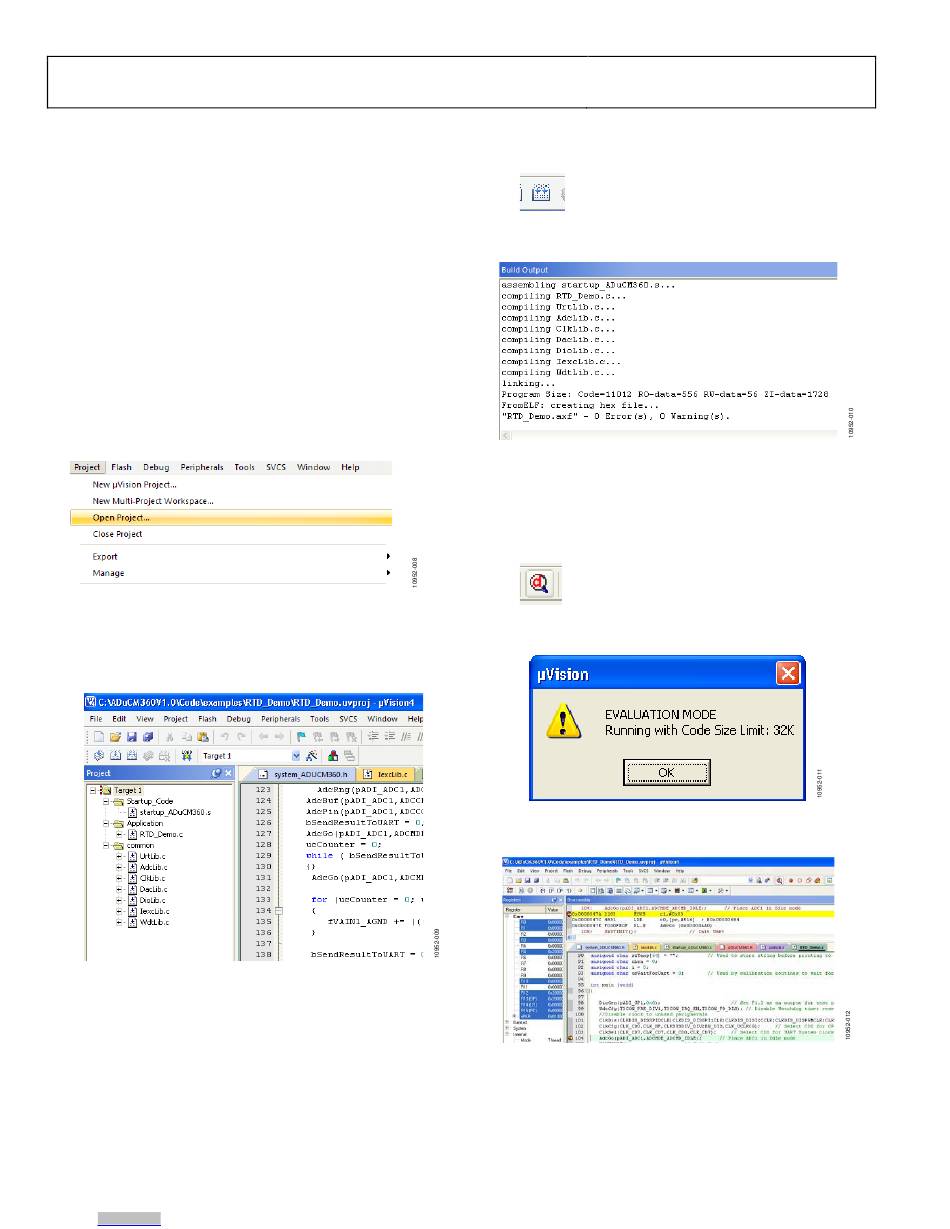

Figure 8. Open an Example Project
2. In the folder
\ADuCMxxxV1.3\Code\ADuCM360\examples\
RTD_Demo, select the file RTD_Demo.uvproj. This
opens the RTD example project.
Figure 9. RTD Example Project
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
development system supports
evaluation system. Analog
To compile and build all files, select the Build All icon
.
Once the build has completed, the code shown in Figure 10
appears.
3. To download the code to the
board and begin a debug session, connect the J-Link OB
emulator to the
using the provided USB cable.
4. In μVision, click the Start/Stop Debug session icon
or press Ctrl + F5 to start a debugging session.
5. Click OK when the window shown in Figure 11 appears.
6. Begin debugging your source code.
Rev. A | Page 6 of 16
Getting Started Guide
Figure 10. Build Output
EVAL-ADuCM360MKZ
ADuCM360 mini-board and to your PC
Figure 11. Evaluation Mode
Figure 12. Debug Source Code
