Gas
Status
Trigger and unit
Ecotec E3000-Operating-instructions-kina22en1-28-(2211)
The gas to search for is displayed. You can open the gas library with "change" and
choose from approx. 100 gases there.
User-defined gases are displayed at the end of the list.

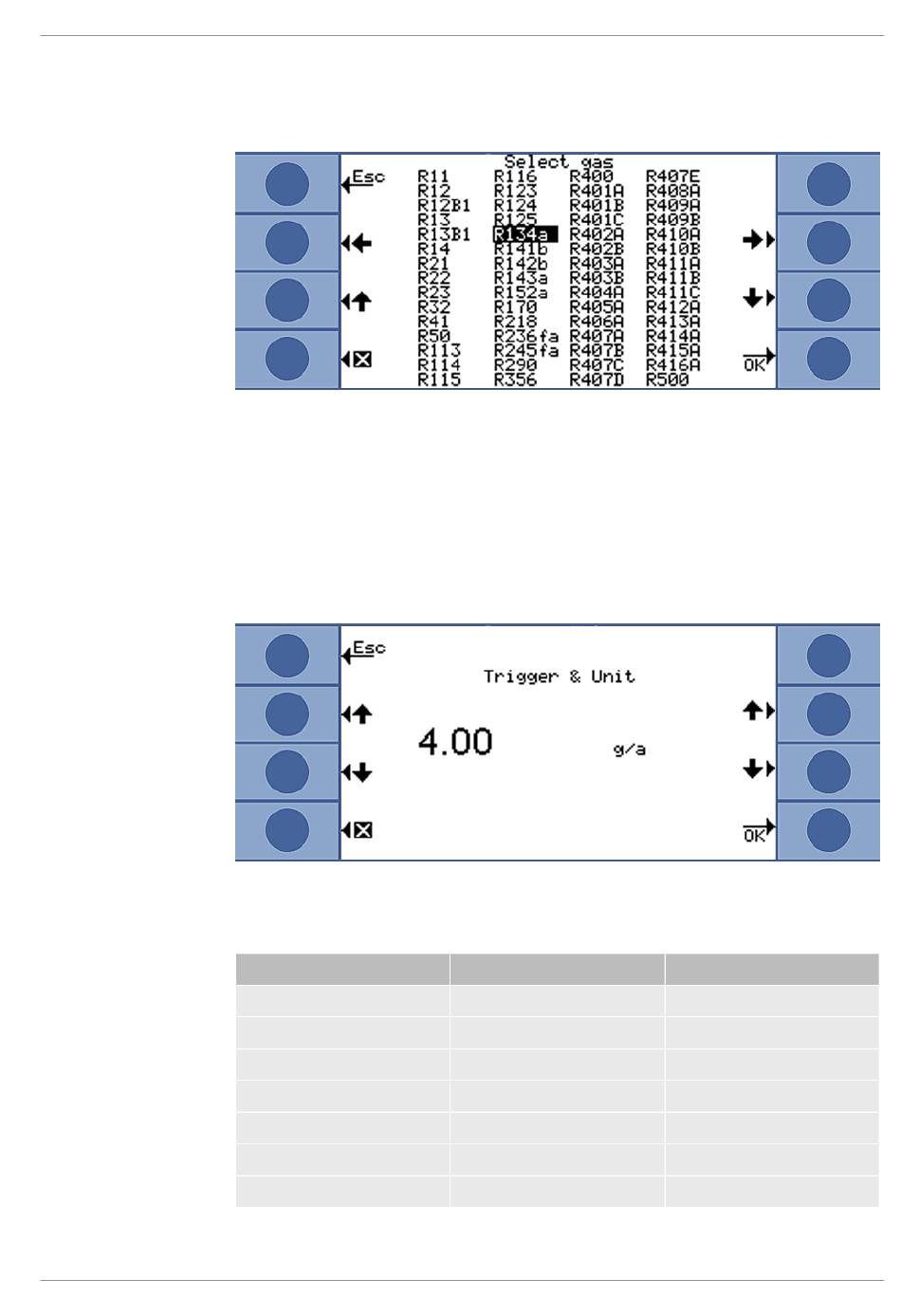

Fig. 21: Gas library
"Status" shows whether the search for this gas is activated or deactivated. You can
change the setting at any time. If the search for a gas is deactivated, it will also be
displayed in the window "Measuring parameters."
In the measurement window, the display of the measurement result for a deactivated
gas is dropped and the display is clearer.
In the "Trigger & unit" window, you can set the trigger value with the buttons on the left
and select the unit with the buttons on the right.
Fig. 22: Setting trigger value and unit
The following table shows the adjustable units and the associated limits for the trigger
value.
Units
g/a
oz/yr
ppm
mbar l/s
3
Pa m /s
atm cc/s
Torr l/s
Lower trigger value limit
0.1
0.004
1
-7
2 x 10
-8
2 x 10
-7
2 x 10
-7
2 x 10
Operation | 6
Upper trigger value limit
1000
100
999999
-2
9.9 x 10
-3
9.9 x 10
-2
9.9 x 10
-2
9.9 x 10
