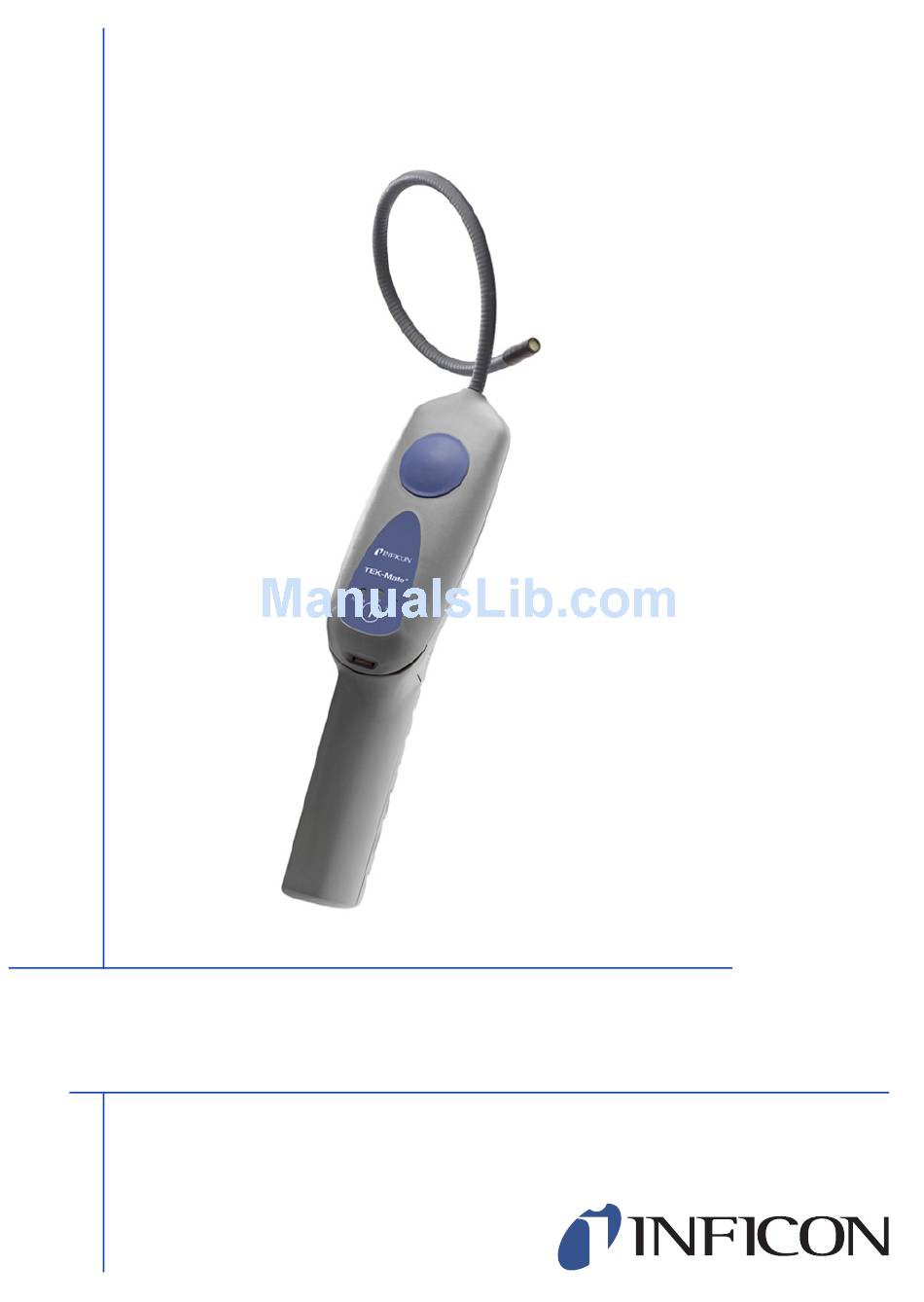

- Page 1 O P E R A T I N G M A N U A L ® TEK-Mate Refrigerant Leak Detector...
- Page 2 Equipment Description ....TEK-Mate Refrigerant Leak Detector Model Number......705-202-Gxx (Applicable to all group numbers) Applicable Directives .
- Page 3 To get the best performance from your TEK-Mate Leak Detector, please read this manual carefully before you start using it. If you have any questions or need additional assistance, please call 800-344-3304. We'll be happy to help you. Probe Tip/Filter...
-
Page 4: Getting Started
NOTE: Installation of the batteries and sensor is required before use. 3. Long press the power button to turn TEK-Mate On or Off. 4. Wait for TEK-Mate to warm up. All three indicators will illuminate and TEK-Mate will alarm during warm up. When the HIGH indicator starts flashing and TEK-Mate beeps about one beep per second, warm-up is complete. -
Page 5: How To Install The Alkaline Batteries
3. Reinstall the battery cover by aligning it with the handle and sliding it up until the latch engages. NOTES: Low battery is indicated by the green POWER indicator flashing. TEK-Mate may continue to operate for up to one hour. Dead battery is indicated by the POWER and HIGH indicators flashing. -
Page 6: How To Install Or Change The Sensor
How to Install or Change the Sensor A new TEK-Mate is shipped with its sensor packed separately. The sensor must be installed before use. This specialized sensor will operate for about 100 hours before it will need to be replaced. -
Page 7: Using Your Inficon Tek-Mate
4. When the instrument detects a leak, it will beep more rapidly and the indicator flash rate will increase to signal the leak. 5. When TEK-Mate signals a leak, pull the probe away from the leak for a moment, then bring it back to pinpoint the location. If the leak is large, toggle sensitivity to LOW to make it easier to find the exact site of the leak. -
Page 8: Cleaning And Storage
INFICON TEK-Mate from contact with these substances. Troubleshooting Except for the batteries and the sensor, the internal parts of the TEK-Mate Leak Detector are not user serviceable. If you experience a problem with TEK-Mate, see the Troubleshooting Table below to determine how to remedy the problem. If you cannot remedy the problem, take TEK-Mate to your wholesaler for evaluation. -
Page 9: Return Authorization Procedure
Return Authorization Procedure All defective TEK-Mates should be returned to your wholesaler for warranty evaluation. If you have any questions, please contact INFICON at 800-344-3304. NOTE: Do not return your defective unit directly to the factory without first contacting your wholesaler. -
Page 10: Specifications
Calibration frequency: Check annually with calibrated leak standard. *Upper leak detection limit is not specified by INFICON as there is no upper limit to the size of the leak the detector is able to detect. As no 50 g/yr leak standard was available during... -
Page 11: Replacement Parts And Accessories
Tip filters, package of 20 ..705-600-G1 Warranty and Liability INFICON warrants your TEK-Mate Refrigerant Leak Detector to be free from defects of materials or workmanship for two years from the date of purchase. - Page 12 TWO TECHNOLOGY PLACE EAST SYRACUSE, NY 13057-9714 USA Phone: +1.800.344.3304 Fax: +315.434.2520 E-Mail: service.tools@inficon.com www.inficonservicetools.com 074-477-P1F...
