Replacing The Filter Inserts Of The Capillary Filter And The Water Conservation Tip - Inficon Ecotec E3000 Translation Of The Original Operating Instructions

8 | Maintenance
8.2.5 Replacing the filter inserts of the capillary filter and the
80 / 104
DANGER
Risk of death from electric shock
There are high voltages inside the device. Touching parts where electrical voltage is
present can result in death.
► Disconnect the device from the power supply prior to any installation and
maintenance work.
► Ensure that the electrical supply cannot be switched back on unintentionally.
1 Lever out the cover of the mains plug to the right with a screwdriver.

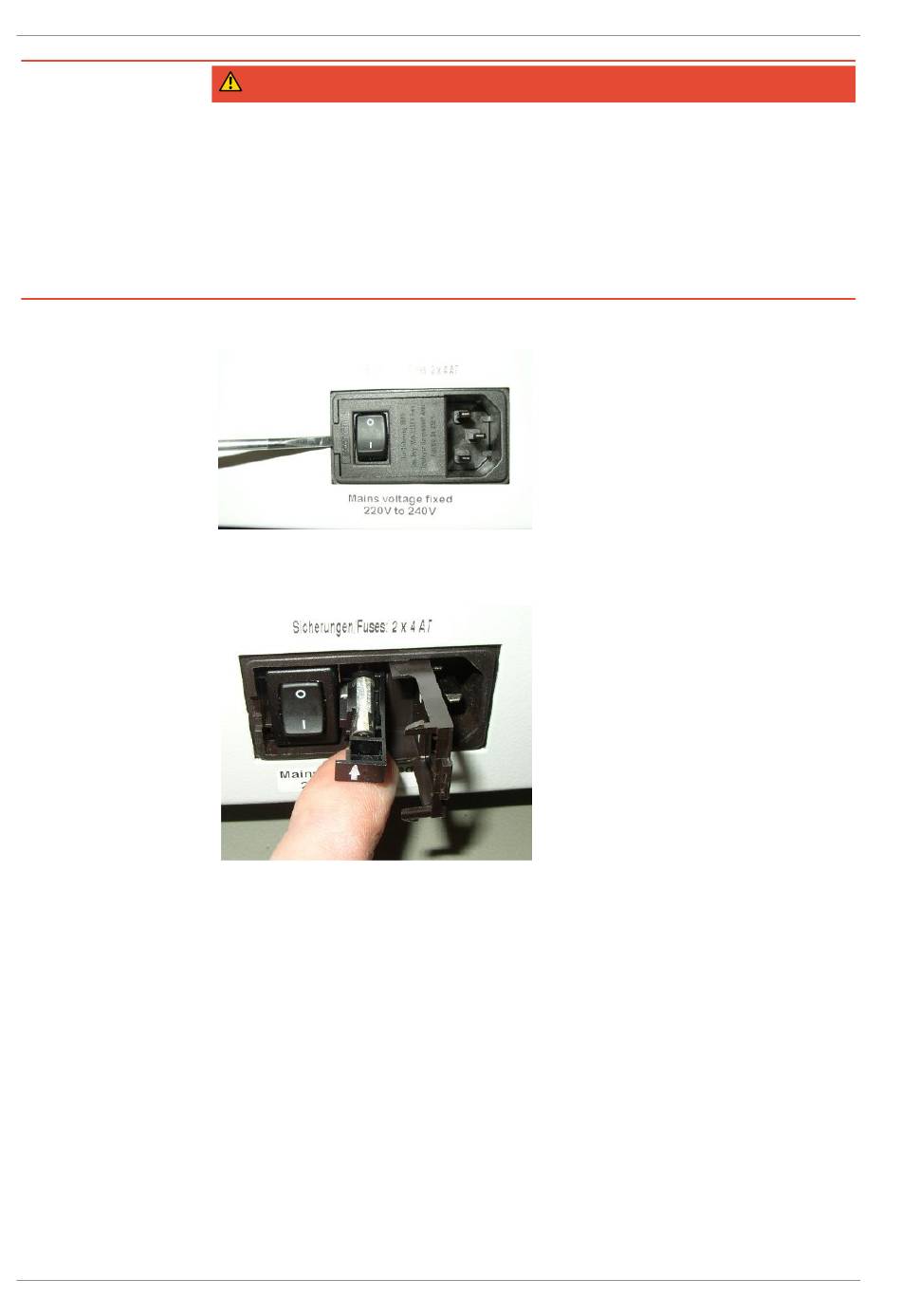

Fig. 50: Levering out cover to the right
2 Pull out the two slots and replace the fuses.
Fig. 51: Slot with fuse
3 Push the slots back in. Ensure that the arrows point up.
4 Close the flap.
water conservation tip
The plastic capillary filter, the metal capillary filter and the water conservation tip are
equipped with filter inserts.
There is a cone seal below the metal capillary filter and the water conservation tip.
This seal is already integrated into the plastic capillary filter.
