4.3 Sniffer line

Sniffer tip
Sniffer handle
Display and functions
Ecotec E3000-Operating-instructions-kina22en1-28-(2211)
You need a sniffer line to operate the device.
Sniffer lines are available in four lengths: 3 m, 5 m, 10 m and 15 m. The sniffer line
consists of a hose (multifunction cable), a handle with controls (sniffer handle) and a
sniffer tip.
There is a special sniffer line for robot applications, see "Accessories [} 85]."
There are rigid and flexible sniffer tips with different lengths.
The display on the sniffer handle shows current information on the measuring process.
You can operate functions frequently used during measurement with both buttons.
LEDs inserted in the handle illuminate the test area.
1
5

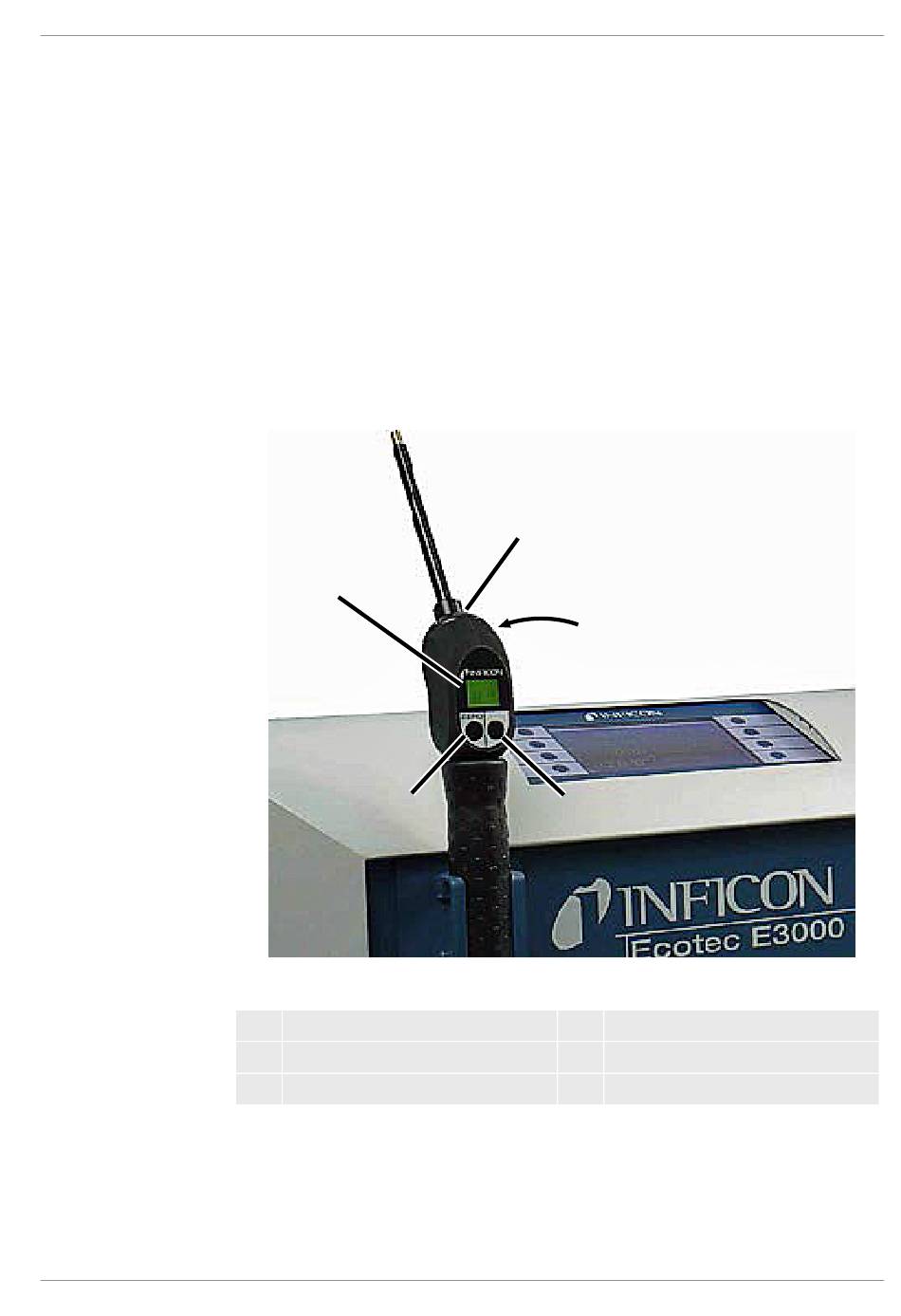

Fig. 4: Sniffer handle Display and functions
1 Display
2 LEDs
3 Speaker (rear)
If the measuring value limit is exceeded, the display switches from green to red. You
can additionally set one speaker in the handle to output a signal and the LEDs in the
handle to flash or shine with maximum brightness, see "Basic settings [} 32]."
2
3
4
4 I•Guide operation
5 ZERO alignment
