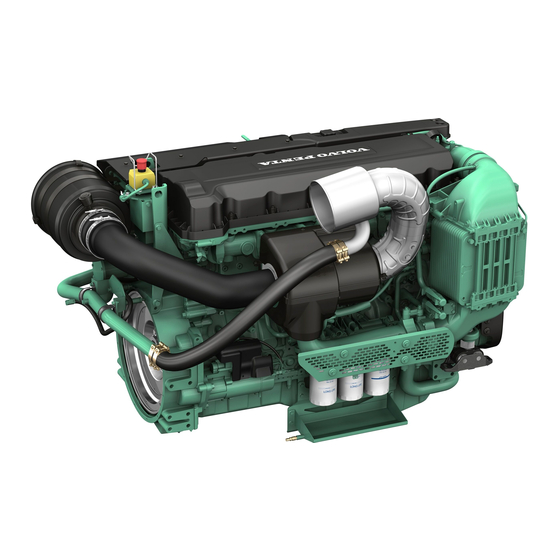

Volvo Penta D13 Operator's Manual

Hide thumbs Also See for D13:
Table of Contents

Advertisement

Quick Links

Operator's manual
D13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D13 and is the answer not in the manual?

Questions and answers

Related Manuals for Volvo Penta D13

Summary of Contents for Volvo Penta D13

  • Page 1 Operator’s manual...
  • Page 2 Do not modify or tamper with the exhaust system. • Do not idle the engine except as necessary. For more information www.P65warnings.ca.gov/marine www.p65warnings.ca.gov/products/diesel © 2018 AB VOLVO PENTA Volvo reserves the right to make changes Printed on environmentally friendly paper...

  • Page 3: Table Of Contents

    Excessive strain on a product and components ........18 Environmental care ................. 19 Recording engine data ................19 Certified Engines ..................20 Volvo Penta Dealer Network ..............21 Volvo Penta Action Service ..............21 Presentation ....................22 EATS (Exhaust Aftertreatment System) ..........22 Major Components ................
  • Page 4 Electrical Installations ................94 Electrical Welding ................95 Storage ....................... 96 Bringing Out of Storage ............... 97 Technical Data ................... 98 Engine ..................... 98 Coolant, Mixing ..................101 Identification Numbers ............... 103 Index ......................105 47710406 10-2018 © AB VOLVO PENTA...

  • Page 5: Foreword

    Pay careful attention to the safety instructions included in the manual. As the owner of a Volvo Penta marine engine, you become part of a worldwide network of dealers and service workshops that assist you with technical advice, service requirements and replacement parts.

  • Page 6: Safety Information

    This chapter describes how safety precautions are If anything remains unclear or if you are unsure of presented in the manual and on the product. Read the something, contact your Volvo Penta dealer for chapter through very carefully before you start the assistance.
  • Page 7 WARNING! Ensure that all machine guards and safety devices are in place and are functional. P0024482 CAUTION! Never use tools or products that show signs of damage. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 8 Ensure that the workplace is well ventilated and take the necessary precautions before welding or grinding begins. Always ensure that there is a fire extinguisher close at hand in the work area. P0024470 47710406 10-2018 © AB VOLVO PENTA...
  • Page 9 Spare parts — safety WARNING! Always use spare parts with the same quality as genuine Volvo Penta parts to minimize the risk of an explosion or fire. Components in fuel systems and electrical systems on Volvo Penta engines are designed and manufactured to minimize the risk of explosions and fire, in accordance with applicable legal requirements.
  • Page 10 Prohibition on use of start spray WARNING! Never use start spray or similar agents to start an engine. This may cause an explosion in the inlet manifold. Risk of personal injury. P0024483 47710406 10-2018 © AB VOLVO PENTA...
  • Page 11 Before any work on the cooling system WARNING! Stop the engine and let it cool before starting work on the cooling system. Hot fluids and hot surfaces can cause burns. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 12 Smoking is forbidden and the engine must be stopped. Proper fuel quality IMPORTANT: Always use the fuel recommended by Volvo Penta. See Technical Data in Operator’s Manual. Other fuel can damage the engine. Wrong fuel quality can also lead to higher service costs.
  • Page 13 Rinse immediately with copious amounts of water if the electrolyte gets in your eyes. Search directly after the rinsing help by medical staff. If it comes electrolyte to unprotected skin, wash immediately with soap and water. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 14 Cleanliness for sensitive components IMPORTANT: Observe meticulous cleanliness when handling system components. Even minimal amounts of dirt could cause a breakdown. Adjustment of the clutch CAUTION! Clutch adjustments must be carried out with the engine stopped. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 15: Maneuvering

    Instead, try to change the speed, trim or load distribution. If possible, take down or open the cockpit awning. Contact your boat dealer for the best solution for your boat. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 16 • anchor • paddle • flashlights Spare Parts and Tools: • impeller • fuel filters • fuses • tape • hose clamps • engine oil • other tools that may be required 47710406 10-2018 © AB VOLVO PENTA...

  • Page 17: Introduction

    Introduction Check that you heave received the correct operator’s manual before continuing reading. If not, please contact your Volvo Penta dealer. Read the Operator’s Manual carefully and learn to handle the engine, controls and other equipment in a safe manner before you start the engine.

  • Page 18: Warranty

    Introduction Warranty Your new Volvo Penta marine engine is covered by a limited warranty, subject to the conditions compiled in the Warranty Information. Note that AB Volvo Penta’s liability is limited to the specification in the Warranty Information (included CD) and Emission Control System Warranty Statement.

  • Page 19: Fuel, Oils And Coolant

    These qualities will be maintained through regular servicing and the use of spare parts with the same quality as genuine Volvo Penta parts. If reliable and purpose-built parts are not used, your safety, health, and the machine’s function may be compromised.

  • Page 20: Excessive Strain On A Product And Components

    Introduction Excessive strain on a product and components Volvo Penta products and components are not dimensioned for external loads. Never stand or step onto an engine, transmission or its components. Loads can bring about damage and the malfunction of a product or property.

  • Page 21: Environmental Care

    Introduction Environmental care Environmental care is a core value at Volvo Penta. Energy efficiency and low emissions are among the most important product related aspects and priority focus areas for Volvo Penta business. Several of the global challenges the world faces are directly or indirectly related to power industries and transports.

  • Page 22: Certified Engines

    NOTICE! Neglects or failure to follow the points listed here may invalidate the engine emission certificate. This means AB Volvo Penta can no longer guarantee engine conformity with the certified model. Volvo Penta is not responsible for damages or costs arising as a result of this.

  • Page 23: Volvo Penta Dealer Network

    The Volvo Penta global network of authorized dealers is at your service. We strongly recommend that you take your product to an authorized Volvo Penta dealer for service and repair. They are specialists in Volvo Penta products and have the accessories, genuine...

  • Page 24: Presentation

    AUS fulfills set standards and that the tank level is not too low. Should the system detect deviations a warning signal will be given and a fault code stored in the control unit. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 25 CAUTION! Wait at least two minutes after the engine has been turned off before removing the AUS/DEF hoses so that automatic drainage and depressurization of the AUS dosing system is completed. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 26: Major Components

    Presentation Major Components 1 AUS/DEF Injector 2 Post-EATS NOx-sensor 3 Pre-EATS NOx-sensor 4 QLT-sensor 5 AUS/DEF Tank 6 AUS/DEF Pump 7 Pre-EATS temperature-sensor 8 SCR-muffler 9 Post-EATS temperature-sensor 47710406 10-2018 © AB VOLVO PENTA...
  • Page 27 (5) and a day tank (3) has a filter (1) and a pump (4) that feeds the AUS/DEF in between the two tanks. A level sensor (2) prevents overfilling for the day tank. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 28 25 °C (77 °F) or in direct sunlight. Remember that the solution expands upon freezing and leave room expansion in the tank when storing in spaces where there is a risk of freezing. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 29: Operation

    IMPORTANT: AUS/DEF spillages may not be washed into drains. If a spill should occur, the solution must be absorbed using dry sand or other non-flammable material and handled according to local and national regulations. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 30 — flush with copious amounts of water and remove contaminated clothing. • eye contact — flush thoroughly for several minutes; contact physician as necessary. • inhalation — breathe fresh air and contact physician as necessary. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 31: Instruments And Controls

    The MCU is the main system panel and it communicates with all of the engine control units. The remote panel may be located outside the engine compartment and handles the same data as the MCU. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 32: Mcc System, Overview

    CAN2, CAN/J1939 5 Remote panel 6 Comap CAN2 7 Other Comap equipment 8 Data bus: CAN/J1939 9 EMS 10 Power ON 11 Shutdown Senders & Switches a Press. switch b Temp. switch c RPM sender 47710406 10-2018 © AB VOLVO PENTA...
  • Page 33 Can be set to any function when installing. 14 Red lamp; indicates that there is an alarm. The lamp flashes when a new alarm occurs. The lamp shines continuously when an alarm is active and acknowledged. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 34: Menus

    3 Press Enter (2) to confirm the selection. 4 Browse with the up/down buttons to the desired setpoint. Setpoints marked with an asterisk (*) are password protected. Press Enter to confirm the selection. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 35 When all information is shown the first image is visible again. Browse in the window using the up/ down buttons. 4 Exit the menu with the Page button (1) . 47710406 10-2018 © AB VOLVO PENTA...

  • Page 36: Settings

    Password” where 0 is shown. Press Enter (2) to confirm the selection. 4 Exit the menu by pressing Page (1). The password gives full access to the MCU. Parameters may only be changed by trained personnel. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 37 4 Number of unsuccessful starts 5 Momentary average fuel consumption 6 Service time (hours until next service) Statistical values can be adjusted with PC software (password protected); contact your Volvo Penta dealer. 1. Not standard; Comap InternetBridge hardware and adaptation of software required.

  • Page 38: Alarms

    The alarm list is not activated while values, parameters and alarm history are being reviewed. For further information on how to handle alarms and take recommended actions, refer to the Fault handling, page 45 chapter. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 39: Shutdown Module (Sdm)

    Therefore, if the shutdown override mode is active, Volvo Penta’s product liability may cease. In shutdown override mode the engine will not shut down for any reason other than overspeed. The shutdown override mode is active for as long as the switch remains in override mode.

  • Page 40: Starting

    • Start the engine bay fan, where fitted, and allow it to run for at least four minutes. • Check that there is sufficient fuel for the planned trip. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 41: Starting The Engine

    Monitor running data that is not shown in the main menu: 1 Browse with the Page button to the engine data menu (Measurements). 2 Use the up/down buttons to select the desired engine data. P0010306 47710406 10-2018 © AB VOLVO PENTA...

  • Page 42: Operation

    Take the necessary action; refer to the Fault handling, page 45 section for further information. Alarm notations remain in the alarm list until they have been acknowledged and rendered "inactive" (fault remedied). 47710406 10-2018 © AB VOLVO PENTA...

  • Page 43: Maneuvering

    By a button on the main station the operator can switch between IMO Tier II and IMO Tier III. When switching to IMO Tier II, this must be logged in the vessel logbook with time and position. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 44: Engine Shutdown

    EATS system from urea solution. Stop the Engine Auxiliary stop If the engine cannot be stopped in a normal procedure, it is possible to stop the engine via the auxiliary stop mounted on the side of the engine. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 45: After Engine Shutdown

    NOTICE! Do not turn off the main switches within 45 seconds after turning off the ignition. This in order to save engine data to the engine control unit and ACM unit to drain the EATS system from urea solution. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 46: Operation Break

    Maintenance, page 76 and Seawater System, Draining, page 80 respectively for more detailed information. Check the charge status of the battery. A poorly- charged battery can freeze and burst. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 47: Fault Handling

    This chapter describes some possible alarms and fault handling. Note that the content of this chapter does not provide full coverage of the possible fault messages and alarms. Contact a Volvo Penta workshop for assistance with diagnostic readouts and unresolved faults. Message from engine and MCC system...

  • Page 48: Alarm List

    Scroll between the alarms in the list with the enter key. Status of alarm • Unacknowledged alarms are marked with * (5) • Active alarms are indicated by a black background (6) • Inactive alarms are displayed without a black background (7) 47710406 10-2018 © AB VOLVO PENTA...
  • Page 49 E2: Which control unit. (E1=EMS, E2=ACM, E3=SDM) For more information about fault code and a complete list look in the workshop manual. Alarm list and history Abbreviations in alarm list and history Abbreviation Meaning Warning Sensor failure General alarm 47710406 10-2018 © AB VOLVO PENTA...

  • Page 50: Fault Tracing

    A number of symptoms and possible causes of engine malfunctions are described in the table below. Always contact your Volvo Penta dealer if any problems occur that you cannot solve by yourself. NOTICE! Read the safety regulations for care and maintenance in the Safety precautions for maintenance and service operations chapter before work you start work.
  • Page 51 34. Lubricating oil level too high 35. Water entry into engine 36. High back pressure in exhaust system 37. Faulty engine speed sensor 38. Unacknowledged fault codes in the alarm list or ECU alarm list 47710406 10-2018 © AB VOLVO PENTA...

  • Page 52: Fault Code Register

    Measurement resistors are missing. Coolant Level Low coolant level. • Check for coolant leakage. • Check coolant level. Refer to Coolant Level. CalibrMemFail Software corrupt. CAN BB1 CAN communication failure. CAN BB2 CAN communication failure. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 53 Check that no leakage occurs. • If engine is shut down, check SDM and make a reset. EngOverspeed Critical system fault Engine shuts down automatically. Contact a Volvo Penta workshop if the fault remains. EATS Failure Malfunction detected in the SCR/EATS system. ECUMainRelay Smart Relay Module (SRM).
  • Page 54 Check the oil level. Refer to Reverse gear, ZF. • Check that the oil strainer is not blocked. Refer to Reverse gear MGX. Contact a Volvo Penta workshop if the fault remains. InjectorCyl#1 Injector fault. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 55 Poor batteries or charging. Refer to Battery, Charging. • Check F1 fuse in SDM box. SecSupply SDM Low power supply secondary battery. • Poor batteries or charging. Refer to Battery, Charging. • Check F2 fuse in SDM box. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 56 Exhaust control valve electrical failure. VBatMeasure Battery power in EMS to low. VIN Fail SDM cabinet mixed up. WtrInFuelInd Water in Fuel. • Empty the water trap underneath the fuel filters. Refer to Fuel pre-filter with water separator. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 57 Engine revolutions are lower than expected. MIL: CANSensor Urea quality sensor power supply failure. MIL: DEFQlty Low Urea Quality or electrical failure. MIL: DEFLevel Low level in Urea tank or electrical failure at sensor. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 58 NOx-sensor In to muffler communication failure. MIL: SensSupA Power supply to sensor failure. MIL: SenSupB Power supply to sensor failure. MIL: UQS Com Communication failure with Urea Quality Sensor. The quality of urea can not be measured reliably. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 59 MIL: ExhTmpBS Exhaust temperature before muffler is to high or electrical sensor failure. • May cause decreased engine power in certain case. MIL: IMO2Mode (Depending on application mapping) Urea system is in limited mode (IMO2). 47710406 10-2018 © AB VOLVO PENTA...

  • Page 60: In Case Of Emergency

    The gear is in neutral and engine speed is limited • The engine stops If a fault occurs, confirm any fault alarm and take the necessary measures. Refer to this section and Fault Code Register. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 61: Starting Using Auxiliary Batteries

    Do not touch the connections during the start attempt: Risk of arcing. Do not bend over any of the batteries either. 5 Turn off the engine. Remove the start cables in the exact opposite order to their connection. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 62: Maintenance Schedule

    Maintenance Schedule Your Volvo Penta engine and its equipment are designed for high reliability and long life. The engines are built to have the smallest possible environmental impact. If given preventive maintenance, according to the maintenance schedule, these qualities will be retained and unnecessary malfunctions will be avoided. In order for the warranty to be valid, the owner must make sure that the services in the service intervals are performed.

  • Page 63: Maintenance

    Read through the safety precautions for maintenance and service in the Safety precautions for maintenance and service operations chapter before work on the engine is begun. Volvo Penta recommend that all servicing with the engine running should be undertaken by an authorized Volvo Penta workshop.
  • Page 64 9 Heat exchanger 10 Oil dipstick, engine 11 Oil filler cap, engine 12 Relay 13 Alternator 1 Power Module 2 By-pass filter for engine oil 3 Oil filter 4 Charge air cooler 5 Coolant Pump P0015621 47710406 10-2018 © AB VOLVO PENTA...
  • Page 65 3 Fuel feed pump (hand pump) 4 Engine Control Unit 5 Oil filler cap, engine 6 Air Filter 7 Emergency Stop 8 Radiator with charge air cooler 9 Switchable oil filters 10 By-pass filter for engine oil 47710406 10-2018 © AB VOLVO PENTA...

  • Page 66: Engine, General

    Never direct the jet from a high-pressure washer at seals, rubber hoses or electrical components. Never use the high pressure setting for engine cleaning. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 67: Air Filter, Change

    The alternator belts and drive belts have automatic belt tensioners and do not need to be adjusted. Check the condition of the drive belts. Change as necessary, refer to Alternator Belt, Replace, page 67 and Drive belt, change, page 66. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 68: Drive Belt, Change

    8 Lift the 1/2" wrench and install the new drive belt. 9 Install the belt guards. 10 Install the fan guard and fan ring round the cooling fan. 11 Start the engine and perform a function check. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 69: Alternator Belt, Replace

    8 Lift the 1/2" wrench in the belt tensioner (1) and re- install the water pump drive belt. 9 Install the belt guards. 10 Install the fan guard and fan ring round the cooling fan. 11 Start the engine and perform a function check. Pagebreak 47710406 10-2018 © AB VOLVO PENTA...

  • Page 70: Lubrication System

    Wait a few minutes to allow the oil to run down into the sump. IMPORTANT: Do not fill up above the maximum oil level. Only use a recommended grade and quality of oil. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 71: Engine Oil, Change

    9 Stop the engine. Wait a few minutes before checking the oil level. Top up as needed. Hand the old oil in to a re-cycling station. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 72: Oil Filter/By-Pass Filter, Change

    8 Put the handle in the operating position, straight down. 9 If necessary, top up the system at the first stop. Refer to section Engine Oil, Change, page 69. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 73: Fuel System

    Always observe the greatest cleanliness during refueling and work on the fuel system. All work on the unit injectors of the engine must be carried out by an authorized Volvo Penta workshop. WARNING! Fire hazard. When carrying out work on the fuel system make sure the engine is cold.

  • Page 74: Engine Fuel Filter Replacement

    Tighten the bleeding nipple while fuel is flowing out. P0015712 9 Remove the hose and put the protective cap back on the nipple. 10 Start the engine and check for leakages. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 75 7 Remove the hose and put the protective cap back on the nipple. 8 Repeat the procedure with the other filter. 9 Turn the handle to normal operating position (N). Check for leakages. P0015693 47710406 10-2018 © AB VOLVO PENTA...

  • Page 76: Fuel System, Bleeding

    Watch out for rotating components and hot surfaces. 5 Close the bleed nipple. Remove the hose and fit the protective cap to the bleed nipple. 6 Make sure there are no leaks. P0015639 47710406 10-2018 © AB VOLVO PENTA...

  • Page 77: Fuel Pre-Filter

    Maintenance Fuel pre-filter Volvo Penta fuel pre-filters are supplied in single and double models. Checks The double filter is fitted with a pressure gauge 1 that indicates when it is time to replace the filter cartridges. The filter cartridges must be replaced according to maintenance schedule recommendations, or earlier if the pressure gauge shows a pressure drop of 6–10 in.

  • Page 78: Freshwater System

    - in the worst case - can cause engine breakdown. Volvo Penta strongly recommend the use of our own coolants, ”Volvo Penta Coolant VCS Ready Mixed” or the concentrate ”Volvo Penta Coolant VCS”, which...
  • Page 79 IMPORTANT: Only use coolant recommended by Volvo Penta. Top up with the same type of coolant as already used in the system. Different types of coolant must not be mixed.

  • Page 80: Coolant, Draining

    4 Shut off all drain taps. 5 Collect the old coolant and hand it to a to a re- cycling station P0015637 D13 MH RC 47710406 10-2018 © AB VOLVO PENTA...

  • Page 81: Freshwater System, Flushing

    3 Flush until the water which runs out of the drain points is clean. 4 Close all drain points when all coolant has run out. 5 Fill up with coolant, please refer to Maintenance, page 77. P0009752 47710406 10-2018 © AB VOLVO PENTA...

  • Page 82: Seawater System

    4 Also drain/empty any auxiliary equipment such as the seawater filter etc. 5 Close/install all drain taps and plugs before you leave the boat. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 83: Anodes, Check And Change

    6 Close the drain tap (1 ). 7 Open the sea cock before starting the engine. 8 Check that there are no leaks. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 84: Impeller, Check And Change

    (M8). Screw a stud into the end of the shaft and press the impeller in using a washer and nut. Fit the cover, using a new O-ring. 5 Open the sea cock. NOTICE! Always carry a spare impeller on board. P0015643 47710406 10-2018 © AB VOLVO PENTA...

  • Page 85: Seawater Filter, Check And Cleaning

    Maintenance Seawater Filter, Check and Cleaning The seawater filter is optional equipment. Volvo Penta offers two different seawater filters. If the water where the boat is operated contains a lot of contamination, weed etc., check the filter more frequently than specified in the maintenance schedule.

  • Page 86: Intake Manifold, Checking The Drain Hole

    If a large amount of water flows out of the drain hole, from the inlet manifold, the charge air cooler must be removed and proof tested. This work should be carried out by an authorized workshop. P0015707 47710406 10-2018 © AB VOLVO PENTA...

  • Page 87: Inlet And Exhaust System

    AUS/DEF has been added to the tank. IMPORTANT: The use of solution that do not fulfill the ISO 18611 or ISO 22241 standard will compromise the aftertreatment system performance. Any warranty claims will be rejected. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 88 Damage and costs arising from a failure to meet these requirements are not covered by Volvo Penta warranty obligations. If AUS/DEF is filled from a can or pump that lacks a stop function, it is important to make sure the tank is not overfilled as the solution may leak out of the breather tube.
  • Page 89 • Injectors may be damaged • The engine will no longer fulfill emission level requirements • Corrosion in the exhaust system between the turbocharger and aftertreatment system • Expensive repairs • Expensive repairs 47710406 10-2018 © AB VOLVO PENTA...

  • Page 90: Aus/Def-Pump Filter, Change

    AUS/DEF hoses. Disconnect the battery negative terminal. P0019364 Place a collection vessel under the filter cover. NOTICE! Use approved safety equipment and collection vessel. Undo the filter cover P0019389 47710406 10-2018 © AB VOLVO PENTA...
  • Page 91 Pull out the filter. P0019390 Install the new filter (1). Install the rubber gasket (2). Screw on the filter cover (3). P0019391 47710406 10-2018 © AB VOLVO PENTA...
  • Page 92 Tightening torque: 20 (+5) Nm (14.8 +3.68 Ibf. ft.) P0019392 Reconnect the battery negative terminal. Start the engine. Check for leaks; check function. Delete any fault codes. P0019365 NOTICE! Care for equipment and the remaining AUS/ DEF. p0013225 47710406 10-2018 © AB VOLVO PENTA...

  • Page 93: Electrical System

    For the same reason, the charging circuits must never be re-connected with the engine running. Electrical Connections Check that electrical connections are dry, free from oxide, and that they are securely tightened. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 94: Battery

    • Charge the battery regularly. A battery that is kept fully loaded has a maximum service life. The easiest way to check if a battery needs charging is to use a voltmeter. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 95 1 Connect the + cable (red) to the + pole on the battery and tighten the nut. 2 Connect the – cable (black) to the – pole on the battery and tighten the nut. NOTICE! Hand in the old battery to a re-cycling station. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 96: Electrical Installations

    All equipment connected to the auxiliary battery must have separate main switches. For simultaneous charging of two independent battery circuits a separate charging distributor (accessory) should be installed on the standard alternator. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 97: Electrical Welding

    The clamp must never be connected to the engine or in such a way that current can pass through a bearing. IMPORTANT: After finished welding, re-connect the EVC connector and the alternator terminals before connecting the battery cables. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 98: Storage

    Before the boat is taken out of service for a long period of time, an authorised Volvo Penta workshop should look over the engine and other equipment. Have any faults and deficiencies attended to, so that the equipment is in order, ready for the next start.

  • Page 99: Bringing Out Of Storage

    Start the engine (if the boat is in the water) and warm up at a fast idle before loading the engine. • Check that no oil, fuel or coolant leakage occurs. • Check the oil level in the reverse gear. Top up if necessary. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 100: Technical Data

    Technical Data Engine Product sales designation D13 MH D13 MH D13 MH D13 MH Product designation D13C1–A MH D13C1–A MH D13C1–A MH D13C1–A MH D13C2–A MH D13C2–A MH D13C2–A MH D13C2–A MH Rating 1 Rating 1 Rating 1 Rating 2...
  • Page 101 600 hours or 12 months VDS = Volvo Drain Specification Select the viscosity according to the table. The temperature values refer to stable ambient temperatures. * SAE 5W/30 refers to synthetic or semi-synthetic oils. 47710406 10-2018 © AB VOLVO PENTA...
  • Page 102 Sufficient fuel lubricity is essential to protect the fuel injection system against excessive wear. Restrictions for other diesel fuels Volvo Penta also approves the use of other diesel fuels as long as the here specified restrictions are followed. However Volvo Penta does not guarantee compliance with emission legislation or fulfillment of expected lifetime with these other diesel fuels.

  • Page 103: Coolant, Mixing

    Follow the mixing recommendation on the product. The coolant should be mixed with distilled, deionized water. For Volvo Penta specified water requirements; refer to Water Quality. NOTICE! Always use “Ready Mixed” coolant if water quality cannot be determined or if it does not fulfill ASTM D4985.
  • Page 104 = 0.0462 lb/in (1.24 g/cm = 0.0448 lb/in Battery recharged at 1.24 g/cm = 0.0448 lb/in (1.20 g/cm = 0.0434 lb/in 1) Applies to batteries with tropical acid. 2) Applies to batteries with tropical acid. 47710406 10-2018 © AB VOLVO PENTA...

  • Page 105: Identification Numbers

    Technical Data Identification Numbers Product designation (1) ........... Product number (2) ........... Serial number (3) ........... P0015924 Chassis ID ........... Serial number ........... P0015685 47710406 10-2018 © AB VOLVO PENTA...
