AD8333-EVALZ
TOP:
SIGNAL GENERATOR FOR
INPUT TYPICAL SETTING: 20MHz
SIGNAL 1V p-p
SYNCHRONIZE
GENERATORS
BOTTOM:
f
GENERATOR FOR RF INPUT
4LO
TYPICAL SETTING: 5.01MHz
POWER
SPLITTER
SIGNAL
INPUT(S)

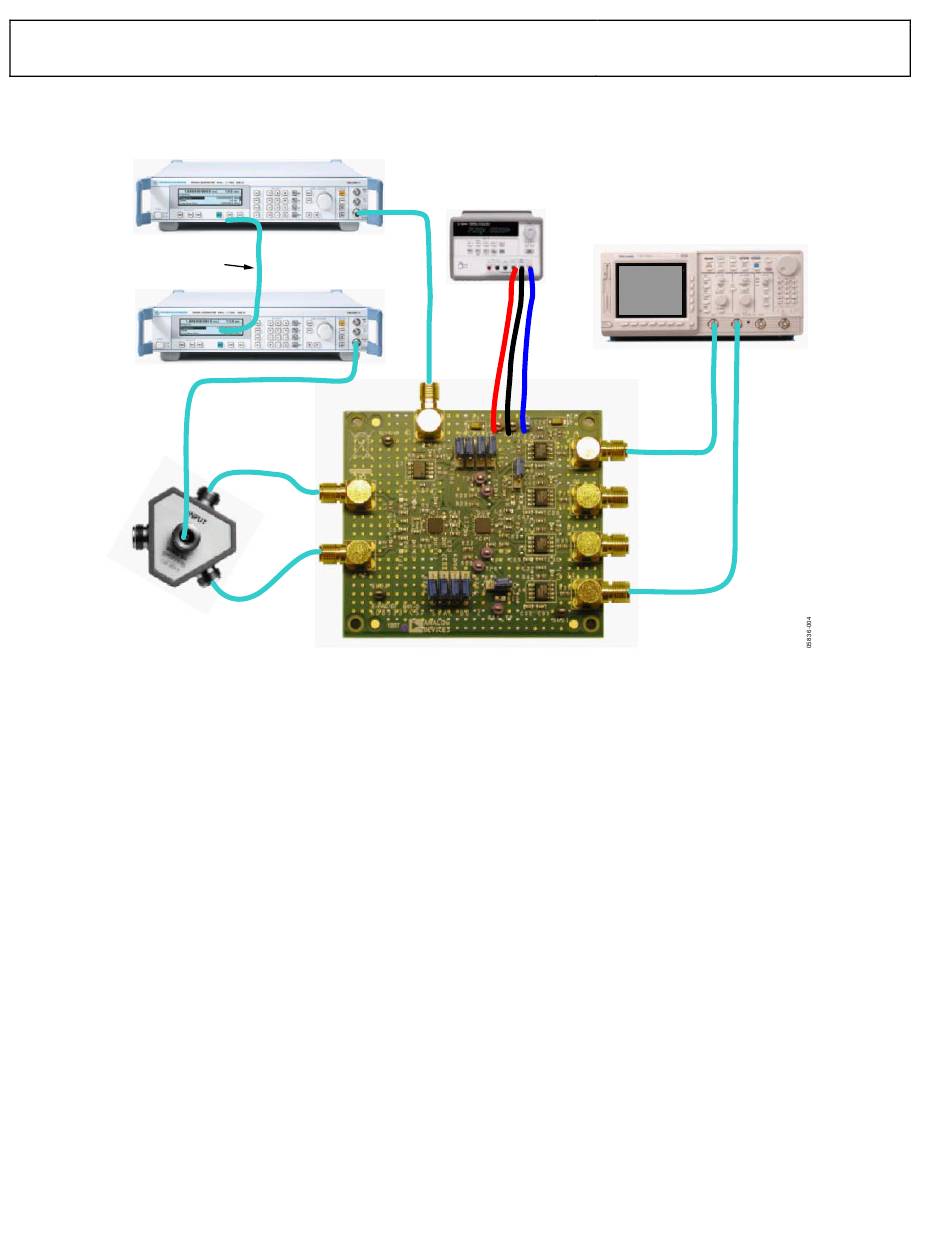

Figure 4. Typical Board Test Connections (One Channel Shown)
POWER
SUPPLY
+5V
–5V
Rev. B | Page 6 of 12
