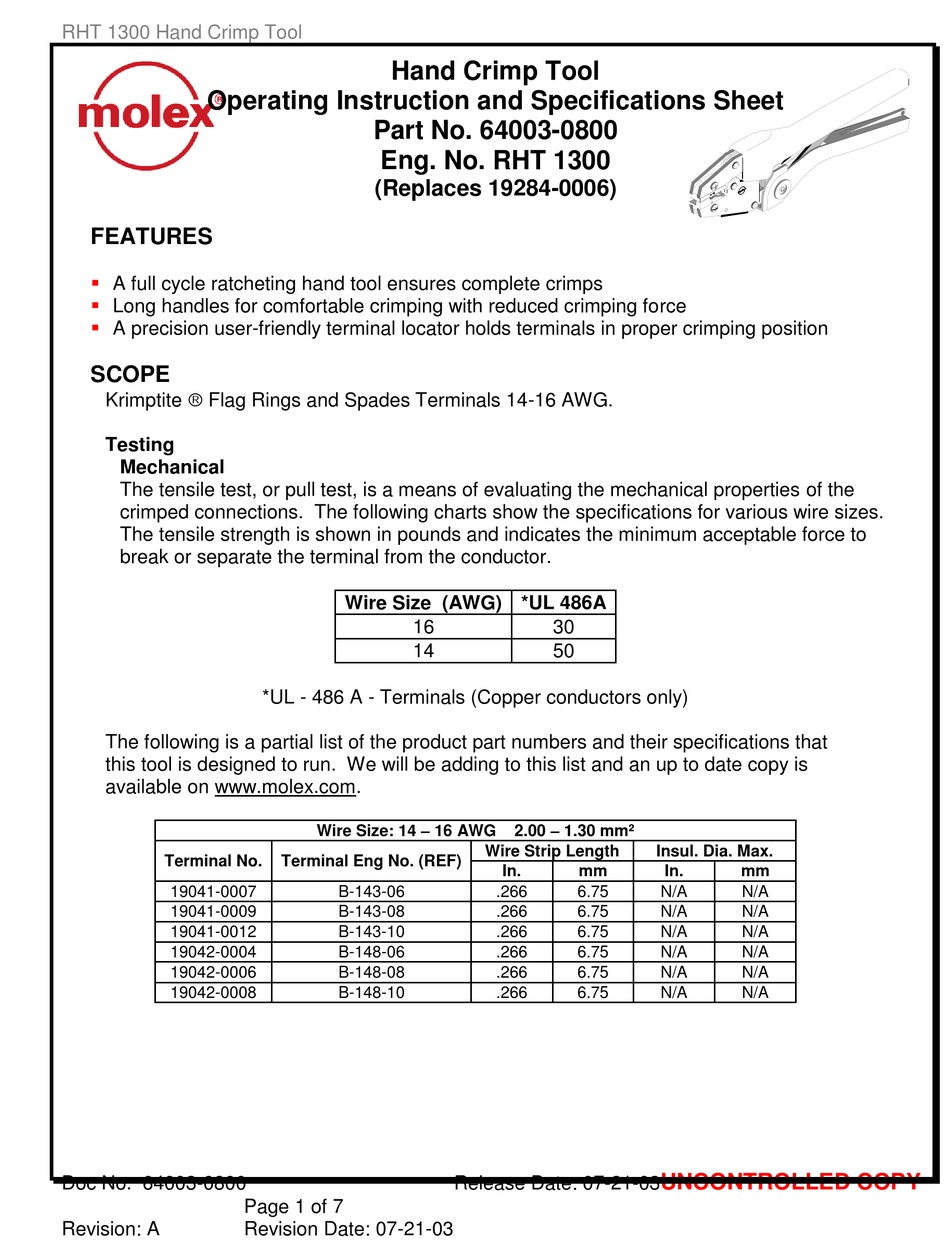

molex 64003-0800 Operating Instruction And Specifications Sheet

RHT 1300 Hand Crimp Tool
Operating Instruction and Specifications Sheet
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator holds terminals in proper crimping position
SCOPE
Krimptite  Flag Rings and Spades Terminals 14-16 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the specifications for various wire sizes.
The tensile strength is shown in pounds and indicates the minimum acceptable force to
break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that
this tool is designed to run. We will be adding to this list and an up to date copy is
available on www.molex.com.
Terminal No.
19041-0007
19041-0009
19041-0012
19042-0004
19042-0006
19042-0008
Doc No. 64003-0800
Revision: A
Hand Crimp Tool
Part No. 64003-0800
Eng. No. RHT 1300
(Replaces 19284-0006)
Wire Size (AWG) *UL 486A
16
14
*UL - 486 A - Terminals (Copper conductors only)
Wire Size: 14 – 16 AWG
Terminal Eng No. (REF)
B-143-06
B-143-08
B-143-10
B-148-06
B-148-08
B-148-10
Page 1 of 7
Revision Date: 07-21-03
30
50
2.00 – 1.30 mm²
Wire Strip Length
In. mm
.266 6.75
.266 6.75
.266 6.75
.266 6.75
.266 6.75
.266 6.75
Release Date: 07-21-03
Insul. Dia. Max.
In. mm
N/A N/A
N/A N/A
N/A N/A
N/A N/A
N/A N/A
N/A N/A
UNCONTROLLED COPY
