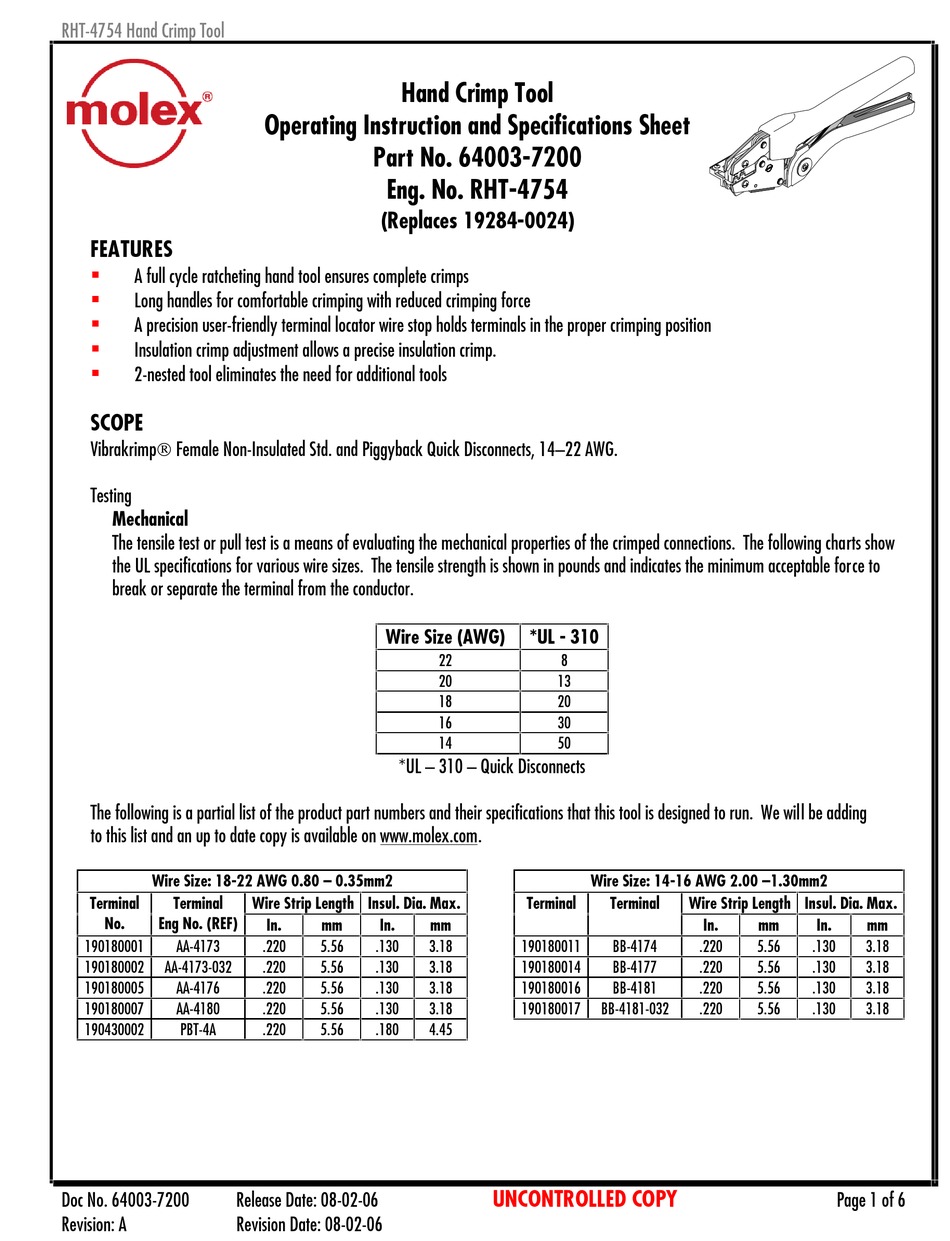

molex RHT-4754 Operating Instruction And Specifications Sheet

RHT-4754 Hand Crimp Tool
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Insulation crimp adjustment allows a precise insulation crimp.
2-nested tool eliminates the need for additional tools
SCOPE
Vibrakrimp Female Non-Insulated Std. and Piggyback Quick Disconnects, 14–22 AWG.
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The following charts show
the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force to
break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Wire Size: 18-22 AWG 0.80 – 0.35mm2
Terminal Terminal
No. Eng No. (REF)
190180001 AA-4173
190180002 AA-4173-032
190180005 AA-4176
190180007 AA-4180
190430002 PBT-4A
Doc No. 64003-7200 Release Date: 08-02-06
Revision: A Revision Date: 08-02-06
Hand Crimp Tool
Operating Instruction and Specifications Sheet
Part No. 64003-7200
Eng. No. RHT-4754
(Replaces 19284-0024)
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Strip Length Insul. Dia. Max.
In. mm In. mm
.220 5.56 .130 3.18
.220 5.56 .130 3.18
.220 5.56 .130 3.18
.220 5.56 .130 3.18
.220 5.56 .180 4.45
*UL - 310
22 8
20 13
18 20
16 30
14 50
Wire Size: 14-16 AWG 2.00 –1.30mm2
Terminal Terminal
190180011 BB-4174
190180014 BB-4177
190180016 BB-4181
190180017 BB-4181-032
UNCONTROLLED COPY
Wire Strip Length Insul. Dia. Max.
In. mm In. mm
.220 5.56 .130 3.18
.220 5.56 .130 3.18
.220 5.56 .130 3.18
.220 5.56 .130 3.18
Page 1 of 6
