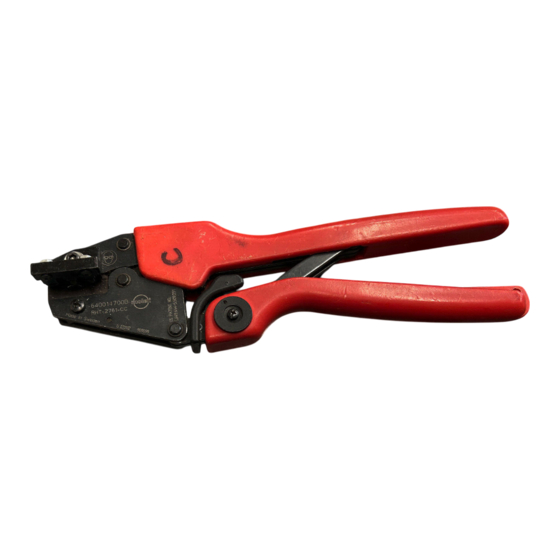

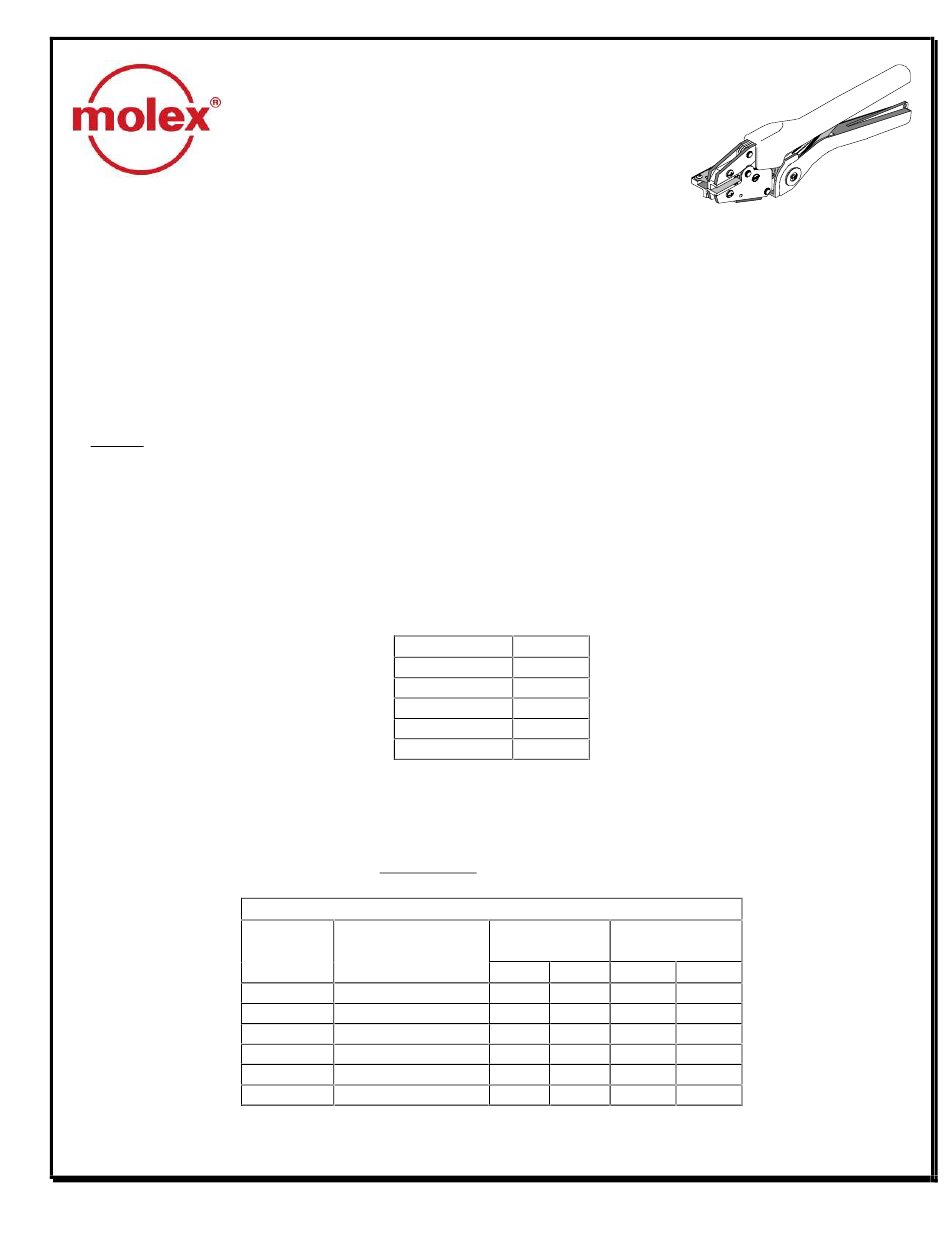

RHT-2761-CC Hand Crimp Tool
FEATURES
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
Products: InsulKrimp™ Male and Female Fully Insulated Quick Disconnect Couplers, Perma-Seal™ Quick Disconnect Couplers and Snap
Plug Receptacles 14 - 22 AWG, Conductor Crimp only.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com.
Doc No. ATS-640014700
Revision: B
Hand Crimp Tool
Operating Instruction Sheet and Specifications
Order No. 64001-4700
Engineering No. RHT 2761-CC
(Replaces 19285-0033)
Wire Size (AWG)
*UL – 310 – Quick Disconnects and Couplers
Wire Size: 18-22 AWG 0.80-0.35mm²
Terminal No.
Terminal Eng. No. (REF)
19004-0001
AA-2260
19005-0001
AA-2261
19164-0015
SAA-9260
19164-0017
SAA-9261
19164-0052
SBRA-8156N
19164-0053
SBRA-8180N
Release Date: 11-04-03
Revision Date: 03-14-07
*UL - 310
22
8
20
13
18
20
16
30
14
50
Insulation Diameter
Wire Strip Length
In.
mm
.313
7.94
.313
7.94
.313
7.94
.313
7.94
.313
7.94
.313
7.94
UNCONTROLLED COPY
Maximum
In.
mm
.145
3.68
.165
4.19
.145
3.68
.165
4.19
.130
3.30
.130
3.30
Page 1 of 6
