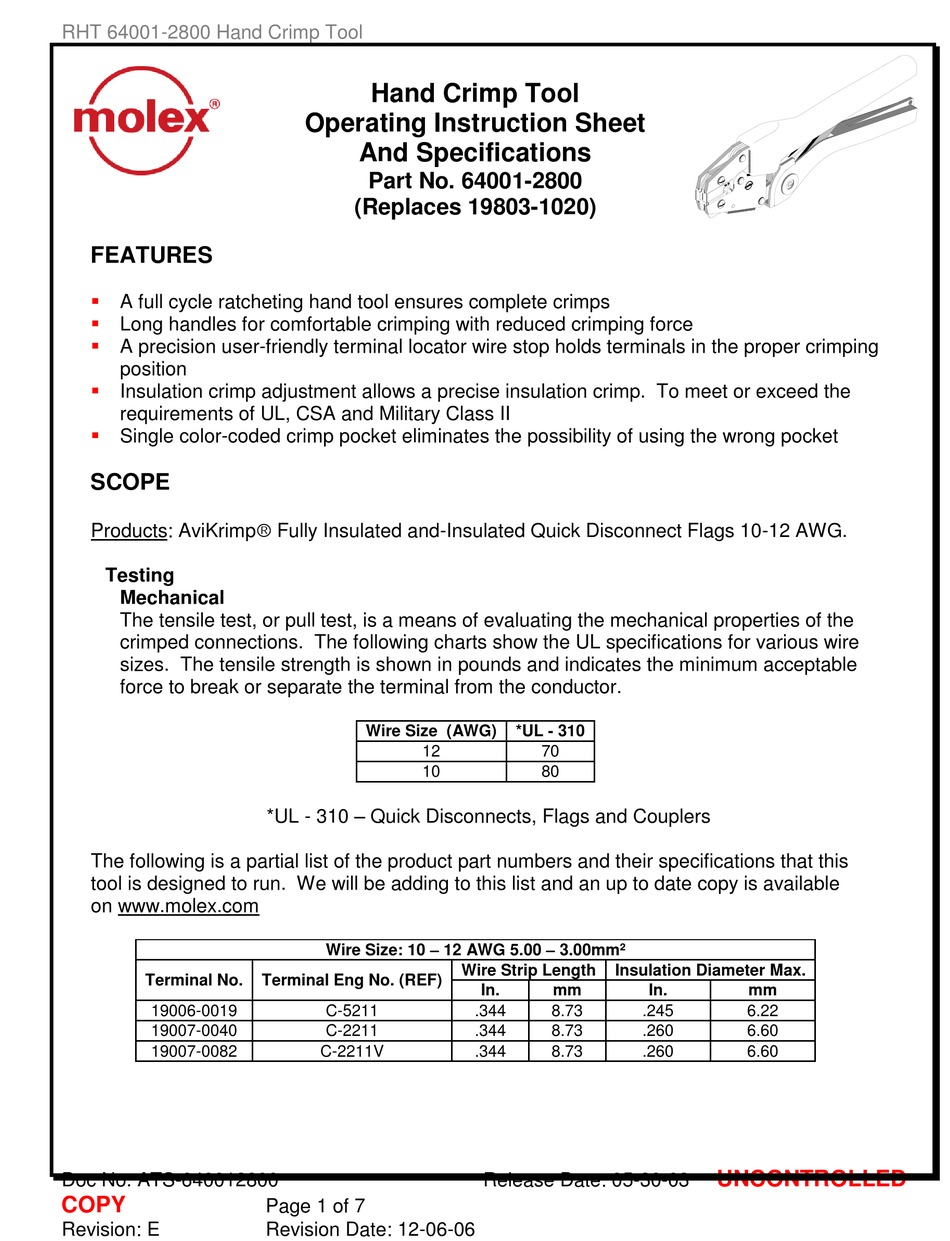

molex 64001-2800 Operating Instruction Sheet And Specifications

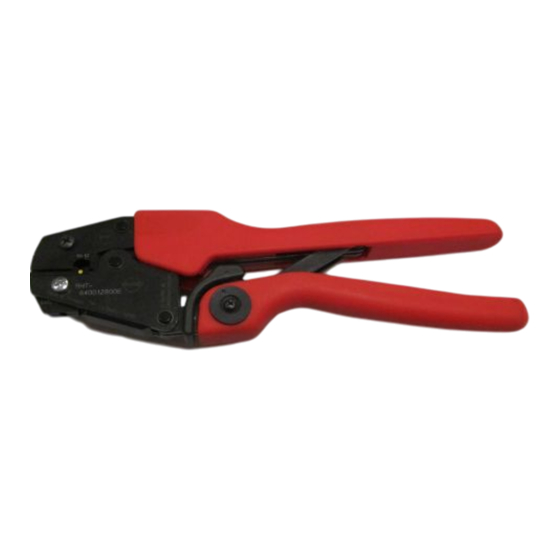

RHT 64001-2800 Hand Crimp Tool

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Class II

Single color-coded crimp pocket eliminates the possibility of using the wrong pocket

SCOPE

Products: AviKrimp Fully Insulated and-Insulated Quick Disconnect Flags 10-12 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this
tool is designed to run. We will be adding to this list and an up to date copy is available
on www.molex.com
Terminal No.
19006-0019
19007-0040
19007-0082
Doc No. ATS-640012800
COPY
Revision: E
Hand Crimp Tool
Operating Instruction Sheet
And Specifications
Part No. 64001-2800
(Replaces 19803-1020)
Wire Size (AWG)
12
10
*UL - 310 – Quick Disconnects, Flags and Couplers
Wire Size: 10 – 12 AWG 5.00 – 3.00mm²
Terminal Eng No. (REF)
C-5211
C-2211
C-2211V
Page 1 of 7
Revision Date: 12-06-06
*UL - 310
70
80
Wire Strip Length Insulation Diameter Max.
In. mm
.344 8.73
.344 8.73
.344 8.73
Release Date: 05-30-03
In. mm
.245 6.22
.260 6.60
.260 6.60
UNCONTROLLED
