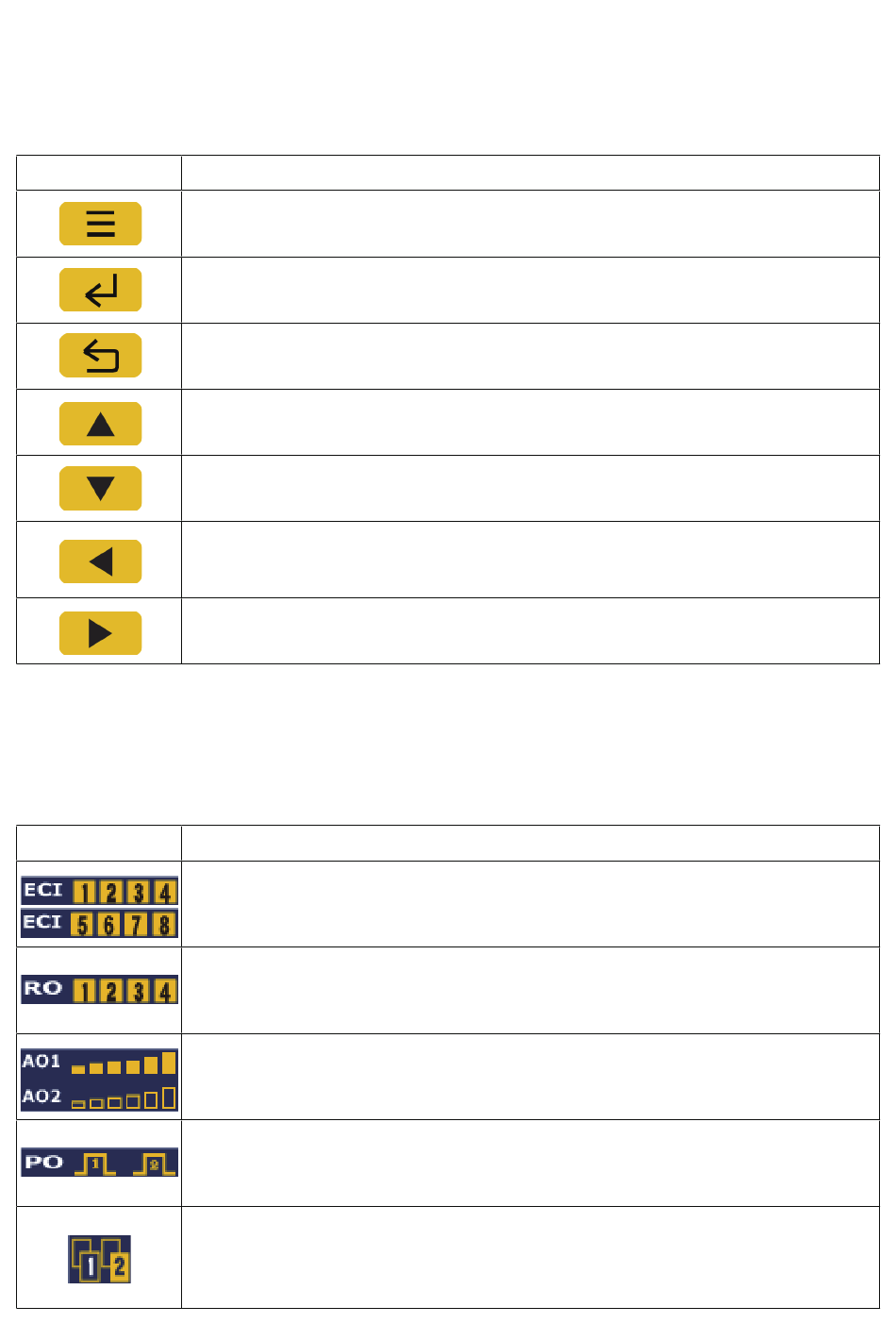

3.2.1 Operation buttons

The buttons function below the screen will vary depending on the content of the
screen,and function icon for the button is displayed at the bottom of the screen. The
functions described are as follows:
Icon
Menu key
Into quickly index list page
Enter / Confi rm key
Go to the next menu page or confi rm the input parameters
ESC key
Return to the previous page
Up key
Move the cursor or increase the number
Down key
Move the cursor or decrease the number
Left key
Move the number input position or press and hold 2 seconds to return to
the previous page
Right key
Go to next page

3.2.2 Symbol icons in main screen

On the left side of the main screen is the I/O status and the system indication icon,
describe as below:
Icon
Digital input 1~8 status indication, the number is displayed when there is
an input trigger.
Relay output 1~4 status indication, the number is displayed when there
is a relay output.
Analog output status indication, each cell represents a 20% output
percentage.
Pulse output 1~2 status indication, the number is displayed when there
is a pulse output.
Communication indication, when the block to blink that mean is data
being transmitted or received, upper block is receive, the lower block is
transmission.
1 and 2 are port 1 and port 2.
Description
Description
10
