Load type indication, resistive / capacitive / inductive type.
System power 1 ~ 4 quadrant indication.
TOU execute indication, the numbers below are represented by left to
right respectively:
Season / Time table / Segment number
Data logging execute indication.
Current load indication, each cell represents a 10% load percentage.

3.3 Measurement data display and key operation

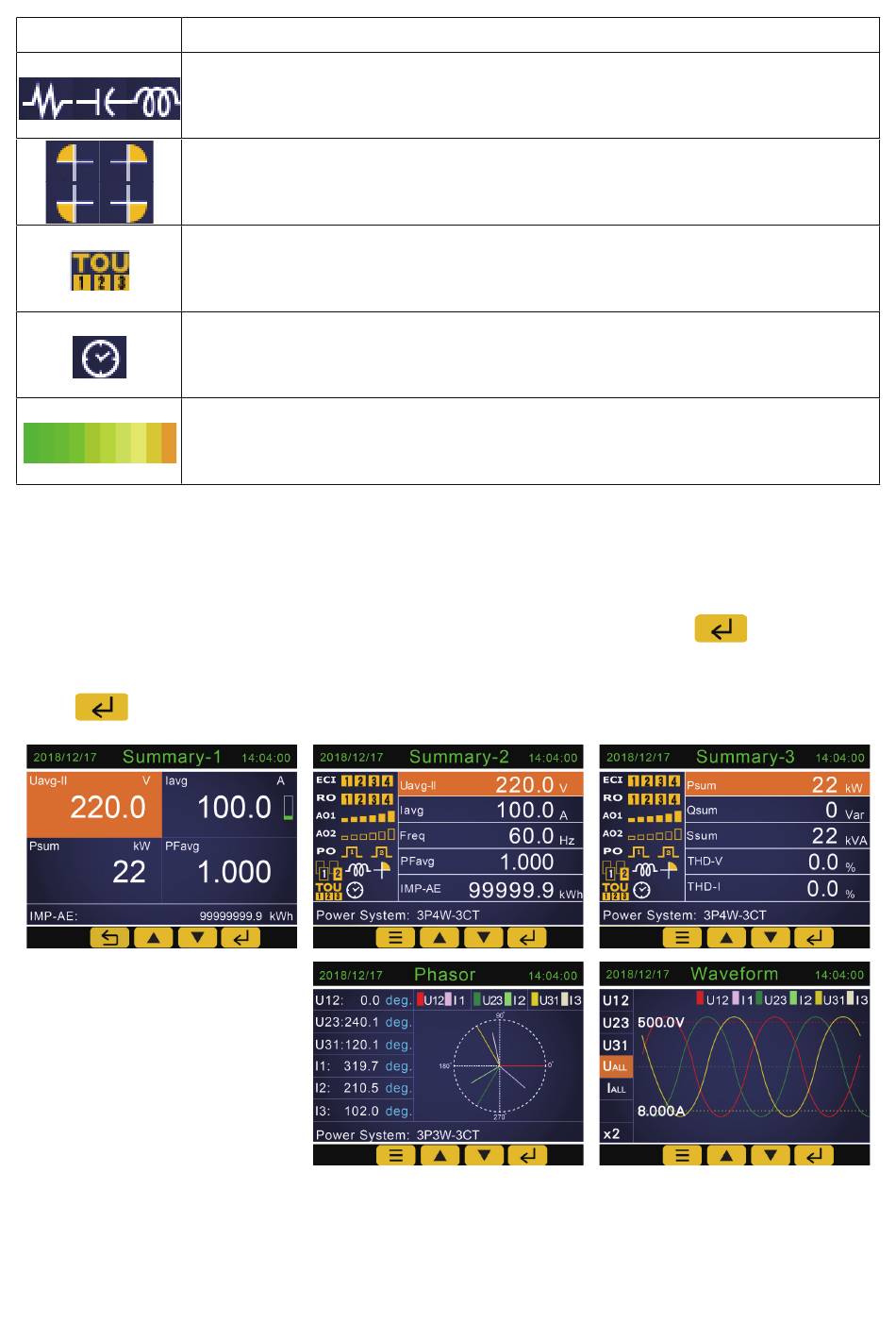

The main screen of the meter has three kinds of summary display page and two
function pags can be set, also can get these pages scrolling. Press
summary display pages, will see the screen appears yellow cursor, press the up and down
keys to move the yellow cursor to the measurement parameters you want to query and
press again, then can get details of the parameters.
Description
11
p p p p p p y p p p
in any of the
