User Guide
EVALUATION BOARD SOFTWARE
OVERVIEW OF THE MAIN ADA4570
EVALUATION SOFTWARE GUI WINDOW
Figure 17
shows the main EVAL-ADA4570SDZ GUI window when
starting the ADA4570 Evaluation Board Software.
analog.com

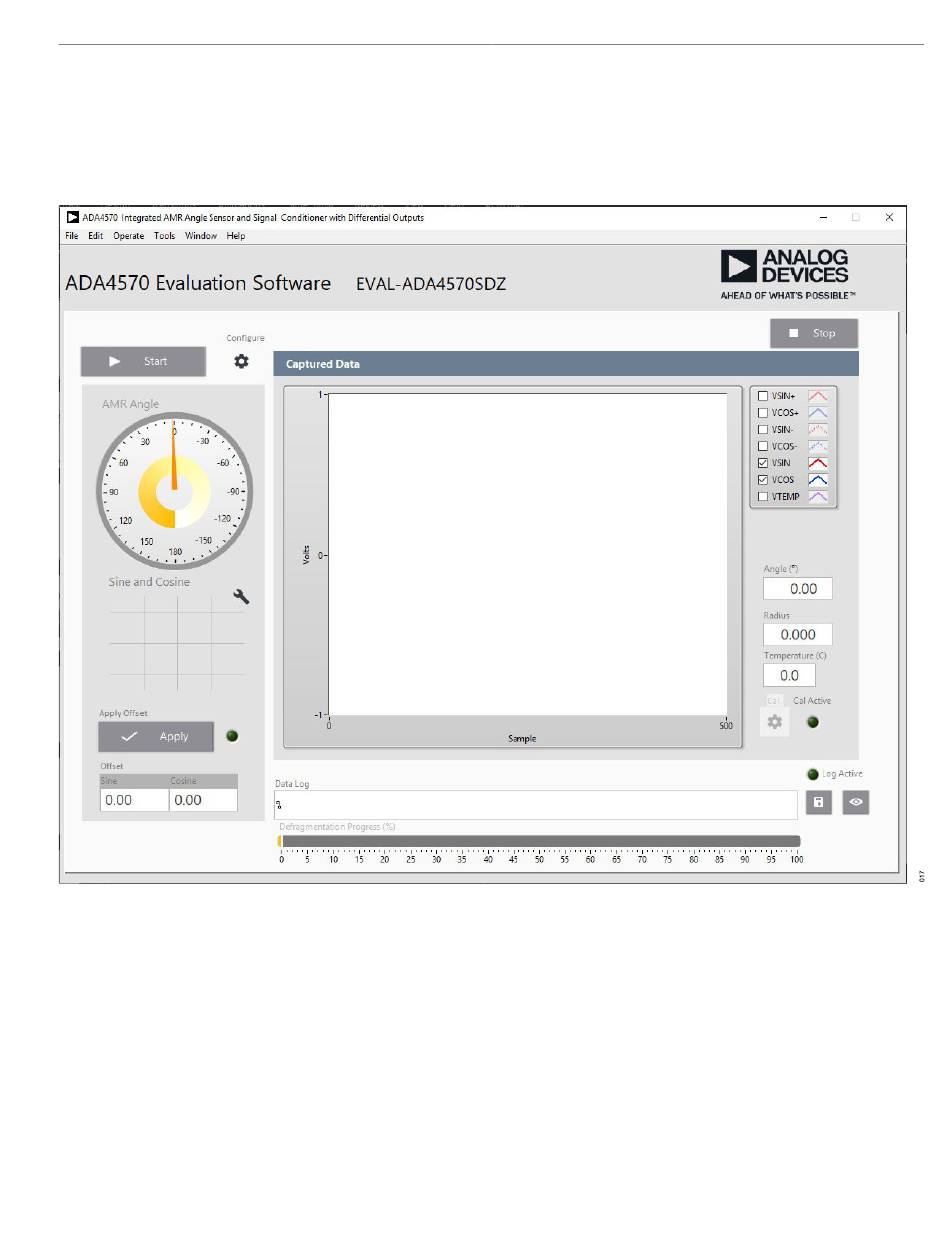

Figure 17. ADA4570 Evaluation Board Software (EVAL-ADA4570SDZ) Main Window
Initially, all plots are blank, and the data capture is preset for data
acquisition of the differential VSIN and VCOS signals data capture.
Click Start to begin the data acquisition, and the Captured Data
window of the GUI displays the selected signals.
EVAL-ADA4570
Rev. 0 | 9 of 17
