EVALUATION BOARD QUICK START
The EVAL-ADA4570SDZ evaluation board can be controlled with
the
EVAL-ADA4570SDZ Evaluation Board
sections provide instructions for installing the supporting software
and an overview for connecting the hardware to the PC.
SOFTWARE INSTALLATION PROCEDURES
Installing the EVAL-ADA4570SDZ Evaluation
Software
To install the EVAL-ADA4570SDZ evaluation software, take to the
following steps:
1. Start the Windows operating system of the PC and download
the
ADA4570 Evaluation Board Installer
2. Unzip the downloaded file. Run the setup.exe file.
3. Click the setup.exe file to begin installing the evaluation soft-
ware. The software installation window opens as shown in
Figure
8.

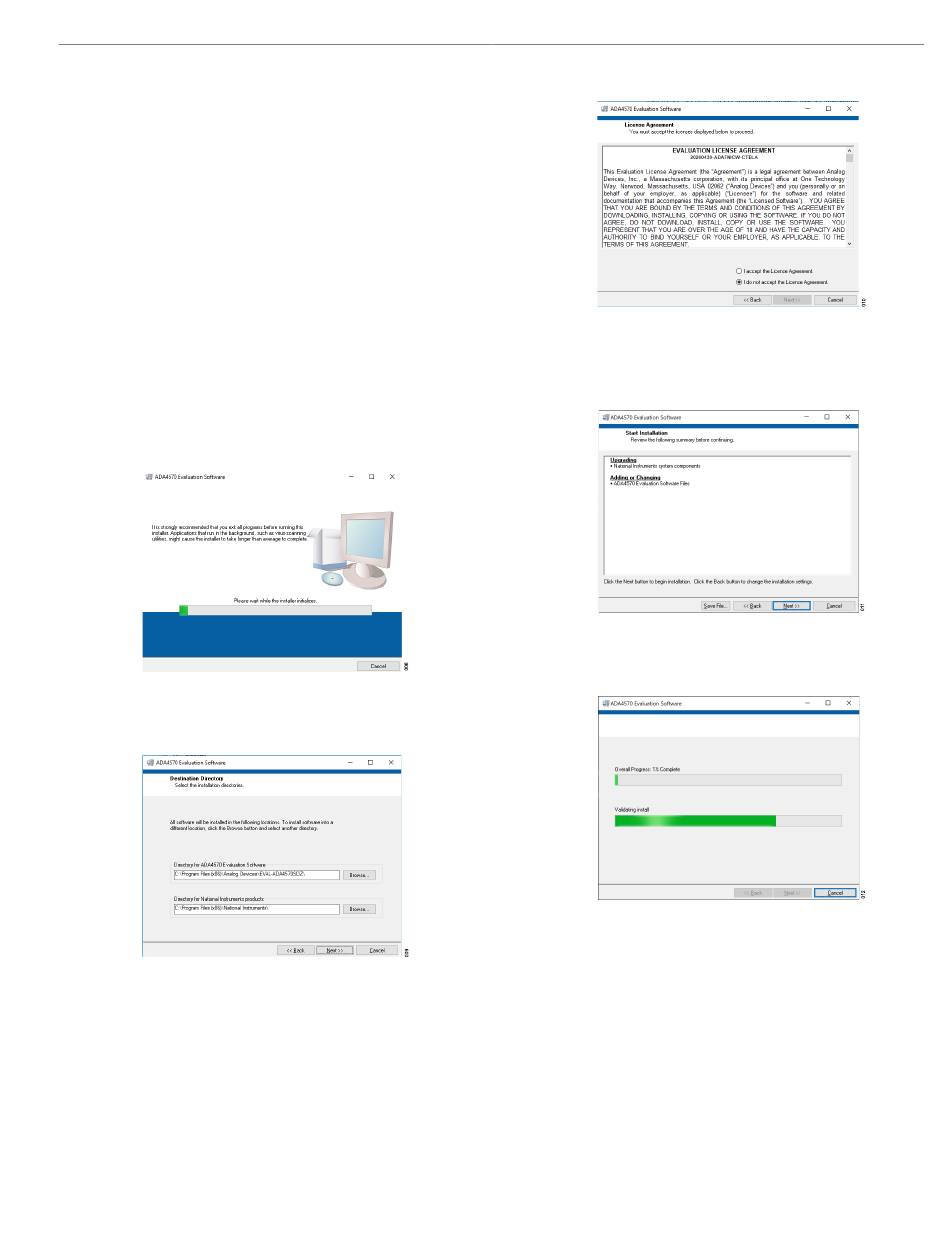

Figure 8. EVAL-ADA4570SDZ Evaluation Software Install Window
4. Choose the installation directory and click Next. The default
location is C:\Program Files (x86)\Analog Devices\.
Figure 9. Destination Directory Window
5. Installing the EVAL-ADA4570SDZ Evaluation Software re-
quires users to accept the license agreement shown in
Figure
10. Read the agreement before clicking Next to proceed.
analog.com
Software. The following
software.
Figure 10. License Agreement Window
6. The window shown in
Figure 11
software installation. Click Next to install the software listed in
the window.
Figure 11. Start Installation Window
7. A pop-up window then opens and displays a bar showing the
installation progress, as shown in
Figure 12. Overall Progress
The installation then completes, and the next step is to install the
SDP drivers.
EVAL-ADA4570
provides a summary of the
Figure
12.
