User Guide
EVALUATION BOARD QUICK START
SDP Installation
To install the SDP drivers, download the SDPDrivers.exe file from
the SDP product page (SDP-S
ing steps:
1. To initialize the installation, run the SDPDrivers.exe executable
file.
2. When the SDP drivers setup wizard appears, click Next (see
Figure 13).

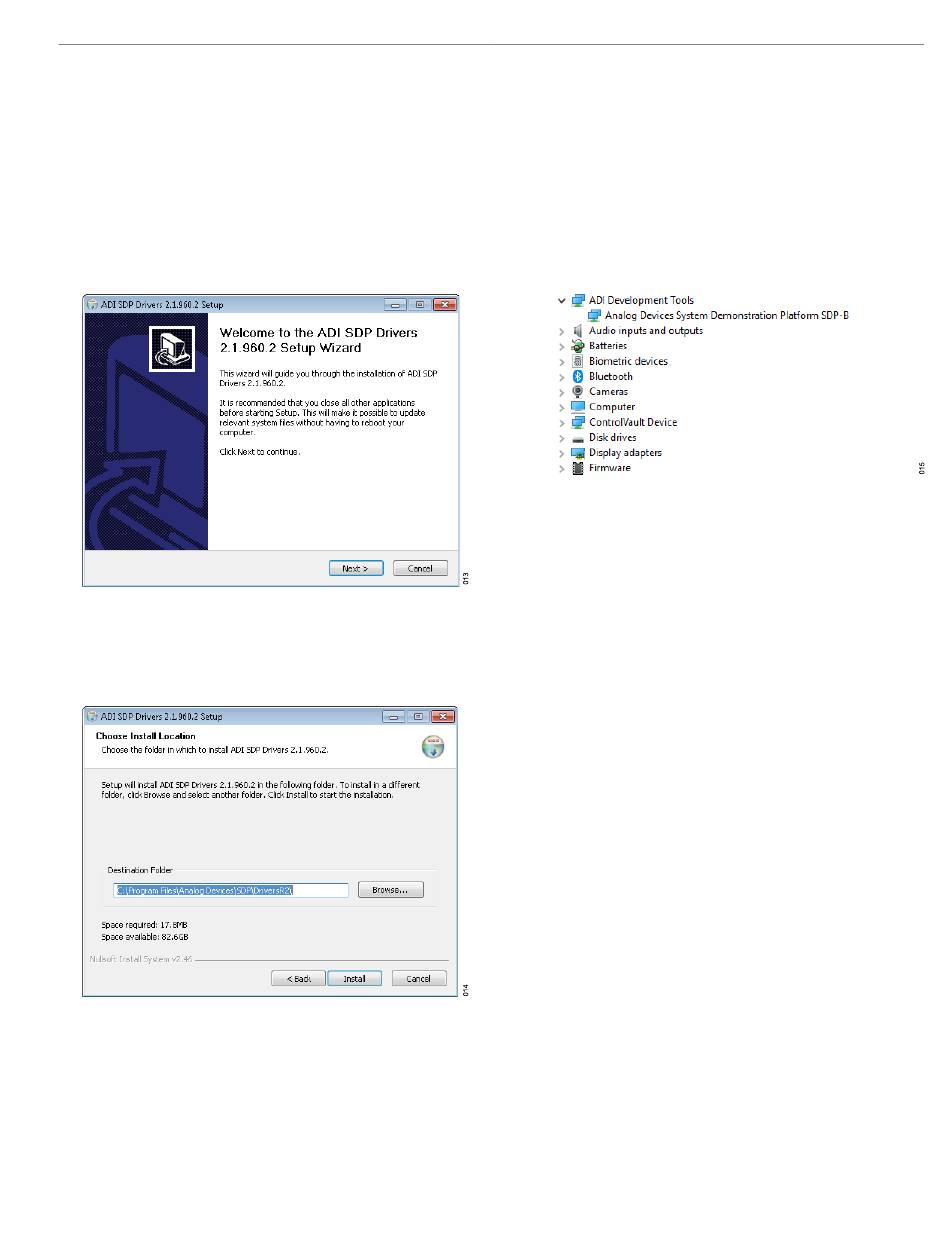

Figure 13. SDP Driver Setup Wizard
3. When the Choose Install Location window appears (see
Figure 14), click Install. To select a different destination folder,
click Browse, select a destination, then click Install.
Figure 14. Choose Install Location Window
analog.com
or SDP-B) and complete the follow-
4. Click Finish to complete the installation of the SDP drivers.
5. When plugging in the SDP controller board via the provided
USB cable, allow the Found New Hardware Wizard to run.
Check that the SDP drivers are installed and that the SDP
controller board are connected properly by checking the Device
Manager of the PC. If the drivers and board are connected
properly, the Analog Devices System Demonstration Plat-
form SDP appears under ADI Development Tools
(see Figure 15).
Figure 15. Device Manager Menu
6. The computer now recognizes the SDP controller board, and
the EVAL-ADA4570SDZ Evaluation Software can be opened.
Uninstalling the Software
To uninstall the EVAL-ADA4570SDZ Evaluation Software, take the
following steps:
1. Launch the Uninstall Wizard by navigating to Start > Control
Panel > Programs and Features > EVAL-ADA4570SDZ to
open a window with the Uninstall button.
2. Click Uninstall.
3. Click Yes in the confirmation window that appears.
To uninstall the SDP drivers, adhere to the following steps:
1. Launch the Uninstall Wizard by navigating to Start > Control
Panel > Programs and Features > ADI SDP Drivers to open
a window with the Uninstall button.
2. Click Uninstall.
3. Click Yes in the confirmation window that appears.
EVAL-ADA4570
Rev. 0 | 7 of 17
