domestic and industrial automation
Part 3.
Usage
Direct reading of the measured values and configuration of the meter can be accessed via the controls on
the front panel of the display.
Measurements displayed on the LCD screen
The LE-01MR v.2 meter allows you to display many values measured and registered by the meter. Switch-
ing to the next parameter is done by short pressing the button located on the front panel of the meter.
By default, the meter is also configured to cycle between measured values.
The list of measurements available from the LCD display is summarized in the table below.
No. Feature
1 Total active energy
2 Active energy imported
3 Active energy exported
4 Total reactive energy
5 Inductive reactive energy imported
6 Inductive reactive energy exported
7 Resettable auxiliary active energy meter
LE-01MR v.2 – User manual v.1.0.0

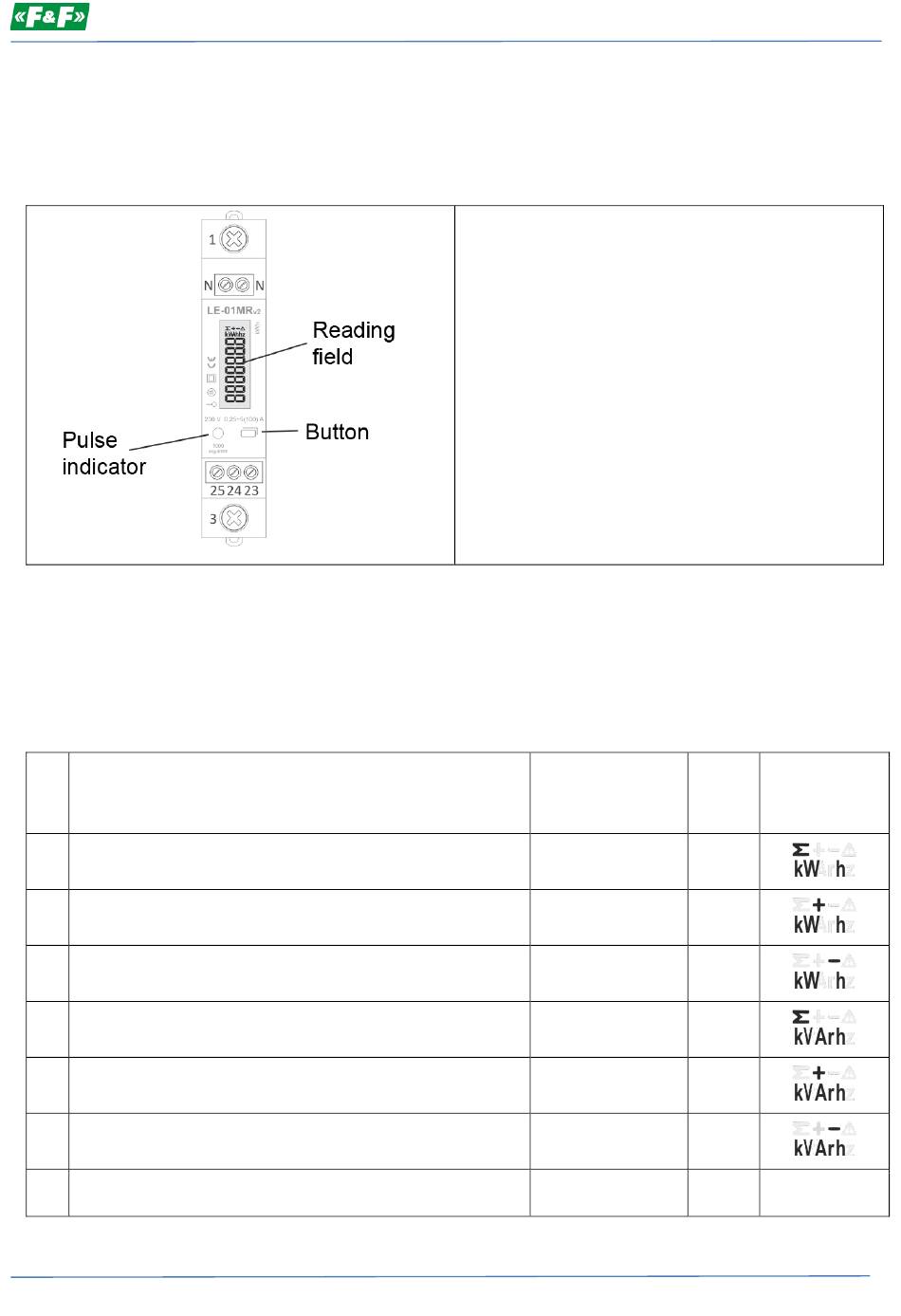

Reading field – LCD digital indicator displaying the
value of the measured parameter.
Button – touch button. A short press of the button
switches the view to the next displayed parameter.
Long press activates the meter configuration mode.
Pulse indicator – the blinks of this LED correspond
to the registered increase in active energy con-
sumption. A single blink is equivalent to the con-
sumption of 1 Wh of energy (1000 pulses = 1 kWh).
Format
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
Symbol
Unit
on screen
kWh
kWh
kWh
kvarh
kvarh
kvarh
kWh
reset /
8
