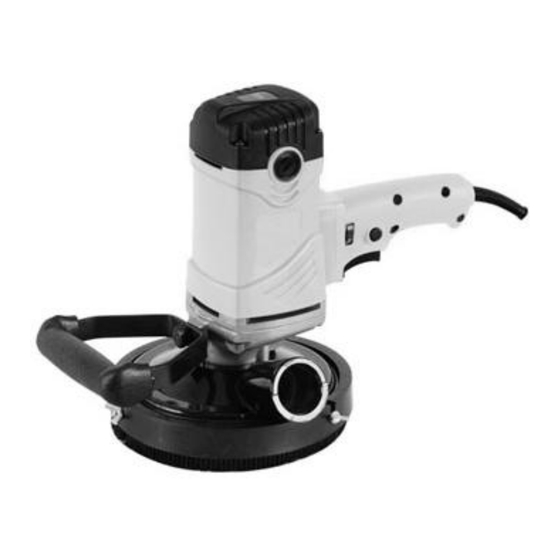

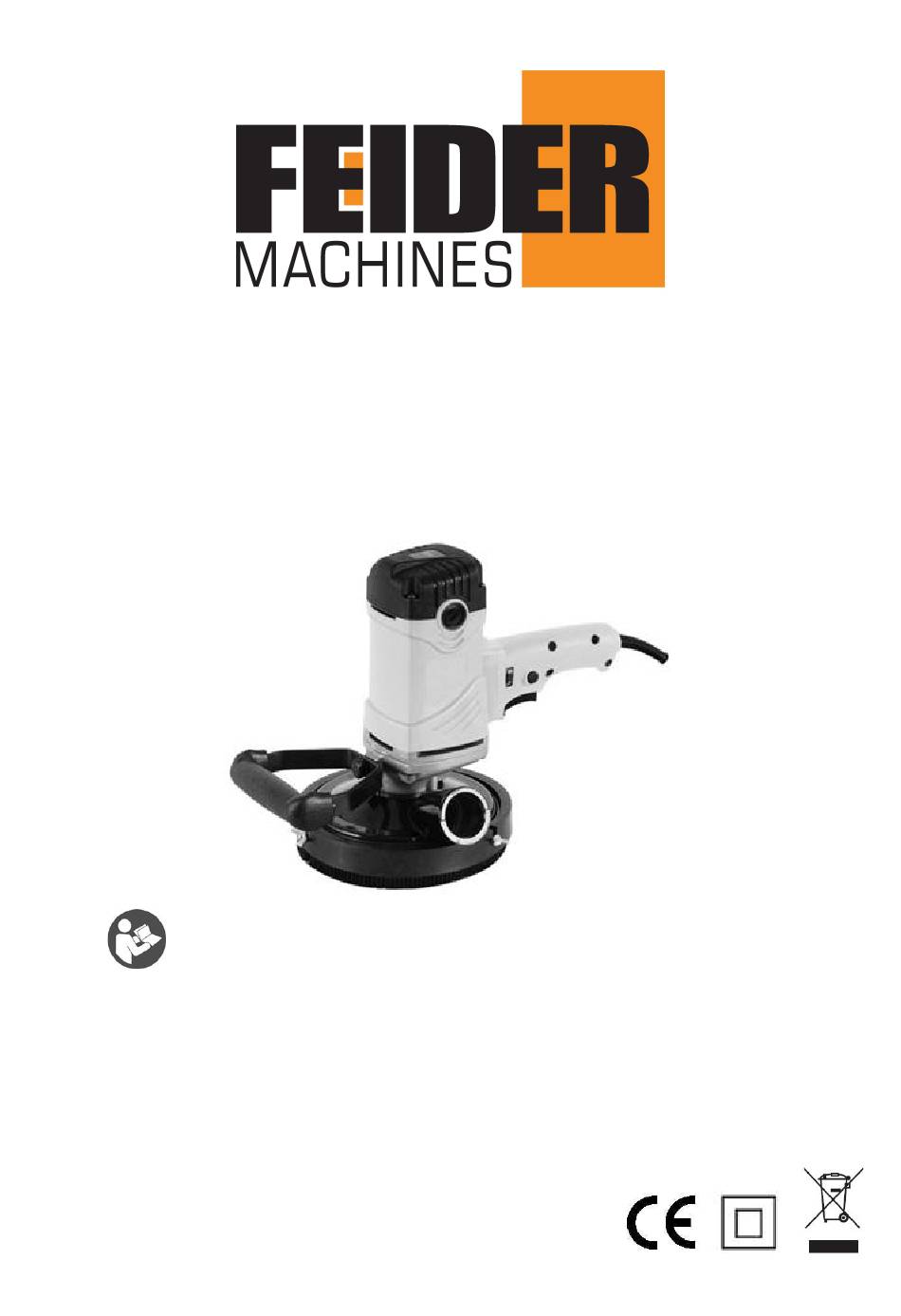

ORIGINAL INSTRUCTIONS SCOURING MACHINE FPB140-1 Instruction manual WARNING: Read the instruction manual thoroughly before using this tool and keep the manual for future use. BUILDER SAS ZI - 32, RUE ARISTIDE BERGES, 31270 CUGNAUX, FRANCE MADE IN PRC...
CONTENTS 1. SAFETY INSTRUCTIONS….…………………………………....2 2. YOUR TOOL...................8 3. OPERATING INSTRUCTIONS..............10 4. MAINTENANCE..................11 5. DISPOSAL…………………………………………………………………...13 6. DECLARATION OF CONFORMITY............14 7. WARRANTY ………………………………………………………………...15 8. PRODUCT FAILURE…………………………………………………………16 9. WARRANTY EXCLUSIONS ………………………………………………..17 1. SAFETY INSTRUCTIONS 1.1 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Page 3
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Page 4
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
Page 5
accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
Page 6
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
Page 7
e. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. 1.4 Additional safety instructions for the scouring machine Do not use the tool near explosive materials. Do not work with materials containing asbestos.
Symbols In accordance with essential applicable safety standards of European directives WARNING-To reduce the risk of injury, user must read instruction manual Always wear goggles. Do not dispose of old electronic devices in the household waste. Class II product Intended use This scouring machine is intended to be used to remove loose plaster, glue and ...
Page 9
Size 6 Allen key Size 8 Allen key Big dust exhaust adapter attachment Small dust exhaust adapter attachment Spare carbon brushes 2x Technical data Model: FPB140-1 Rated voltage 230-240V~, 50Hz Power input 1500 W Speed 2500-4500 min Max milling head diameter Φ140mm...
Wear hearing protection! The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.
Height adjustment of the anti-dust brush rim The scouring machine includes a height adjustable anti-dust brush rim. To adjust the height of the anti-dust brush rim, please proceed as follows: 1. Open the three nuts by turning them anticlockwise. Remove the nuts and the washers. 2.
Page 12
and damage parts. Use only a clean cloth to remove dirt, oil, grease and dust. If too many sparks occur, check the carbon brush. Make sure that no liquid enters the tool. If the supply cord of this power tool is damaged, it must be replaced by a specially ...
Regularly check the milling stars to make sure they move freely and, if glued or worn, dismantle them for cleaning or replace with new milling stars. Proceed as follows for assembly/disassembly : 1. Remove the three nuts from the anti-dust brush rim, then remove the rim and the depth gauge.
ZI - 32 rue Aristide Bergès - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine Scouring machine Model: FPB140-1 Serial number: 20210429732-20210430031 Has been developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC,...
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
