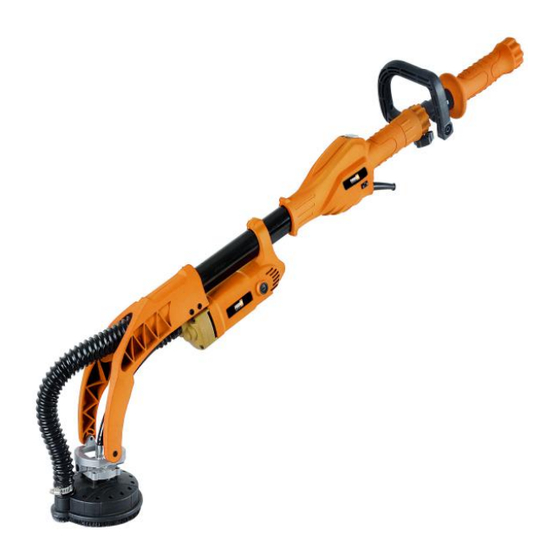

- Page 1 ORIGINAL INSTRUCTIONS>EN CONCRETE SANDER FPB1010 INSTRUCTION MANUAL WARNING: READ THE INSTRUCTION MANUAL THOROUGHLY BEFORE USING THIS TOOL AND KEEP THE MANUAL FOR FUTURE USE. BUILDER SAS ZI - 32, RUE ARISTIDE BERGES, 31270 CUGNAUX, FRANCE MADE IN PRC 2021...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS>EN CONTENTS 1. SAFETY INSTRUCTIONS….………………………………….......3 2. YOUR TOOL....................7 3. ASSEMBLY…………………………………………………..…………….…..9 4. OPERATING INSTRUCTIONS..............10 5. MAINTENANCE..................11 6. DISPOSAL…………………………………………………………………..11 7. DECLARATION OF CONFORMITY............12 8. WARRANTY....................13 9. PRODUCT FAILURE.................14 10. WARRANTY EXCLUSIONS...............15... -
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS>EN SAFETY INSTRUCTIONS 1.1 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 ORIGINAL INSTRUCTIONS>EN g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 5 ORIGINAL INSTRUCTIONS>EN bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses.
- Page 6 ORIGINAL INSTRUCTIONS>EN d. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.
-
Page 7: Your Tool
ORIGINAL INSTRUCTIONS>EN Always wear mask protection Do not dispose of old electronic devices in the household waste. Class II product Intended use This tool is specially designed for the minimum effort and maximum speed in grinding difficult to reach areas. - Page 8 ORIGINAL INSTRUCTIONS>EN Technical data Model: FPB1010 Rated voltage 230-240V~, 50Hz Power input 1010 W Speed 1700-3500 min Max diamond cup diameter Φ125mm Hexagon socket nut Net weight 4,45kg Sound pressure level LpA LpA: 88.8 dB(A) Uncertainty Kpa 3 dB(A) Sound power level LwA 99.8 dB(A)
-
Page 9: Assembly
ORIGINAL INSTRUCTIONS>EN ASSEMBLY Warning DO NOT OPERATE THIS TOOL UNTIL YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. THE MACHINE MUST BE SWITCHED OFF AND UNPLUGGED DURING ASSEMBLY Diamond wheel: 1. Unplug the machine. 2. Place the diamond wheel on the arbour and then the nut. 3. -
Page 10: Operating Instructions
ORIGINAL INSTRUCTIONS>EN OPERATION Make sure that the power circuit voltage is the same as that shown on the specification plate of the machine and that switch is “OFF” before connecting the tool to the power circuit. Switching the machine on and off To switch on: While holding with the left hand on the column and the right hand on the main handle, press the switch to the “ON”... -
Page 11: Maintenance
ORIGINAL INSTRUCTIONS>EN MAINTENANCE If the supply cord of this power tool is damaged, it must be replaced by a specially prepared supply cord available through the service organization. KEEP TOOL CLEAN. Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. -
Page 12: Declaration Of Conformity
ZI - 32 rue Aristide Bergès - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine Concrete sander Model: FPB1010 Serial number: 20210441122- 20210441421 Has been developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EC... -
Page 13: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
