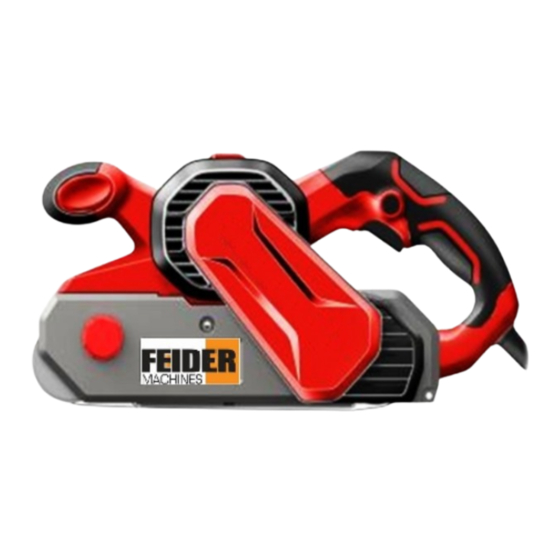

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTIONS MANUAL BELT SANDER FPB1200 WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2021...
-
Page 2: Safety Warnings
1. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 3 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 5 using this machine in addition to using the dust extraction facility. Hold the machine correctly using two hands and adopt a stable stance, make sure that the mains cable is prevented from coming into contact with the machine or getting caught up on other objects preventing completion of the sanding pass.
-
Page 6: Explanation Of Symbols
2. EXPLANATION OF SYMBOLS In this manual and/or on the machine the following symbols are may used: Read instructions carefully In accordance with essential applicable safety standards of European directives Class II machine – Double insulation – You don’t need any earthed plug. -
Page 7: Part List
3. PART LIST... - Page 8 4. Technical specification Type designation Belt Sander Rated voltage 220-240V~ 50Hz Rated power input 1200W Speed, n 0 0-480/min Sanding belt size 100 x 610mm Level of acoustic pressure L pA (K pA =3dB(A)) 92.7 dB(A) Level of acoustic power LwA (KwA=3dB(A)) 103.7 dB(A) Level of vibration ah (K=1.5m/s 5.374m/s...
-
Page 9: Assembly And Use
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Wear hearing protection. 5. ASSEMBLY AND USE Selecting the right grade of sanding belt Different grades of sanding belt can be purchased from the store where you purchased the tool. - Page 10 GRIT CHART Grit Type Example of use 60 or less Very Coarse Material removal, heavy paint removal, shaping wood 80 – 100 Coarse Paint removal, rough surface preparation (e.g. non-planed wood) 120 – 150 Medium Surface preparation planed wood 180 – 220 Fine Sanding between coats 240 or more...
- Page 11 Sanding The sander can be used for most sanding operations on materials such as wood, plastic, metal and painted surfaces. WARNING : Don’t use this machine on plaster. Wear safety goggles and dust mask. Where possible, secure smaller workpiece to prevent them from moving under the sander.
-
Page 12: Service And Maintenance
6. SERVICE & MAINTENANCE Always disconnect the device before performing any adjustment or maintenance operation. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard. Disconnect from the power supply immediately if the supply cord is damaged. Take care not to expose this tool to the rain. - Page 13 Exploded drawing...
- Page 14 7. DISPOSAL CAUTION! This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European WEEE Directive.
-
Page 15: Ec Declaration Of Conformity
EC Declaration of conformity BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Declares that the machine BELT SANDER FPB1200 Serial number: 20210500125-20210500624 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU RoHS Directive 2011/65/EU+(EU) 2015/863 Noise directive 2000/14/EC +Annex VI &... -
Page 16: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
