Summary of Contents for Feider Machines FPGAI750

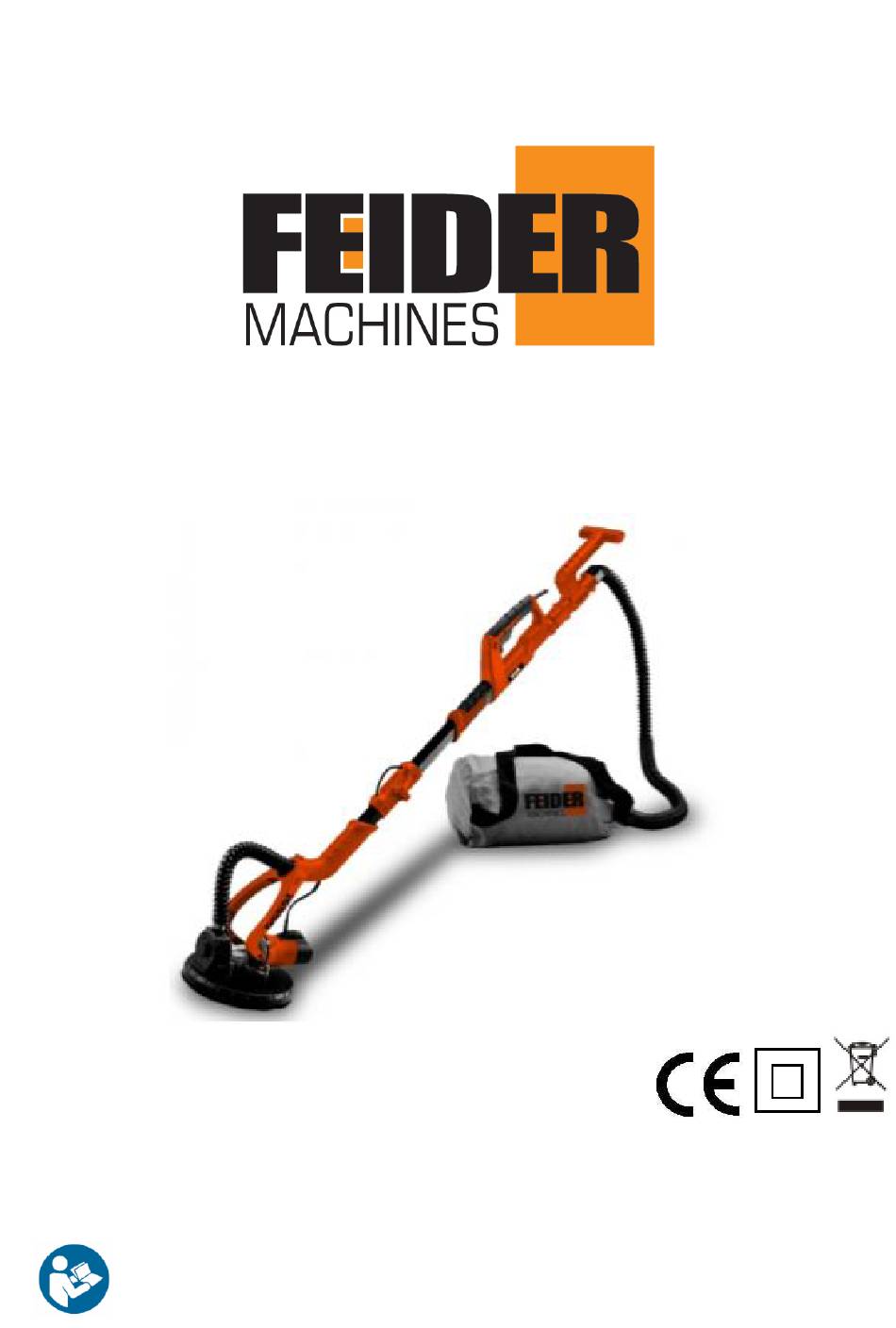

- Page 1 ORIGINAL INSTRUCTIONS Drywall Sander FPGAI750 Feider France ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France Fabriqué en RPC 2018 ATTENTION ! Merci de bien vouloir lire toutes les instructions de sécurité afin de réduire le risque de blessures...
-
Page 2: Safety Warnings
1. SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool 1) Work area a) Keep work area clean and well lit. - Page 3 power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 4 a) This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. b) Operations such as grinding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool.
- Page 5 l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
- Page 6 Safety Warnings Specific for Sanding Operations: a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. 5, Warning symbol WARNING-To reduce the risk of injury, user must read instruction manual.
-
Page 7: Your Product

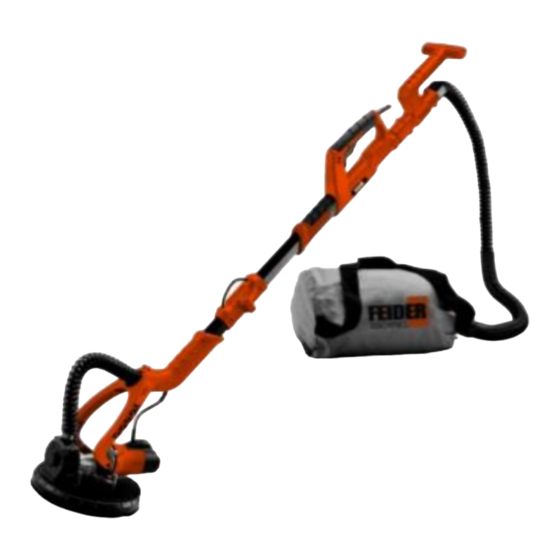

YOUR PRODUCT a. Description 5. Vacuum adapter 1. Vacuum system 6. Power cord 2. Motor 7. Speed adjuster 3. ON/OFF switch 4. Adjustable bar b. Technical data - Voltage supply： 230-240V~ - Power： 750W - Frequency 50Hz - Speed: 1000-1850/min - Protection class: - Disc Diameter：... - Page 8 Wear hearing protection. OPERATING INSTRUCTIONS The Drywall Sander is designed for sanding walls and ceilings made of drywall or plaster. The Sander provides superior finish and is faster than conventional finishing methods for both new construction and renovation work. Clean-up time is minimized by using an external dust bag attached to the Sander.
-
Page 9: Installation
HOW TO HOLD A DRYWALL SANDER The Drywall Sander should be held with both hands on the main tube. The hands may be placed anywhere along the main tube for best application. CAUTION: Keep the hands on the main tube. Do not place the hands in the area around the sanding head. - Page 10 Insert the telescopic pipe into the front pipe, adjust to the desired length, turn the locking nut into the front plastic pipe and lock.) STARTING AND STOPPING THE DRYWALL SANDER Make sure power circuit voltage is the same as shown on the specification plate on the Sander, and that the Sander switch is OFF.
- Page 11 HANDLE EXTENSION ASSEMBLY Depending on the different grinding positions, the length of the machine can be adjusted between 1100-1800mm. Turn the lock nut counter clockwise to loosen, pull the hose to the correct length and then turn the lock nut clockwise to lock. SANDING OF GYPSUM JOINTS The Drywall Sander has a special sanding head: the head can rotate in multiple directions, allowing the abrasive pad to adjust to the work surface.
- Page 12 surface. The sander must always be in motion when the abrasive pad is in contact with the working surface. Use a steady, sweeping motion. Stopping the Sander (on the working surface), or moving the sander may cause unacceptable micro scratches and affect the uniformity of the working surface. NOTE: Do not allow the rotating abrasive pad coming in contact with sharp protrusions.
- Page 13 A large brush surrounds the abrasive pad. It serves two purposes: (1) It extends below the surface of the abrasive pad so that it’s in contact with the work surface first. This positions the sanding head parallel to the work surface before the abrasive comes into contact with the working surface, preventing the abrasive from causing scratches.
-
Page 14: Maintenance
MAINTENANCE Tools should always be clean, clean up debris and dust. Always change the oil (gearbox, bearings) for proper operation. Always check the power cord, plugs, switches to make sure the tools are faultless. The power tools manufactured by the company undergo a strict quality inspection. If the machine is faulty, please consult the authorized service centre (SWAP) for repair. -
Page 15: Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 States that the designated below machine: Product: Drywall sander Model: FPGAI750 Serial number: Developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EC...
