4.3 DMX-512 connection
The fixture is equipped with 5-pin XLR sockets for DMX input and output.
Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR plugs and connectors in order to
connect the controller with the fixture or one fixture with another.
To keep declared IP rating of the XLR panel connectors, all used XLR connectors and cables have to
meet IP 65 rating.
DMX - output
XLR sockets (rear view):
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected

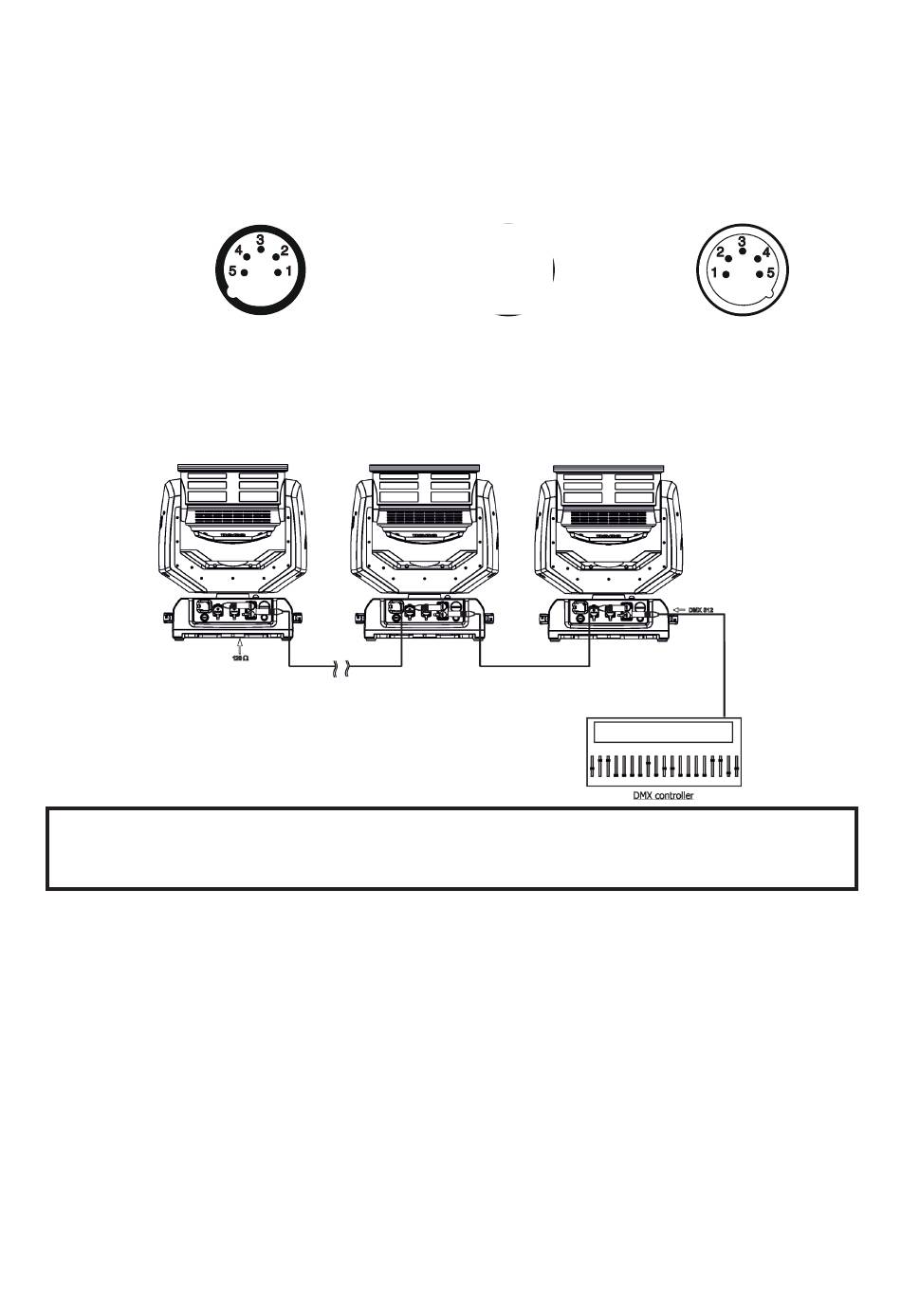

Building a serial DMX chain:
Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture. Always connect
one output with the input of the next fixture until all fixtures are connected. Up to 32 fixtures can be connected.
Caution: At the last fixture, the DMX cable has to be terminated with a terminator. Solder a 120
between Signal (–) and Signal (+) into 5-pin XLR plug and plug it into DMX output of the last fixture.
The Robin iSpiider´s panel connectors are dust and water protected according to IP 65
by mating with related cable connectors. They cannot stay disconnected outdoor.
All unused panel connectors have to be sealed by the rubber caps.
DMX-input
XLR plugs (rear view):
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected
11
Ω
resistor
