Fixture Exterior View - Robe iSpiider User Manual

The head has to be locked for transportation - the pan lock latch (5) and the tilt lock latch (6) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the fixture.
The ENTER/DISPLAY ON button also serves for switching the display on when the fixture is disconnected
from the mains.

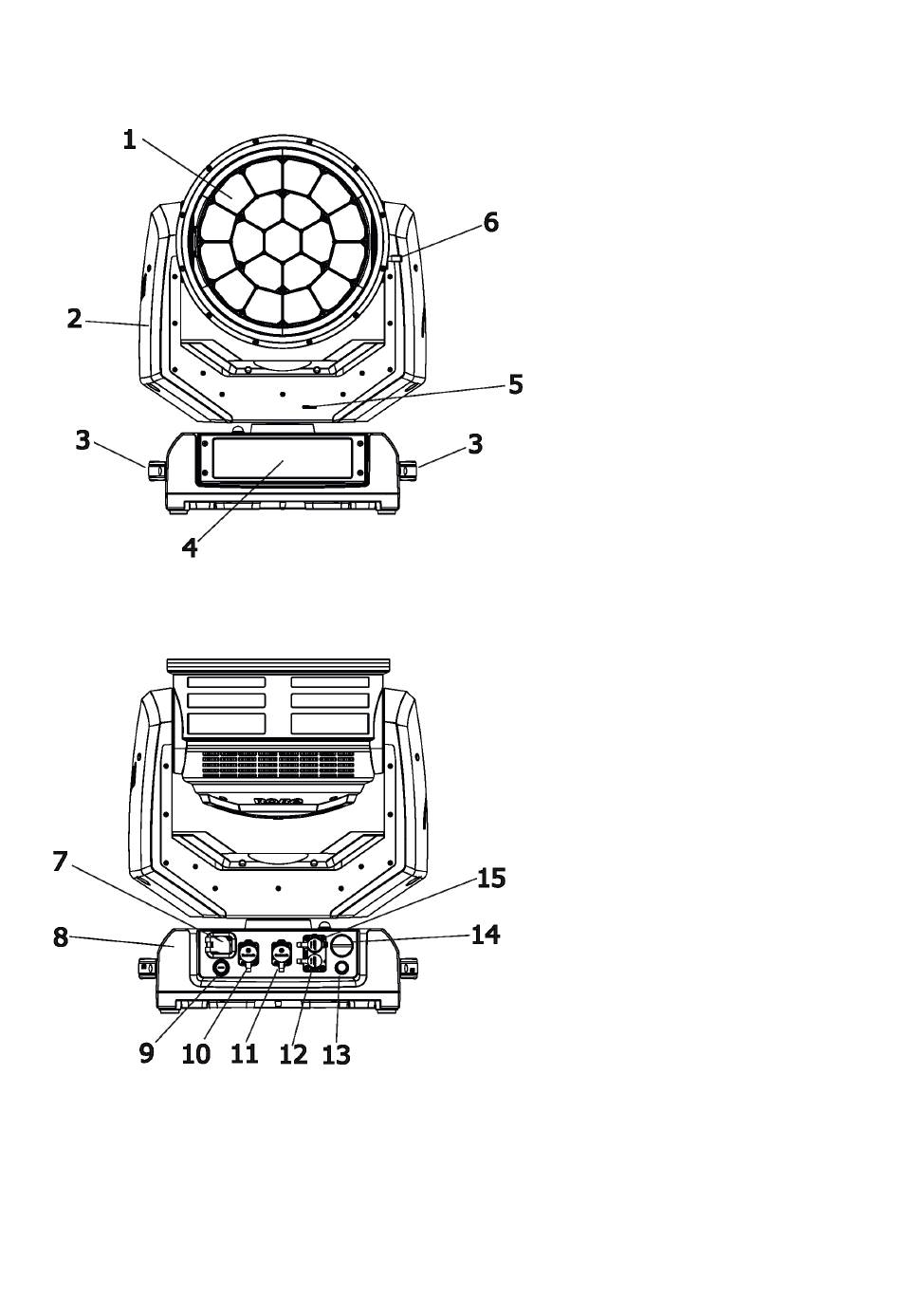

3. Fixture exterior view

6
1 - Lens array
2 - Yoke
3 - Handle
4 - Control panel
5 - Pan lock
6 - Tilt lock
7 - Power (Neutrik TrueOne)
8 - Base
9 - Cover of fuse holde
10 - Ethernet IN
11 - Ethernet OUT
12- 5-pin DMX IN
13- Gore valve
14- Cover of battery holder
15- 5-pin DMX OUT
