15.1 Torques for watertight covers

Keep values of torques as stated on pictures below otherwise leakage

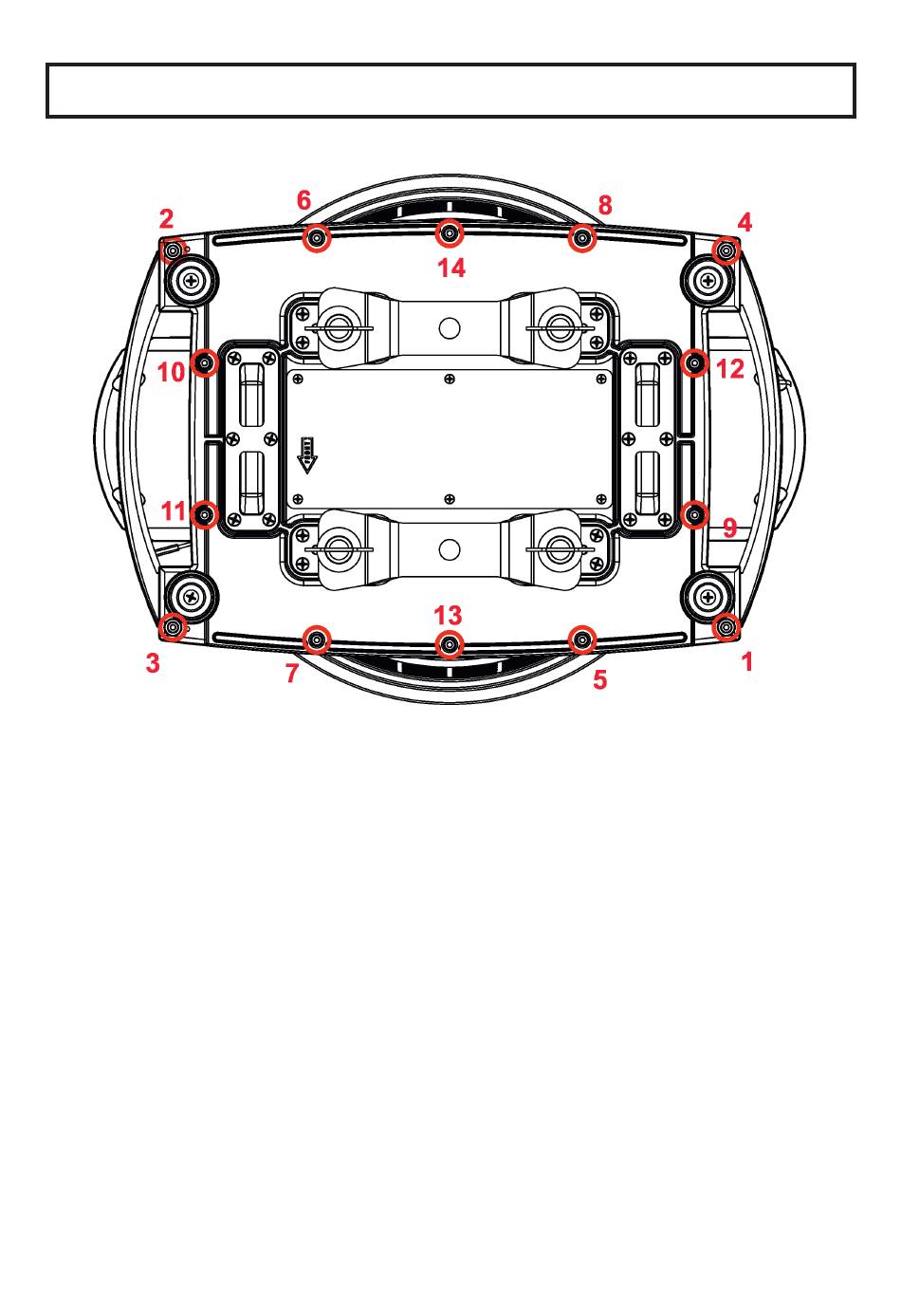

Bottom base cover
Screws* must be tightened
in the order 1-->14.
* Tighten all screws in two steps:
Step 1 - use tightening torque 0.5 Nm (pre-tightening)
Step 2- use tightening torque 2.2-2.5 Nm (final tightening)
Carefully check the gasket for signs of deformities or damages and if it is correctly placed before screwing
the bottom base cover back. The gasket is part of base.
Do not forget to connect grounding wire between chassis and base cover.
issues can occur.
43
14 x hex socket head screw M4x16
14x Spring washer
Tightening torque: 2.2-2.5 Nm
