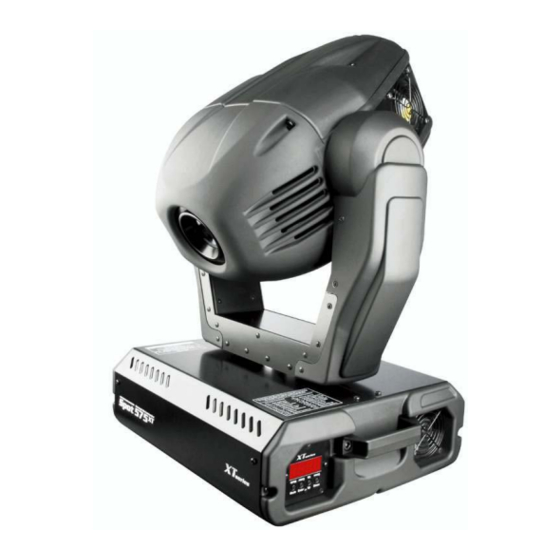

Robe Spot 575 XT User Manual

Moving yoke luminaire xt series
Hide thumbs Also See for Spot 575 XT:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
vent production and Audio-Visual Services
courtesy of
Phone: 0870 080 2342
www.sxsevents.co.uk
email: enquiries@sxsevents.co.uk
www.sxsevents.co.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spot 575 XT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robe Spot 575 XT

Summary of Contents for Robe Spot 575 XT

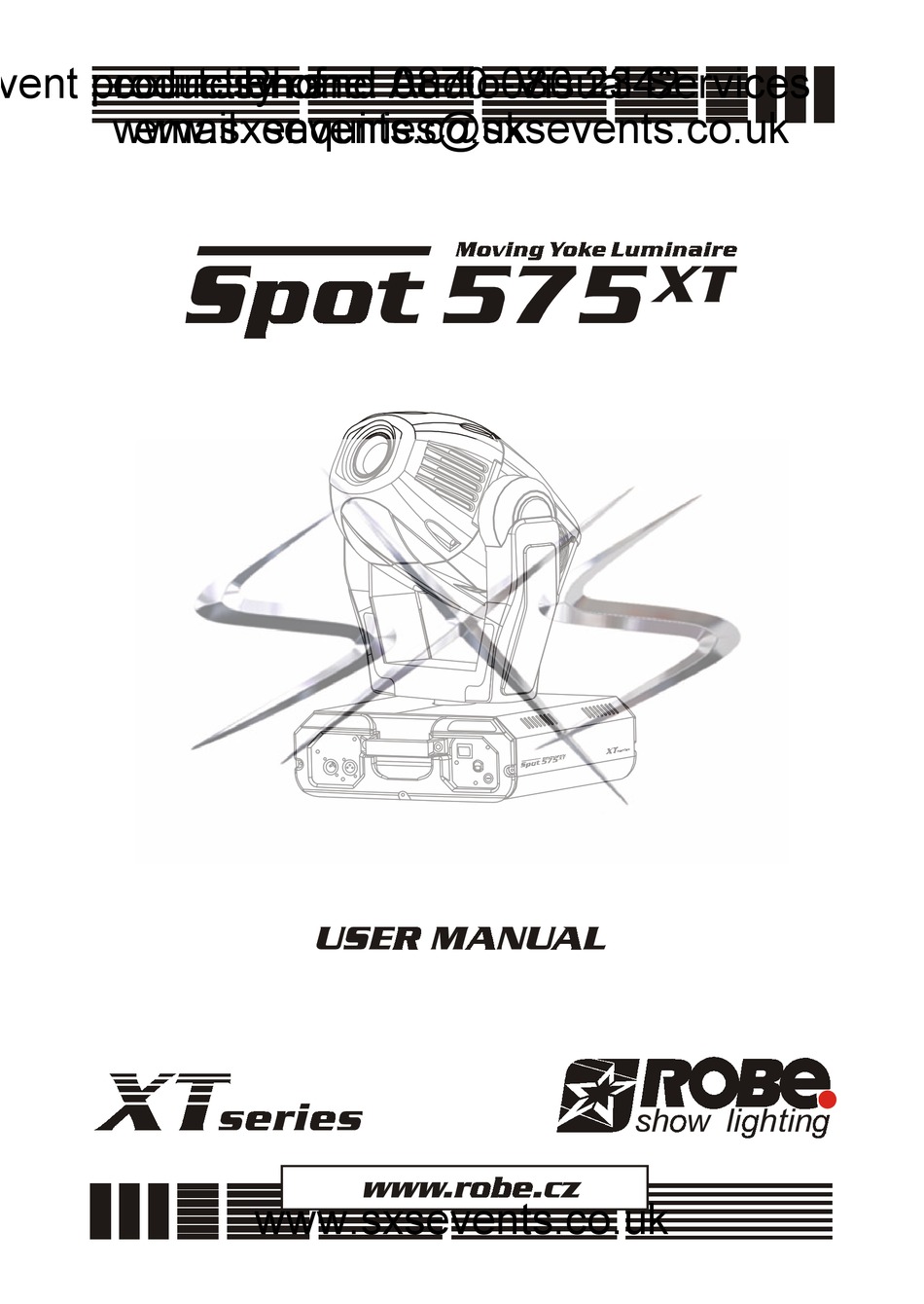

  • Page 1 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 www.sxsevents.co.uk email: enquiries@sxsevents.co.uk www.sxsevents.co.uk...

  • Page 2: Table Of Contents

    Audio-Visual Services courtesy of Phone: 0870 080 2342 www.sxsevents.co.uk email: enquiries@sxsevents.co.uk SPOT 575 XT Table of contents 1. Safety instructions ......................3 2.Operating determinations ....................4 3. Description of the device ....................5 4. Installation ........................6 4.1Fitting the lamp ......................

  • Page 3: Safety Instructions

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 CAUTION! Keep this device away from rain and moisture! www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Unplug mains lead before opening the housing! FORYOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFOREYOU INITIAL START - UP! 1.

  • Page 4: Operating Determinations

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 2.Operating determinations www.sxsevents.co.uk email: enquiries@sxsevents.co.uk This device is a moving-head spot for creating decorative effects and was designed for indoor use only. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately.

  • Page 5: Description Of The Device

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 3. Description of the device www.sxsevents.co.uk email: enquiries@sxsevents.co.uk 1 - Moving head 2 - Yoke 3 - Carry handles 4 - Base Rear panel: 5 - Power switch 6 - DMX output 7 - DMX input 8 - Power cord 9 - Fuse holder...

  • Page 6: Installation

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 4. Installation www.sxsevents.co.uk email: enquiries@sxsevents.co.uk 4.1Fitting the lamp DANGER ! Install the lamps with the device switched off only. Unplug from mains before ! To insert the lamp MSR 575/2 95V/575W GX-9,5 loosen the lamp cover at the rear of head (see the drawings ) by remowing the 3 fastening screws which are marked "X,Y,Z".Carefully pull out the cover with the lamp socket assembly.If changing the lamp, remove the old lamp from the socket.

  • Page 7: Lamp Adjustment

    3 adjustment screws "A,B,C" The SPOT 575 XT lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp,open the shutter and the iris,set the dimmer intensity onto 100% and focus the light on a flat surface (wall).Center a hot-spot(the brightest part of the image) by using the 3 adjustment screws "A,B,C".Turn...

  • Page 8: Rigging The Fixture

    Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure. The SPOT 575 XT can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).

  • Page 9: Connection To The Mains

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 4.5 Connection to the mains www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Verify the power supply settings before applying power! If you wish to change the power supply settings,see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. The earth has to be connected! The occupation of the connection-cables is as follows: Cable (EU)

  • Page 10: Dmx Protocol

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 5. DMX PROTOCOL www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Mode 1 Mode 2 8 bit Value Function Type of control channel channel channel 0-255 Pan movement by 530° proportional Tilt 0-255 Tilt movement by 280° proportional Pan fine 0-255...
  • Page 11 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Mode 1 Mode 2 8 bit Value Function Type of control www.sxsevents.co.uk email: enquiries@sxsevents.co.uk channel channel channel 120-127 White step 128-255 Enable macro color function on channel 7 step 3-facet prism rotatin control,Prism macros Open position (no prism) step...
  • Page 12 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Mode 1 Mode 2 8 bit Value Function Type of control channel channel channel www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Rotating gobo index,rotating gobo rotation 0-127 Gobo indexing proportional 128-190 Forwards gobo rotation from fast to slow proportional 191-192 No rotation step...

  • Page 13: Controller Mode

    The SPOT 575 XT is to be operated with a Philips MSD 575,MSR 575/2 or Osram HSR 575/2 lamp. A relay inside of the SPOT 575 XT allows you to switch on and off the lamp via the control panel or via your DMX- controller without affecting the rest of the lighting.

  • Page 14: Stand - Alone Mode

    Fans The SPOT 575 XT is cooled by three axial fans - two in the projector head and one in the base. The speed of the fan (and of course the noise) can be continuously reduced if very quiet performance is required.

  • Page 15: Functions Of The Control Panel

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 8. Functions of the control panel www.sxsevents.co.uk email: enquiries@sxsevents.co.uk The control panel situated on the front side of the base offers several features. You can simply set the DMX address,master/slave mode, read the number of lamp or unit hours, switch On and Off the lamp, run test, make a reset and also use many functions for setting and service purposes.

  • Page 16: Slave Control

    Press [Up] and [Down] buttons to select the desired option and press [Enter] to see the value or next submenu. Power On time -By this option you can read the total number of the operation hours since the www.sxsevents.co.uk SPOT 575 XT has been fabricated. Press [Enter] or [Mode] to return to the menu.
  • Page 17 Audio-Visual Services courtesy of Phone: 0870 080 2342 - The number of the hours that the SPOT 575 XT has been powered On since the www.sxsevents.co.uk email: enquiries@sxsevents.co.uk counter was last reset.Press [Enter] or [Mode] to return to the menu.In order to reset this counter to 0, you have to hold the [Up] and [Down]-button and press the [Enter]- button.

  • Page 18: Personality Options

    [Mode] to return to the menu. 8.4 Personality options These options allow you to modify SPOT 575 XT operating behavior. Press [Up] and [Down] buttons to select the desired option and press [Enter] to set the value or to see next submenu.
  • Page 19 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 List of the channel settings: www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Channel Mode 1-16bit (default) Mode 2-16bit 8 bit Tilt Fine Pan Tilt Fine Pan Tilt Pan/Tilt speed Fine Tilt Fine Tilt Fans,Lamp On/Off Pan/Tilt speed Pan/Tilt speed...
  • Page 20 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Lamp Off if DMX is missing www.sxsevents.co.uk email: enquiries@sxsevents.co.uk This function allows you to switch Off the lamp automatically after 2 minutes if DMX signal is missing on the data link. Use the [Up] and [Down] buttons to select "On" if you want to switch Off the lamp or "Off"...
  • Page 21 The fans keep the adjusted low speed until the temperature exceeds max. inside temperature of the fixture, then the SPOT 575 XT automatically switches from low to high the fan speed. Note:The modes "Auto" and "HIGH" don´t interact to the DMX value on the channel 6 (0-127)!

  • Page 22: Switching On/Off The Lamp

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Default settings www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Press [Enter] to reset all fixture personalities (not the adjusting functions) to the default values. On the display will appear "rSt" meaning that the fixture makes the reset. See the table of personality setting and their default positions.

  • Page 23: Test Sequences

    This function allows you to run a special demo-test sequences without an external controller, which will show you some possibilities of using SPOT 575 XT. Press [Up] and [Down] keys to select the "Mod1" or "Mod2" sequences. The "Mod1" is suitable for projections on the wall, ceiling or ground without any head-movement, the "Mod2"...
  • Page 24 (playing is forced by the master). Editing program This menu item allows you to select a program to edit or create.The SPOT 575 XT has one built-in program ("tESt") and the 3 free programs,each up to 99 steps.

  • Page 25: Reset Function

    8.8 Reset function Press [Enter] button to run a reset. This option enables the SPOT 575 XT to index all effects (functions) and return to their standard positions. 8.9 Special functions Use the [Up] and [Down] buttons to browse through the special functions and select the one by pressing [Enter].
  • Page 26 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Fixture code The option contains identification code (1-9999) for the fixture, which is used for the master/slave operation. Adjusting the default positions of the colour and gobo-wheels By this function you can calibrate and adjust the colour and gobo wheels to their standard/right positions.

  • Page 27: Error And Information Messages

    This message appears if you try to switch on the lamp within 5 minutes after having switched it off (the lamp is too hot). The message will appear on the display if the lamp doesn't ignite within 28 seconds. The SPOT 575 XT will store this information and automatically ignite the lamp when the 5 minutes period has expired.
  • Page 28 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 The message informs you that the fixture was overheating and switched off. This message will appear on the www.sxsevents.co.uk email: enquiries@sxsevents.co.uk display if the fan speed operating "LOOF" was selected. MbEr This messsage informs you that the main PCB does not communicate correctly with the Control Board.

  • Page 29: Technical Specifications

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 10. Technical specifications www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Power supply: EU-model: Voltage:......208/230/240V AC, 50/60Hz ~ Fuse:.......T 6.3A@230V US-model: Voltage:......100/120/208/230V AC, 50/60Hz ~ Fuse:........T 10A@120V Power consumption:..900 VA Lamp: Philips MSR 575/2 95V/575W GX-9,5 Optical System: - High luminous-efficiency parabolic reflector - focus lens and multistep zoom lenses system...
  • Page 30 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Static gobos: - 9 metal gobos plus an open position,outside diameter=26.9mm,image diameter=22.5mm www.sxsevents.co.uk email: enquiries@sxsevents.co.uk aluminium,thickness=0.5mm Rotating gobos: - 6 interchanged gobos plus an open position:3 metal gobos, 1 glass gobo and 2 dichroic gobos rotating in both directions at different speeds - Gobo indexing - Rotating gobo-wheel cont.
  • Page 31 vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 Static gobos Static gobos Rot.gobo rotation Rotating gobos Rotating gobos Iris www.sxsevents.co.uk email: enquiries@sxsevents.co.uk Rot.gobo rotation Rot.gobo rotation Focus,Zoom Iris Iris Shutter,Strobe Focus,Zoom Focus,Zoom Dimmer Shutter, strobe Shutter, strobe Dimmer Dimmer Pan/Tilt...

  • Page 32: Maintenance And Cleaning

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 11. Maintenance and cleaning www.sxsevents.co.uk email: enquiries@sxsevents.co.uk It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.

  • Page 33: Appendix

    vent production and Audio-Visual Services courtesy of Phone: 0870 080 2342 12. Appendix www.sxsevents.co.uk email: enquiries@sxsevents.co.uk 12.1 Changing the power supply settings Both the transformer and the ballast must be connected correctly for the local AC voltage and frequency. The wrong settings can cause poor performance or demage of the moving head.The factory settings are printed next to the power switch.
